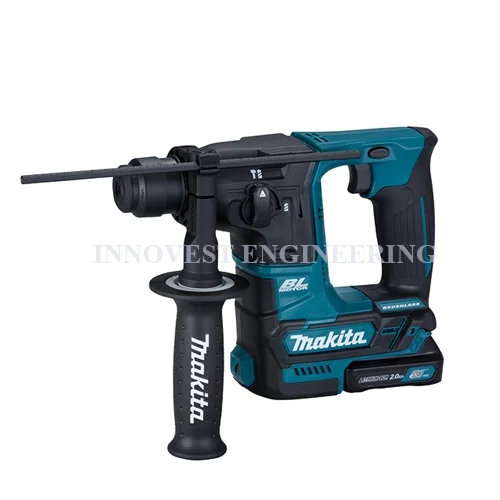

Makita Makita HR166DSMJ/WAE1/WAJ/Z 12Vmax Cordless Rotary Hammer - Image 1

Makita HR166DSMJ/WAE1/WAJ/Z 12Vmax Cordless Rotary Hammer

SKU:

Makita HR166DWAJ 12Vmax Cordless Rotary Hammer
Makita logo

Brand: Makita

Category: MachineryPower ToolsCordless

<div class="wpb_text_column wpb_content_element ...

Contact us for pricing

This product requires a custom quote

In Stock

powertools-type

Quantity

Description
  • Vibration absorbing housing and ergonomic soft rubber grip design for vibration absorption and comfortable operation
  • Close-to-hand gravity center for optimum balance and control
  • Built-in LED light with afterglow function illuminates the work area
  • 2-Mode operation for “Rotation Only” or “Hammering with Rotation” for multiple applications
  • Variable speed trigger allows operator to adjust speed based on materials or application
Impact EnergyEPTA-Procedure 05/2009: 1.1 J
CapacityConcrete: 16 mm (5/8″)
Steel: 10 mm (3/8″)
Wood: 13 mm (1/2″)
Impacts Per Minute (IPM)0 – 4,800
No Load Speed (RPM)0 – 680
Dimensions (L x W x H)BL1021B: 250 x 74 x 187 mm (9-7/8″ x 2-15/16″ x 7-3/8″)
Net Weight1.8 – 2.4 kg (4.1 – 5.4 lbs.)
Work Amount42 holes with BL1021B
Mansory Drill Ø6 mm
Concrete 40N/ mm2 Depth 40 mm

Standard equipment:

  • Side Grip, Depth Gauge

Available options:

  • SMJ: 1x Speed Charger, 2x 4.0Ah Battery, 1x Makpac Connector Box
  • WAE1: 1x Standard Charger, 2x 2.0Ah Battery, Accessories Bit Set
  • WAJ: 1x Standard Charger, 2x 2.0Ah Battery, 1x Makpac Connector Box
  • Z: Without Charger, Battery & Carrying Case

Additional Information

Length

35 cm

Width

22 cm

Height

15 cm

Weight

2.6 kg


Specifications
Technical Specifications

Impact energy

2.0 J J

Shank type

SDS-PLUS

  • Vibration absorbing housing and ergonomic soft rubber grip design for vibration absorption and comfortable operation
  • Close-to-hand gravity center for optimum balance and control
  • Built-in LED light with afterglow function illuminates the work area
  • 2-Mode operation for “Rotation Only” or “Hammering with Rotation” for multiple applications
  • Variable speed trigger allows operator to adjust speed based on materials or application
Impact EnergyEPTA-Procedure 05/2009: 1.1 J
CapacityConcrete: 16 mm (5/8″)
Steel: 10 mm (3/8″)
Wood: 13 mm (1/2″)
Impacts Per Minute (IPM)0 – 4,800
No Load Speed (RPM)0 – 680
Dimensions (L x W x H)BL1021B: 250 x 74 x 187 mm (9-7/8″ x 2-15/16″ x 7-3/8″)
Net Weight1.8 – 2.4 kg (4.1 – 5.4 lbs.)
Work Amount42 holes with BL1021B
Mansory Drill Ø6 mm
Concrete 40N/ mm2 Depth 40 mm

Standard equipment:

  • Side Grip, Depth Gauge

Available options:

  • SMJ: 1x Speed Charger, 2x 4.0Ah Battery, 1x Makpac Connector Box
  • WAE1: 1x Standard Charger, 2x 2.0Ah Battery, Accessories Bit Set
  • WAJ: 1x Standard Charger, 2x 2.0Ah Battery, 1x Makpac Connector Box
  • Z: Without Charger, Battery & Carrying Case
