Hydrarite HHLS Series Hydraulic Bolt Tensioner
SKU:
Brand: Hydrarite
Category: Hydraulic Tools › Bolting Tools › Bolting Tightening
Tags: Hydraulic, Hydrarite, Bolting Tightening
Hydrarite HHLS Series Two-Stage Hydraulic Bolt Tensioner Designed for wind-turbine and structural bolt tensioning up to 1500 bar, the HHLS-TT36/TT42/TT48 two-stage tensioners axially stret...
Contact us for pricing
This product requires a custom quote
Thread Size
Load Capacity (kN)
Closed Height (mm)
Stroke (mm)
Quantity
Description
Hydrarite HHLS Series Two-Stage Hydraulic Bolt Tensioner
Designed for wind-turbine and structural bolt tensioning up to 1500 bar, the HHLS-TT36/TT42/TT48 two-stage tensioners axially stretch the bolt to apply preload without the friction losses inherent in torque tightening, allowing multiple studs to be tensioned simultaneously and uniformly via a shared pump. Powered by an ultra-high-pressure hand pump (HHB-180/HHB-280, 2000 bar) or an electric tensioner pump.
Additional Information
Length
10 cm
Width
10 cm
Height
5 cm
Weight
0.2 kg

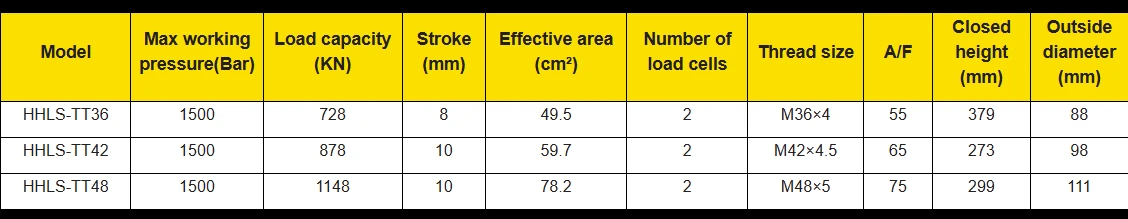

Specifications
Max Working Pressure (bar)
1500
Hydrarite HHLS Series Two-Stage Hydraulic Bolt Tensioner
Designed for wind-turbine and structural bolt tensioning up to 1500 bar, the HHLS-TT36/TT42/TT48 two-stage tensioners axially stretch the bolt to apply preload without the friction losses inherent in torque tightening, allowing multiple studs to be tensioned simultaneously and uniformly via a shared pump. Powered by an ultra-high-pressure hand pump (HHB-180/HHB-280, 2000 bar) or an electric tensioner pump.
