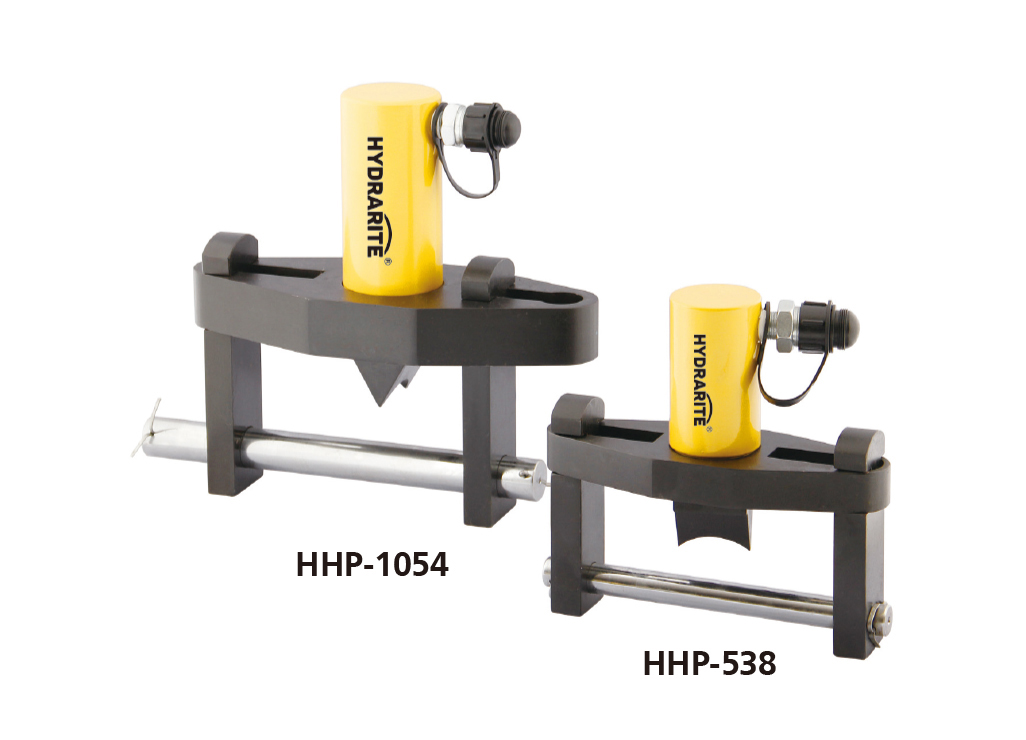

Hydrarite HHP Series Hydraulic Flange Spreader
SKU:
Brand: Hydrarite
Category: Hydraulic Tools › Bolting Tools › Flange Spreaders
Hydrarite HHP Series Hydraulic Flange Spreader The Hydrarite HHQP series is the ideal solution for expanding narrow pipe joints, gasket replacements, or pipeline maintenance. Providing smo...
RM350.00
Price range: RM350.00 - RM680.00
Spreading Capacity (Tons)
Max Spread (mm)
Stroke (mm)
Quantity
Description
Hydrarite HHP Series Hydraulic Flange Spreader

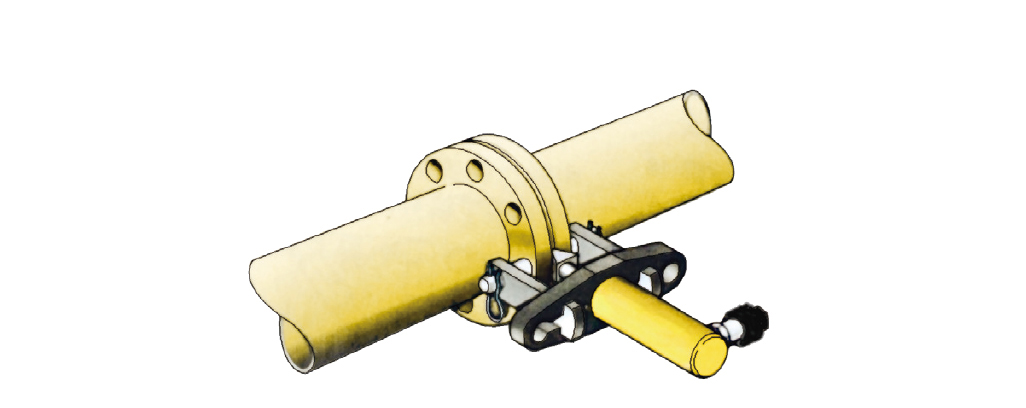

The Hydrarite HHQP series is the ideal solution for expanding narrow pipe joints, gasket replacements, or pipeline maintenance. Providing smooth, parallel expansion force, these tools avoid damage to critical flange sealing surfaces, eliminating manual hammer-and-wedge hazards.
Additional Details
Operation & Performance Specs:
- Wedge design requires only a tiny clearance gap of 6mm to slip in.
- Delivers clean, uniform mechanical spread up to 81mm.
- Avoids damaging flange joint face threads and bolt holes during separation.
- Includes step blocks to safely lock pipeline gaps open while operations are being conducted.
Additional Information
Length
10 cm
Width
10 cm
Height
5 cm
Weight
0.2 kg
Specifications
No Specifications Available
Technical specifications have not been added yet.
Hydrarite HHP Series Hydraulic Flange Spreader
The Hydrarite HHQP series is the ideal solution for expanding narrow pipe joints, gasket replacements, or pipeline maintenance. Providing smooth, parallel expansion force, these tools avoid damage to critical flange sealing surfaces, eliminating manual hammer-and-wedge hazards.
Additional Details
Operation & Performance Specs:
- Wedge design requires only a tiny clearance gap of 6mm to slip in.
- Delivers clean, uniform mechanical spread up to 81mm.
- Avoids damaging flange joint face threads and bolt holes during separation.
- Includes step blocks to safely lock pipeline gaps open while operations are being conducted.
