Hydrarite HE4TW / HC4TW / HA5TW Series Torque Wrench Pump
Share productSKU:
Click to copyHydrarite Electric & Air-Powered Torque Wrench Pumps The electric HE4TW/HE4TW-2/HE5TW/HE5TW-2 and HC4TW pumps, plus the air-driven HA5TW, power Hydrarite hydraulic torque wrenches to 7...
Contact us for pricing
This product requires a custom quote
In Stock
Motor Power (kW)
Weight (kg)
Coupler Sets
Flow Rate (L/min)
Quantity
Add to wishlist
Description
Hydrarite Electric & Air-Powered Torque Wrench Pumps

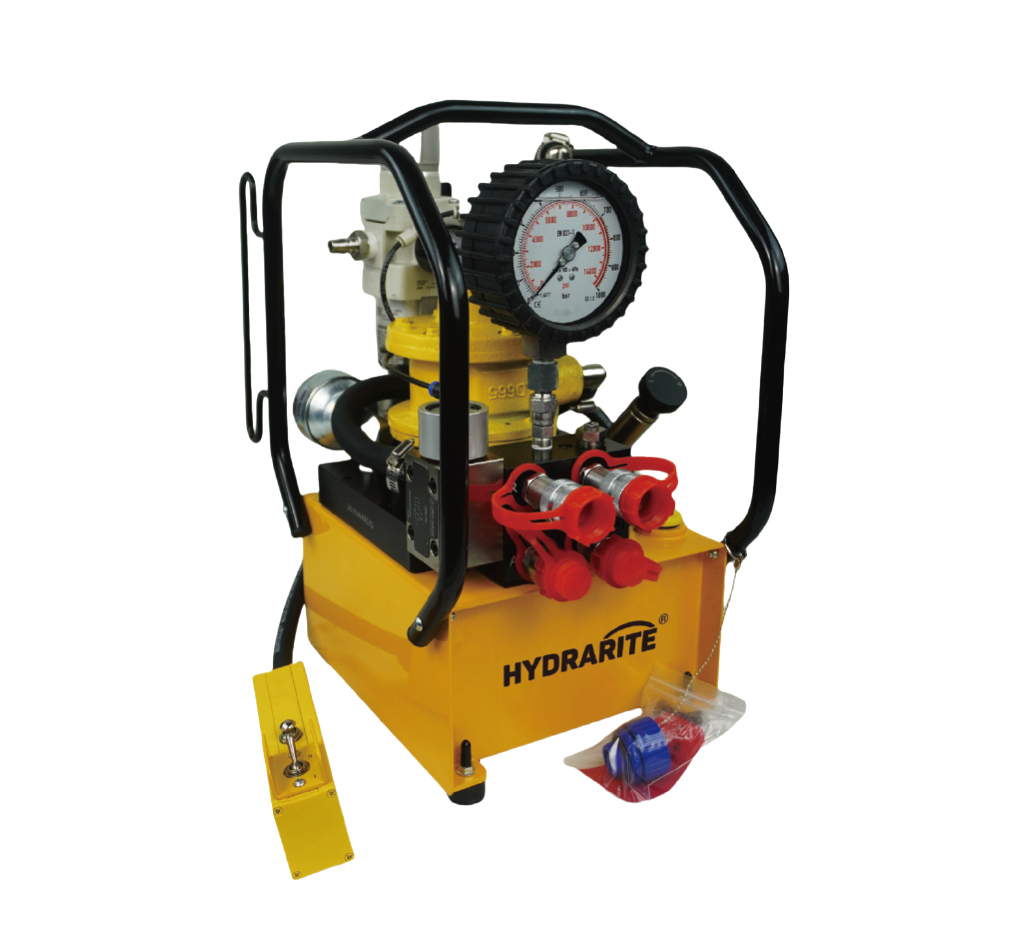

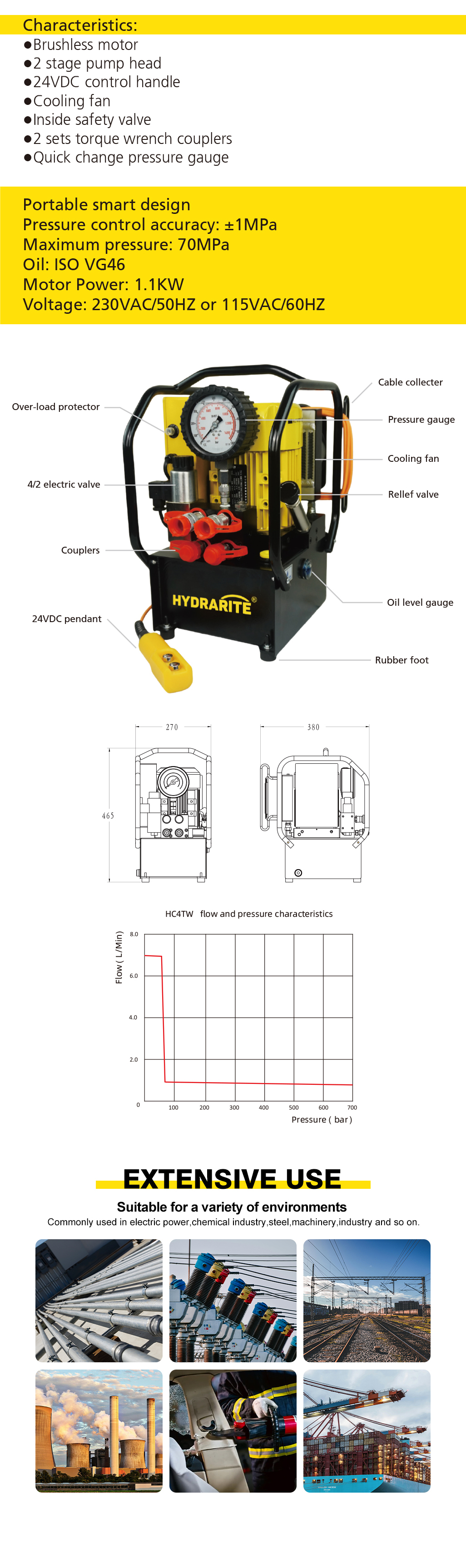

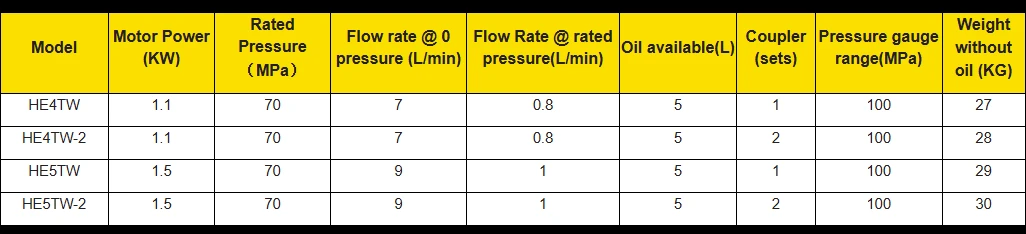

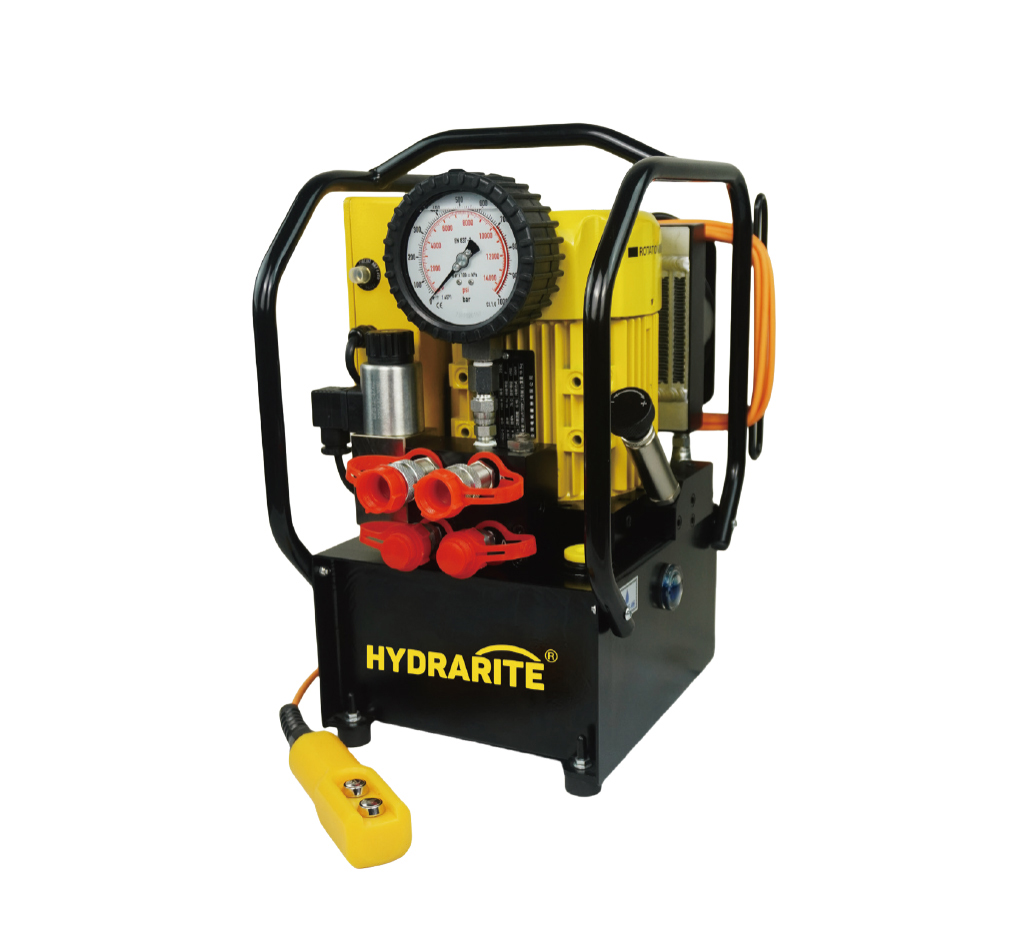

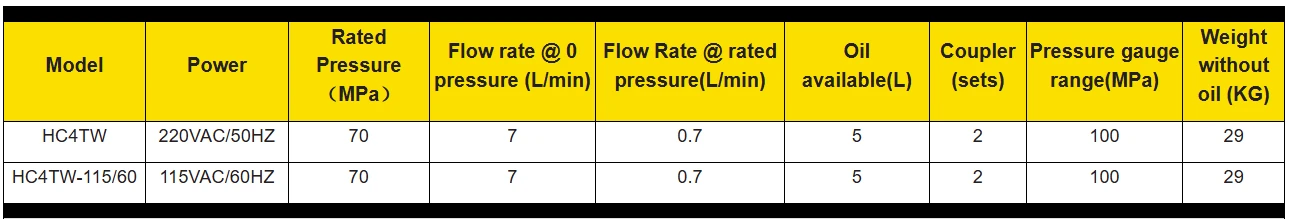

The electric HE4TW/HE4TW-2/HE5TW/HE5TW-2 and HC4TW pumps, plus the air-driven HA5TW, power Hydrarite hydraulic torque wrenches to 700 bar (70MPa) with plus or minus 1MPa pressure control accuracy. Brushless motors, 24VDC pendant control, and 2-stage pump heads are standard, with dual-coupler variants available for running two wrenches simultaneously.

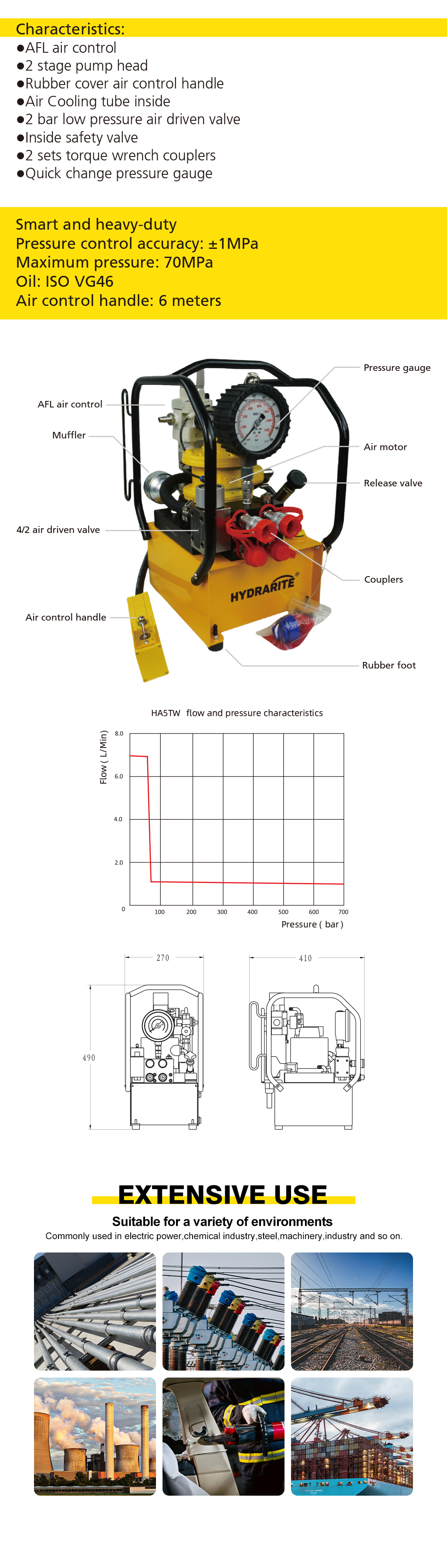

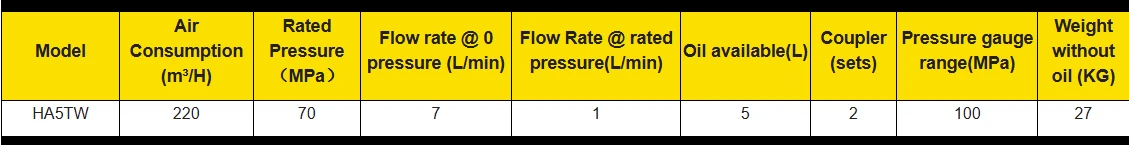

Air Powered Hydraulic Torque Wrench Pump, HA5TW
Additional Information
Length
10 cm
Width
10 cm
Height
5 cm
Weight
0.2 kg
Specifications
Technical Specifications
Rated Pressure (MPa)
70
Hydrarite Electric & Air-Powered Torque Wrench Pumps
The electric HE4TW/HE4TW-2/HE5TW/HE5TW-2 and HC4TW pumps, plus the air-driven HA5TW, power Hydrarite hydraulic torque wrenches to 700 bar (70MPa) with plus or minus 1MPa pressure control accuracy. Brushless motors, 24VDC pendant control, and 2-stage pump heads are standard, with dual-coupler variants available for running two wrenches simultaneously.
Air Powered Hydraulic Torque Wrench Pump, HA5TW
