Motology Aluminium Braking Motor,3 Phase,IE2
Share productSKU:
Click to copy
VOLTAGE, FREQUENCY A...
Contact us for pricing
This product requires a custom quote
In Stock
Mounting Type
Pole
Rated Output(kW)
Quantity
Max: 10Add to wishlist
Description

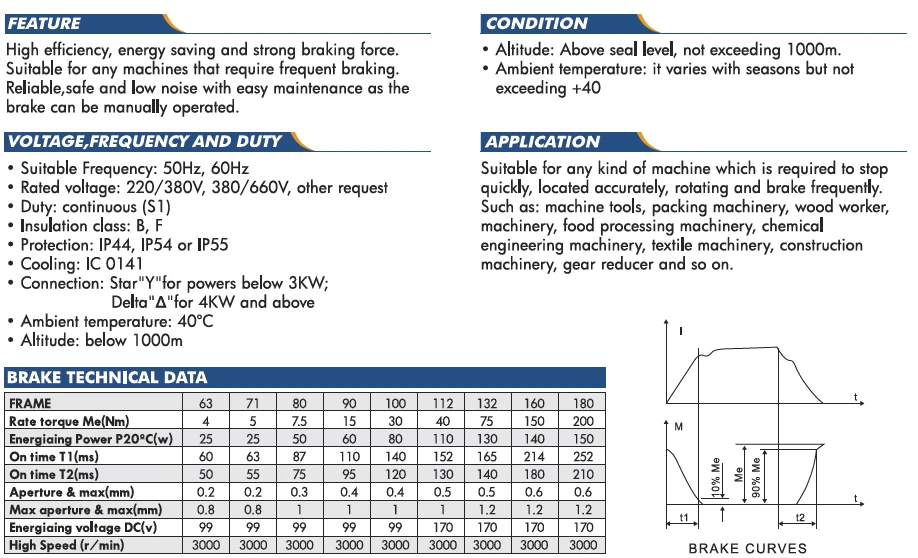

VOLTAGE, FREQUENCY AND DUTY
-
Suitable Frequency: 50Hz, 60Hz
-
Rated Voltage: 220/380V, 380/660V (other upon request)
-
Duty: Continuous (S1)
-
Insulation Class: B, F
-
Protection: IP44, IP54, or IP55
-
Cooling: IC 0141
-
Connection:
-
Star (Y) for powers below 3KW
-
Delta (Δ) for 4KW and above
-
-
Ambient Temperature: 40°C
-
Altitude: Below 1000m
Additional Information
Length
10 cm
Width
10 cm
Height
5 cm
Weight
0.2 kg
Specifications
No Specifications Available
Technical specifications have not been added yet.
VOLTAGE, FREQUENCY AND DUTY
-
Suitable Frequency: 50Hz, 60Hz
-
Rated Voltage: 220/380V, 380/660V (other upon request)
-
Duty: Continuous (S1)
-
Insulation Class: B, F
-
Protection: IP44, IP54, or IP55
-
Cooling: IC 0141
-
Connection:
-
Star (Y) for powers below 3KW
-
Delta (Δ) for 4KW and above
-
-
Ambient Temperature: 40°C
-
Altitude: Below 1000m
