Motology Aluminium Dual-Capacitor Induction Motor,1 Phase,IE2
SKU:
Brand: Motology
Category: Machinery › Electric Motor › Dual-Capacitor Induction Motor
MOTOR FEATURES</span...
Contact us for pricing
This product requires a custom quote

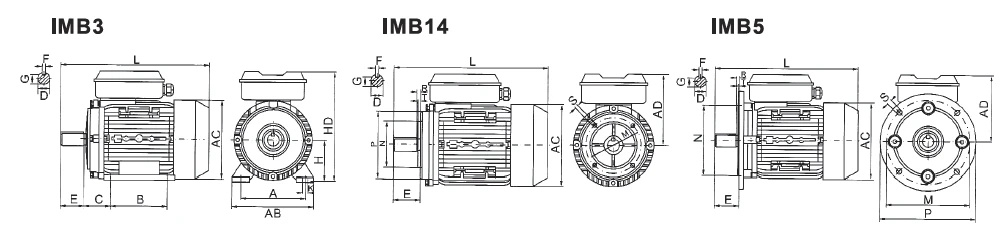

Mounting Type
Pole
Rated Output(kW)
Quantity
Max: 10Description
MOTOR FEATURES
Build & Design
-
Aluminium frame and feet: Lightweight yet robust construction.
-
Quality paint finish: Provides excellent durability and appearance.
-
Strengthened cable gland: Ensures secure and reliable electrical connections.
-
Stainless steel shaft: Available upon request for highly corrosive environments.
Performance & Reliability
-
High performance and efficiency: Motors designed to heavy-duty service factors.
-
Continuous S1 duty: Rated for continuous, uninterrupted operation.
-
Reliable Insulation: Utilises vacuum impregnated Class B or Class F insulation (all other insulation classes available upon request).
Protection & Installation
-
Enclosure Protection: IP54 enclosure as standard (IP55 available on request).
-
Universal mounting: Highly adaptable design for easy installation.
-
Ready to use: Comes complete with a shaft key and protector.
Additional Information
Length
360 mm
Width
180 mm
Height
270 mm
Weight
16 kg
Specifications
No Specifications Available
Technical specifications have not been added yet.
MOTOR FEATURES
Build & Design
-
Aluminium frame and feet: Lightweight yet robust construction.
-
Quality paint finish: Provides excellent durability and appearance.
-
Strengthened cable gland: Ensures secure and reliable electrical connections.
-
Stainless steel shaft: Available upon request for highly corrosive environments.
Performance & Reliability
-
High performance and efficiency: Motors designed to heavy-duty service factors.
-
Continuous S1 duty: Rated for continuous, uninterrupted operation.
-
Reliable Insulation: Utilises vacuum impregnated Class B or Class F insulation (all other insulation classes available upon request).
Protection & Installation
-
Enclosure Protection: IP54 enclosure as standard (IP55 available on request).
-
Universal mounting: Highly adaptable design for easy installation.
-
Ready to use: Comes complete with a shaft key and protector.
