FITOK Female Adapters (ISO Parallel (RG), Metric Tube)
SKU:
Brand: FITOK
Category: Fittings and Accessories › Instrumentation Tube Fittings › Connectors
Tags: Fitok, Pipe Fitting, Connectors, Plumbing
FITOK Female Adapters — 316/316L stainless steel compression double-ferrule tube fittings (Metric Tube, ISO Parallel Thread (RG)), FITOK 6D Series. Ordering numbers shown are FITOK's part-number su...
Contact us for pricing
This product requires a custom quote
Port 1 Size
Port 2 Size
Quantity
Description
FITOK Female Adapters — 316/316L stainless steel compression double-ferrule tube fittings (Metric Tube, ISO Parallel Thread (RG)), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
Available Variants & Specifications
| Ordering No. | Port 1 Size | Port 2 Size | L (Length) | B (Thread) | E (Min Orifice) | F (Body Hex) |
|---|---|---|---|---|---|---|
SS-AF-MT10-RG4 |
10 | 1/4 | 34.5(1.36) | 12.9(0.50) | 5.5(0.22) | 19.0(0.75) |
SS-AF-MT10-RG6 |
10 | 3/8 | 36.1(1.42) | 14.2(0.56) | 6.5(0.26) | 24.0(0.94) |
SS-AF-MT10-RG8 |
10 | 1/2 | 41.1(1.62) | 18.8(0.74) | 7.1(0.28) | 27.0(1.06) |
SS-AF-MT12-RG4 |
12 | 1/4 | 40 | . | 1(1.58) | 12.9(0.50) |
SS-AF-MT12-RG6 |
12 | 3/8 | 44.7(1.76) | 14.2(0.56) | 6.5(0.26) | 24.0(0.94) |
SS-AF-MT12-RG8 |
12 | 1/2 | 48.8(1.92) | 18.8(0.74) | 7.0(0.28) | 27.0(1.06) |
SS-AF-MT16-RG8 |
16 | 1/2 | 49.0(1.93) | 18.8(0.74) | 7.0(0.28) | 27.0(1.06) |
SS-AF-MT18-RG8 |
18 | 1/2 | 49.3(1.94) | 18.8(0.74) | 7.0(0.28) | 27.0(1.06) |
SS-AF-MT3-RG2 |
3 | 1/8 | 28.6(1.13) | 9.8(0.39) | 1.9(0.07) | 14.0(0.55) |
SS-AF-MT3-RG4 |
3 | 1/4 | 33.5(1.32) | 12.9(0.50) | 1.9(0.07) | 19.0(0.75) |
SS-AF-MT4-RG2 |
4 | 1/8 | 29.4(1.16) | 9.8(0.39) | 2.4(0.09) | 14.0(0.55) |
SS-AF-MT6-RG2 |
6 | 1/8 | 29 | . | 1(1.15) | 9.8(0.39) |
SS-AF-MT6-RG4 |
6 | 1/4 | 35.3(1.39) | 12.9(0.50) | 4.1(0.16) | 19.0(0.75) |
SS-AF-MT6-RG6 |
6 | 3/8 | 38.4(1.51) | 14.2(0.56) | 4.1(0.16) | 24.0(0.94) |
SS-AF-MT6-RG8 |
6 | 1/2 | 42.9(1.69) | 18.8(0.74) | 4.1(0.16) | 27.0(1.06) |
SS-AF-MT8-RG4 |
8 | 1/4 | 33.0(1.30) | 12.9(0.50) | 5.5(0.22) | 19.0(0.75) |
SS-AF-MT8-RG6 |
8 | 3/8 | 38.9(1.53) | 14.2(0.56) | 5.6(0.22) | 24.0(0.94) |
SS-AF-MT8-RG8 |
8 | 1/2 | 43.7(1.72) | 18.8(0.74) | 5.6(0.22) | 27.0(1.06) |
Additional Details
Instrumentation tube fitting for high-pressure, leak-tight, vibration-resistant connections in process, analytical, and instrumentation piping systems. Interchangeable in form, fit and function with other major compression tube fitting brands.
Additional Information
Length
6 cm
Width
4 cm
Height
4 cm
Weight
0.1 kg

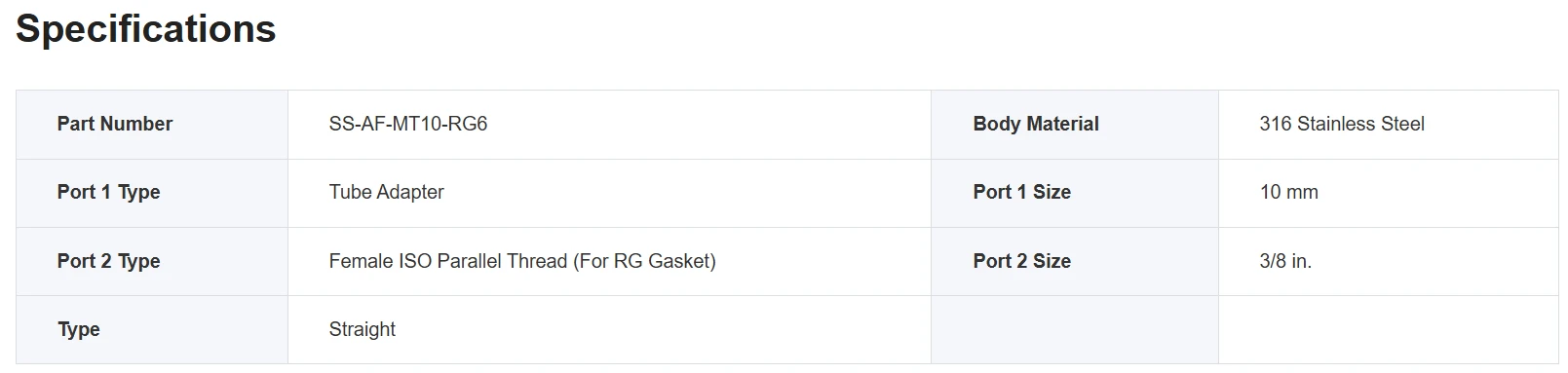

Specifications
Material
316/316L Stainless Steel (Ni content >= 28.5%)
Connection Style
Compression, double-ferrule tube fitting (FITOK 6D Series)
Standard / Certification
Tested to ASTM F1387; dimensionally interchangeable with other major compression tube fitting brands
Pressure Rating
Rated to the maximum working pressure of the mating FITOK tubing (fitting is not the pressure-limiting component)
Thread Type
ISO Parallel Thread (RG)
Tube Type
Metric Tube
Max working pressure
6000 psig psig
Operating temperature
-28 to +204 °C °C
FITOK Female Adapters — 316/316L stainless steel compression double-ferrule tube fittings (Metric Tube, ISO Parallel Thread (RG)), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
