FITOK Male Connectors (SAE/MS Straights (ST), Fractional Tube)
Share productSKU:
Click to copyFITOK Male Connectors — 316/316L stainless steel compression double-ferrule tube fittings (Fractional Tube, SAE/MS Straight Threads (ST)), FITOK 6D Series. Ordering numbers shown are FITOK's part-n...
Contact us for pricing
This product requires a custom quote
In Stock
Port 1 Size
Port 2 Size
Port 3 Size
Quantity
Add to wishlist
Description
FITOK Male Connectors — 316/316L stainless steel compression double-ferrule tube fittings (Fractional Tube, SAE/MS Straight Threads (ST)), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
Available Variants & Specifications
| Ordering No. | Port 1 Size | Port 2 Size | Port 3 Size | L (Length) | B (Thread) | C (Depth) | E (Min Orifice) | G (Nut Hex) | F (Body Hex) |
|---|---|---|---|---|---|---|---|---|---|
SS-CM-FL1-ST5 |
1/16 | 2 | 5/16-24 | 0.92(23.4) | 0.30(7.6) | 0.34(8.6) | 0.05(1.3) | 0.31(7.9) | 0.44(11.1) |
SS-CM-FL10-ST12 |
5/8 | 8 | 3/4-16 | 1.65(41.9) | 0.44(11.2) | 0.96(24.4) | 0.42(10.7) | 1.00(25.4) | 0.94(23.8) |
SS-CM-FL10-ST14 |
5/8 | 10 | 7/8-14 | 1.78(45.2) | 0.50(12.7) | 0.96(24.4) | 0.50(12.7) | 1.00(25.4) | 1.00(25.4) |
SS-CM-FL12-ST12 |
3/4 | 8 | 3/4-16 | 1.81(46.0) | 0.44(11.2) | 0.96(24.4) | 0.42(10.7) | 1.13(28.6) | 1.06(27.0) |
SS-CM-FL12-ST17 |
3/4 | 12 | 1 1/16-12 | 1.93(49.0) | 0.59(15.0) | 0.96(24.4) | 0.62(15.7) | 1.13(28.6) | 1.25(31.8) |
SS-CM-FL12-ST21 |
3/4 | 16 | 1 5/16-12 | 1.96(49.8) | 0.59(15.0) | 0.96(24.4) | 0.63(16.0) | 1.13(28.6) | 1.50(38.1) |
SS-CM-FL14-ST19 |
7/8 | 14 | 1 3/16-12 | 1.93(49.0) | 0.59(15.0) | 1.02(25.9) | 0.72(18.3) | 1.25(31.8) | 1.37(34.9) |
SS-CM-FL16-ST17 |
1 | 12 | 1 1/16-12 | 2.10(53.3) | 0.59(15.0) | 1.23(31.2) | 0.66(16.8) | 1.50(38.1) | 1.37(34.9) |
SS-CM-FL16-ST21 |
1 | 16 | 1 5/16-12 | 2.14(54.4) | 0.59(15.0) | 1.23(31.2) | 0.88(22.4) | 1.50(38.1) | 1.50(38.1) |
SS-CM-FL2-ST5 |
1/8 | 2 | 5/16-24 | 1.18(30.0) | 0.30(7.6) | 0.50(12.7) | 0.09(2.3) | 0.44(11.1) | 0.44(11.1) |
SS-CM-FL2-ST7 |
1/8 | 4 | 7/16-20 | 1.24(31.5) | 0.36(9.1) | 0.50(12.7) | 0.09(2.3) | 0.44(11.1) | 0.56(14.3) |
SS-CM-FL2-ST9 |
1/8 | 6 | 9/16-18 | 1.31(33.3) | 0.39(9.9) | 0.50(12.7) | 0.09(2.3) | 0.44(11.1) | 0.69(17.5) |
SS-CM-FL20-ST26 |
1 1/4 | 20 | 1 5/8-12 | 2.69(68.3) | 0.59(15.0) | 1.62(41.1) | 1.09(27.7) | 1.87(47.6) | 1.87(47.6) |
SS-CM-FL24-ST30 |
1 1/2 | 24 | 1 7/8-12 | 3.06(77.7) | 0.59(15.0) | 1.97(50.0) | 1.34(34.0) | 2.25(57.2) | 2.13(54.0) |
SS-CM-FL3-ST6 |
3/16 | 3 | 3/8-24 | 1.20(30.5) | 0.30(7.6) | 0.54(13.7) | 0.12(3.0) | 0.50(12.7) | 0.50(12.7) |
SS-CM-FL4-ST12 |
1/4 | 8 | 3/4-16 | 1.48(37.6) | 0.44(11.2) | 0.60(15.2) | 0.19(4.8) | 0.56(14.3) | 0.87(22.2) |
SS-CM-FL4-ST14 |
1/4 | 10 | 7/8-14 | 1.60(40.6) | 0.50(12.7) | 0.60(15.2) | 0.19(4.8) | 0.56(14.3) | 1.00(25.4) |
SS-CM-FL4-ST5 |
1/4 | 2 | 5/16-24 | 1.27(32.3) | 0.30(7.6) | 0.60(15.2) | 0.12(3.0) | 0.56(14.3) | 0.50(12.7) |
SS-CM-FL4-ST7 |
1/4 | 4 | 7/16-20 | 1.34(34.0) | 0.36(9.1) | 0.60(15.2) | 0.19(4.8) | 0.56(14.3) | 0.56(14.3) |
SS-CM-FL4-ST9 |
1/4 | 6 | 9/16-18 | 1.40(35.6) | 0.39(9.9) | 0.60(15.2) | 0.19(4.8) | 0.56(14.3) | 0.69(17.5) |
SS-CM-FL5-ST8 |
5/16 | 5 | 1/2-20 | 1.37(34.8) | 0.36(9.1) | 0.64(16.3) | 0.25(6.4) | 0.63(15.9) | 0.63(15.9) |
SS-CM-FL6-ST12 |
3/8 | 8 | 3/4-16 | 1.54(39.1) | 0.44(11.2) | 0.66(16.8) | 0.28(7.1) | 0.69(17.5) | 0.87(22.2) |
SS-CM-FL6-ST14 |
3/8 | 10 | 7/8-14 | 1.66(42.2) | 0.50(12.7) | 0.66(16.8) | 0.28(7.1) | 0.69(17.5) | 1.00(25.4) |
SS-CM-FL6-ST7 |
3/8 | 4 | 7/16-20 | 1.40(35.6) | 0.36(9.1) | 0.66(16.8) | 0.20(5.1) | 0.69(17.5) | 0.63(15.9) |
SS-CM-FL6-ST9 |
3/8 | 6 | 9/16-18 | 1.46(37.1) | 0.39(9.9) | 0.66(16.8) | 0.28(7.1) | 0.69(17.5) | 0.69(17.5) |
SS-CM-FL8-ST12 |
1/2 | 8 | 3/4-16 | 1.65(41.9) | 0.44(11.2) | 0.90(22.9) | 0.41(10.4) | 0.87(22.2) | 0.87(22.2) |
SS-CM-FL8-ST14 |
1/2 | 10 | 7/8-14 | 1.77(45.0) | 0.50(12.7) | 0.90(22.9) | 0.41(10.4) | 0.87(22.2) | 1.00(25.4) |
SS-CM-FL8-ST17 |
1/2 | 12 | 1 1/16-12 | 1.93(49.0) | 0.59(15.0) | 0.90(22.9) | 0.41(10.4) | 0.87(22.2) | 1.25(31.8) |
SS-CM-FL8-ST9 |
1/2 | 6 | 9/16-18 | 1.54(39.1) | 0.39(9.9) | 0.90(22.9) | 0.28(7.1) | 0.87(22.2) | 0.81(20.6) |
SS-CML-FL4-ST7 |
1/4 | 4 | 7/16-20 | 2.26(57.4) | 0.36(9.1) | 0.60(15.2) | 0.19(4.8) | 0.56(14.3) | 0.56(14.3) |
SS-CML-FL8-ST12 |
1/2 | 8 | 3/4-16 | 3.01(76.5) | 0.44(11.2) | 0.90(22.9) | 0.41(10.4) | 0.87(22.2) | 0.87(22.2) |
Additional Details
Instrumentation tube fitting for high-pressure, leak-tight, vibration-resistant connections in process, analytical, and instrumentation piping systems. Interchangeable in form, fit and function with other major compression tube fitting brands.
Additional Information
Length
6 cm
Width
4 cm
Height
4 cm
Weight
0.1 kg

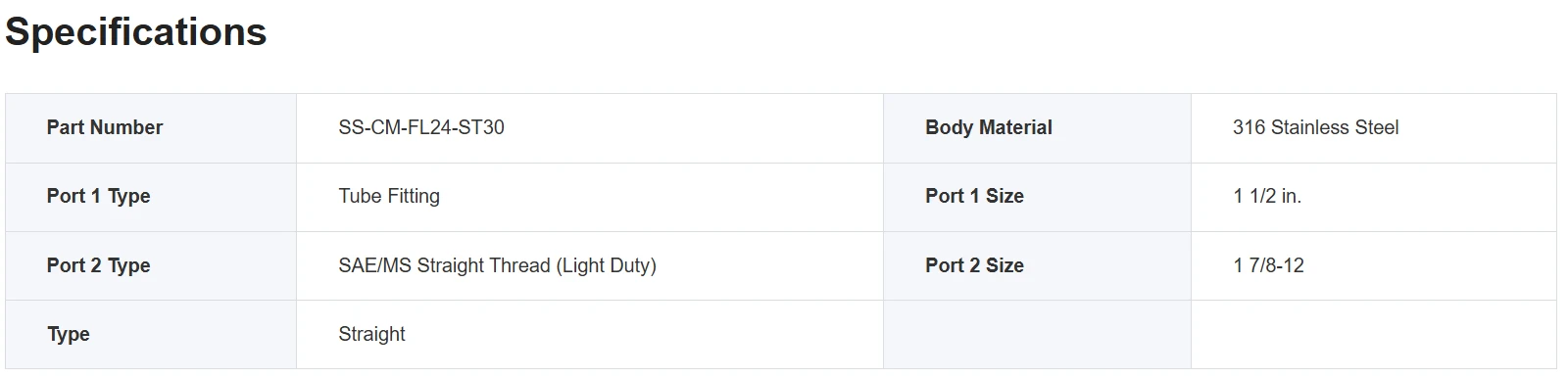

Specifications
General
Material
316/316L Stainless Steel (Ni content >= 28.5%)
Connection Style
Compression, double-ferrule tube fitting (FITOK 6D Series)
Standard / Certification
Tested to ASTM F1387; dimensionally interchangeable with other major compression tube fitting brands
Pressure Rating
Rated to the maximum working pressure of the mating FITOK tubing (fitting is not the pressure-limiting component)
Thread Type
SAE/MS Straight Threads (ST)
Tube Type
Fractional Tube
Technical Specifications
Max working pressure
6000 psig psig
Operating temperature
-28 to +204 °C °C
