FITOK Female Adapters (ISO Parallel (RP), Fractional Tube)
SKU:
Brand: FITOK
Category: Fittings and Accessories › Instrumentation Tube Fittings › Connectors
Tags: Fitok, Pipe Fitting, Connectors, Plumbing
FITOK Female Adapters — 316/316L stainless steel compression double-ferrule tube fittings (Fractional Tube, ISO Parallel Thread (RP)), FITOK 6D Series. Ordering numbers shown are FITOK's part-numbe...
Contact us for pricing
This product requires a custom quote
Port 1 Size
Port 2 Size
Quantity
Description
FITOK Female Adapters — 316/316L stainless steel compression double-ferrule tube fittings (Fractional Tube, ISO Parallel Thread (RP)), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
Available Variants & Specifications
| Ordering No. | Port 1 Size | Port 2 Size | L (Length) | B (Thread) | E (Min Orifice) | F (Body Hex) |
|---|---|---|---|---|---|---|
SS-AF-FT2-RP2 |
1/8 | 1/8 | 1.17(29.7) | 0.40(10.2) | 0.08(2.0) | 0.56(14.3) |
SS-AF-FT4-RP2 |
1/4 | 1/8 | 1.25(31.8) | 0.40(10.2) | 0.17(4.3) | 0.56(14.3) |
SS-AF-FT4-RP4 |
1/4 | 1/4 | 1.50(38.1) | 0.61(15.5) | 0.17(4.3) | 0.75(19.1) |
SS-AF-FT6-RP4 |
3/8 | 1/4 | 1.55(39.4) | 0.61(15.5) | 0.27(6.9) | 0.75(19.1) |
SS-AF-FT6-RP6 |
3/8 | 3/8 | 1.57(39.9) | 0.60(15.2) | 0.27(6.9) | 0.94(23.8) |
SS-AF-FT8-RP6 |
1/2 | 3/8 | 1.78(45.2) | 0.60(15.2) | 0.38(9.7) | 0.94(23.8) |
SS-AF-FT8-RP8 |
1/2 | 1/2 | 1.95(49.5) | 0.73(18.5) | 0.38(9.7) | 1.06(27.0) |
Additional Details
Instrumentation tube fitting for high-pressure, leak-tight, vibration-resistant connections in process, analytical, and instrumentation piping systems. Interchangeable in form, fit and function with other major compression tube fitting brands.
Additional Information
Length
6 cm
Width
4 cm
Height
4 cm
Weight
0.1 kg

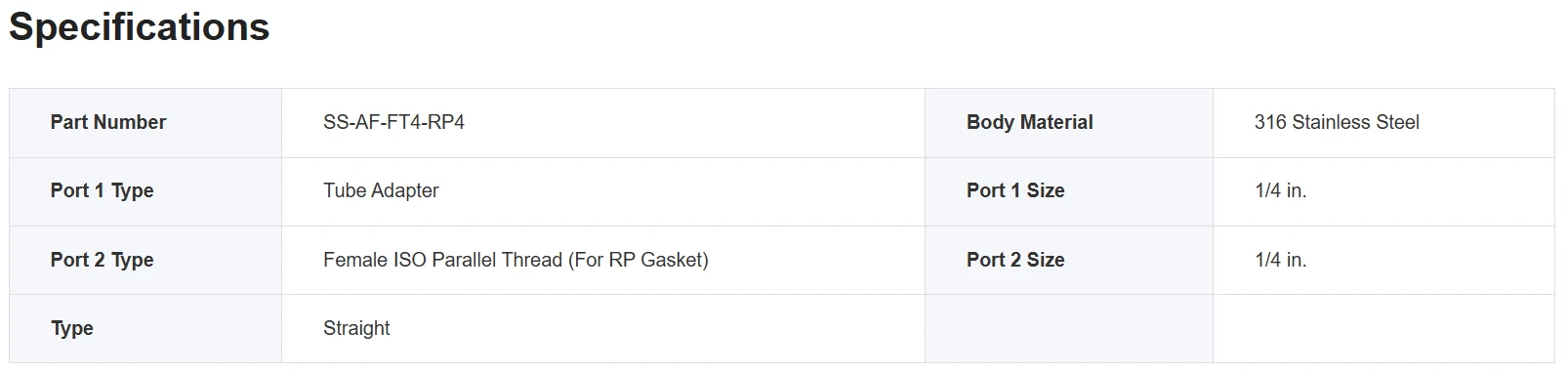

Specifications
Material
316/316L Stainless Steel (Ni content >= 28.5%)
Connection Style
Compression, double-ferrule tube fitting (FITOK 6D Series)
Standard / Certification
Tested to ASTM F1387; dimensionally interchangeable with other major compression tube fitting brands
Pressure Rating
Rated to the maximum working pressure of the mating FITOK tubing (fitting is not the pressure-limiting component)
Thread Type
ISO Parallel Thread (RP)
Tube Type
Fractional Tube
Max working pressure
6000 psig psig
Operating temperature
-28 to +204 °C °C
FITOK Female Adapters — 316/316L stainless steel compression double-ferrule tube fittings (Fractional Tube, ISO Parallel Thread (RP)), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
Available Variants & Specifications
| Ordering No. | Port 1 Size | Port 2 Size | L (Length) | B (Thread) | E (Min Orifice) | F (Body Hex) |
|---|---|---|---|---|---|---|
SS-AF-FT2-RP2 |
1/8 | 1/8 | 1.17(29.7) | 0.40(10.2) | 0.08(2.0) | 0.56(14.3) |
SS-AF-FT4-RP2 |
1/4 | 1/8 | 1.25(31.8) | 0.40(10.2) | 0.17(4.3) | 0.56(14.3) |
SS-AF-FT4-RP4 |
1/4 | 1/4 | 1.50(38.1) | 0.61(15.5) | 0.17(4.3) | 0.75(19.1) |
SS-AF-FT6-RP4 |
3/8 | 1/4 | 1.55(39.4) | 0.61(15.5) | 0.27(6.9) | 0.75(19.1) |
SS-AF-FT6-RP6 |
3/8 | 3/8 | 1.57(39.9) | 0.60(15.2) | 0.27(6.9) | 0.94(23.8) |
SS-AF-FT8-RP6 |
1/2 | 3/8 | 1.78(45.2) | 0.60(15.2) | 0.38(9.7) | 0.94(23.8) |
SS-AF-FT8-RP8 |
1/2 | 1/2 | 1.95(49.5) | 0.73(18.5) | 0.38(9.7) | 1.06(27.0) |
Additional Details
Instrumentation tube fitting for high-pressure, leak-tight, vibration-resistant connections in process, analytical, and instrumentation piping systems. Interchangeable in form, fit and function with other major compression tube fitting brands.
