FITOK Female Connectors (ISO Parallel (RP), Metric Tube)
SKU:
Brand: FITOK
Category: Fittings and Accessories › Instrumentation Tube Fittings › Connectors
Tags: Fitok, Pipe Fitting, Connectors, Plumbing
FITOK Female Connectors — 316/316L stainless steel compression double-ferrule tube fittings (Metric Tube, ISO Parallel Thread (RP)), FITOK 6D Series. Ordering numbers shown are FITOK's part-number ...
Contact us for pricing
This product requires a custom quote
Port 1 Size
Port 2 Size
Quantity
Description
FITOK Female Connectors — 316/316L stainless steel compression double-ferrule tube fittings (Metric Tube, ISO Parallel Thread (RP)), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
Available Variants & Specifications
| Ordering No. | Port 1 Size | Port 2 Size | L (Length) | B (Thread) | C (Depth) | E (Min Orifice) | G (Nut Hex) | F (Body Hex) |
|---|---|---|---|---|---|---|---|---|
SS-CF-ML22-RP12 |
22 | 3/4 | 53.3(2.10) | 20.5(0.81) | 26.0(1.02) | 18.3(0.72) | 32.0(1.26) | 35.0(1.38) |
SS-CF-ML25-RP16 |
25 | 1 | 63.9(2.52) | 23.5(0.93) | 31.3(1.23) | 21.8(0.86) | 38.0(1.50) | 40.0(1.57) |
SS-CF-ML6-RP2 |
6 | 1/8 | 33.5(1.32) | 15.5(0.61) | 15.3(0.60) | 4.8(0.19) | 14.0(0.55) | 14.0(0.55) |
SS-CF-ML6-RP4 |
6 | 1/4 | 39.4(1.55) | 15.5(0.61) | 15.3(0.60) | 4.8(0.19) | 14.0(0.55) | 19.0(0.75) |
Additional Details
Instrumentation tube fitting for high-pressure, leak-tight, vibration-resistant connections in process, analytical, and instrumentation piping systems. Interchangeable in form, fit and function with other major compression tube fitting brands.
Additional Information
Length
6 cm
Width
4 cm
Height
4 cm
Weight
0.1 kg

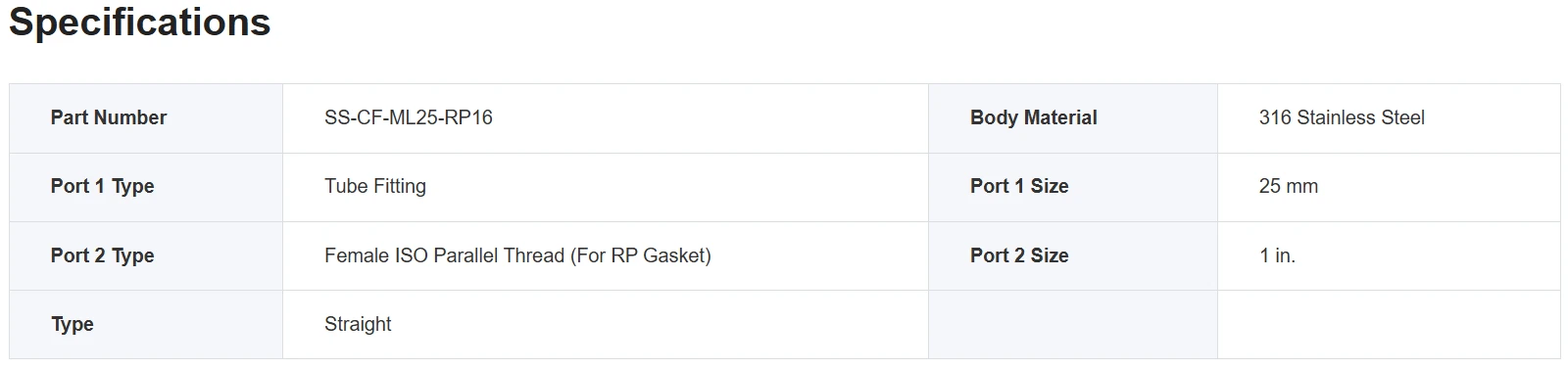

Specifications
Material
316/316L Stainless Steel (Ni content >= 28.5%)
Connection Style
Compression, double-ferrule tube fitting (FITOK 6D Series)
Standard / Certification
Tested to ASTM F1387; dimensionally interchangeable with other major compression tube fitting brands
Pressure Rating
Rated to the maximum working pressure of the mating FITOK tubing (fitting is not the pressure-limiting component)
Thread Type
ISO Parallel Thread (RP)
Tube Type
Metric Tube
Max working pressure
6000 psig psig
Operating temperature
-28 to +204 °C °C
FITOK Female Connectors — 316/316L stainless steel compression double-ferrule tube fittings (Metric Tube, ISO Parallel Thread (RP)), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
Available Variants & Specifications
| Ordering No. | Port 1 Size | Port 2 Size | L (Length) | B (Thread) | C (Depth) | E (Min Orifice) | G (Nut Hex) | F (Body Hex) |
|---|---|---|---|---|---|---|---|---|
SS-CF-ML22-RP12 |
22 | 3/4 | 53.3(2.10) | 20.5(0.81) | 26.0(1.02) | 18.3(0.72) | 32.0(1.26) | 35.0(1.38) |
SS-CF-ML25-RP16 |
25 | 1 | 63.9(2.52) | 23.5(0.93) | 31.3(1.23) | 21.8(0.86) | 38.0(1.50) | 40.0(1.57) |
SS-CF-ML6-RP2 |
6 | 1/8 | 33.5(1.32) | 15.5(0.61) | 15.3(0.60) | 4.8(0.19) | 14.0(0.55) | 14.0(0.55) |
SS-CF-ML6-RP4 |
6 | 1/4 | 39.4(1.55) | 15.5(0.61) | 15.3(0.60) | 4.8(0.19) | 14.0(0.55) | 19.0(0.75) |
Additional Details
Instrumentation tube fitting for high-pressure, leak-tight, vibration-resistant connections in process, analytical, and instrumentation piping systems. Interchangeable in form, fit and function with other major compression tube fitting brands.
