FITOK Female Connectors (ISO Tapered (RT), Metric Tube)
SKU:
Brand: FITOK
Category: Fittings and Accessories › Instrumentation Tube Fittings › Connectors
Tags: Fitok, Pipe Fitting, Connectors, Plumbing
FITOK Female Connectors — 316/316L stainless steel compression double-ferrule tube fittings (Metric Tube, ISO Tapered Thread (RT)), FITOK 6D Series. Ordering numbers shown are FITOK's part-number s...
Contact us for pricing
This product requires a custom quote
Port 1 Size
Port 2 Size
Quantity
Description
FITOK Female Connectors — 316/316L stainless steel compression double-ferrule tube fittings (Metric Tube, ISO Tapered Thread (RT)), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
Available Variants & Specifications
| Ordering No. | Port 1 Size | Port 2 Size | L (Length) | B (Thread) | C (Depth) | E (Min Orifice) | G (Nut Hex) | F (Body Hex) |
|---|---|---|---|---|---|---|---|---|
SS-CF-ML10-RT2 |
10 | 1/8 | 33.0(1.30) | 10.4(0.41) | 17.2(0.68) | 7.9(0.31) | 19.0(0.75) | 18.0(0.71) |
SS-CF-ML10-RT4 |
10 | 1/4 | 37.8(1.49) | 15.0(0.59) | 17.2(0.68) | 7.9(0.31) | 19.0(0.75) | 19.0(0.75) |
SS-CF-ML10-RT6 |
10 | 3/8 | 39.4(1.55) | 15.0(0.59) | 17.2(0.68) | 7.9(0.31) | 19.0(0.75) | 22.0(0.87) |
SS-CF-ML3-RT2 |
3 | 1/8 | 28.7(1.13) | 10.4(0.41) | 12.9(0.51) | 2.4(0.09) | 12.0(0.47) | 14.0(0.55) |
SS-CF-ML6-RT2 |
6 | 1/8 | 31.3(1.23) | 10.4(0.41) | 15.3(0.60) | 4.8(0.19) | 14.0(0.55) | 14.0(0.55) |
SS-CF-ML6-RT4 |
6 | 1/4 | 35.8(1.41) | 15.0(0.59) | 15.3(0.60) | 4.8(0.19) | 14.0(0.55) | 19.0(0.75) |
SS-CF-ML6-RT6 |
6 | 3/8 | 37.9(1.49) | 15.0(0.59) | 15.3(0.60) | 4.8(0.19) | 14.0(0.55) | 22.0(0.87) |
SS-CF-ML6-RT8 |
6 | 1/2 | 42.5(1.67) | 19.8(0.78) | 15.3(0.60) | 4.8(0.19) | 14.0(0.55) | 27.0(1.06) |
SS-CF-ML8-RT2 |
8 | 1/8 | 32.1(1.26) | 10.4(0.41) | 16.2(0.64) | 6.4(0.25) | 16.0(0.63) | 15.0(0.59) |
SS-CF-ML8-RT4 |
8 | 1/4 | 37.0(1.46) | 15.0(0.59) | 16.2(0.64) | 6.4(0.25) | 16.0(0.63) | 19.0(0.75) |
SS-CF-ML8-RT6 |
8 | 3/8 | 38.5(1.52) | 15.0(0.59) | 16.2(0.64) | 6.4(0.25) | 16.0(0.63) | 22.0(0.87) |
SS-CF-ML8-RT8 |
8 | 1/2 | 43.3(1.70) | 19.8(0.78) | 16.2(0.64) | 6.4(0.25) | 16.0(0.63) | 27.0(1.06) |
Additional Details
Instrumentation tube fitting for high-pressure, leak-tight, vibration-resistant connections in process, analytical, and instrumentation piping systems. Interchangeable in form, fit and function with other major compression tube fitting brands.
Additional Information
Length
6 cm
Width
4 cm
Height
4 cm
Weight
0.1 kg

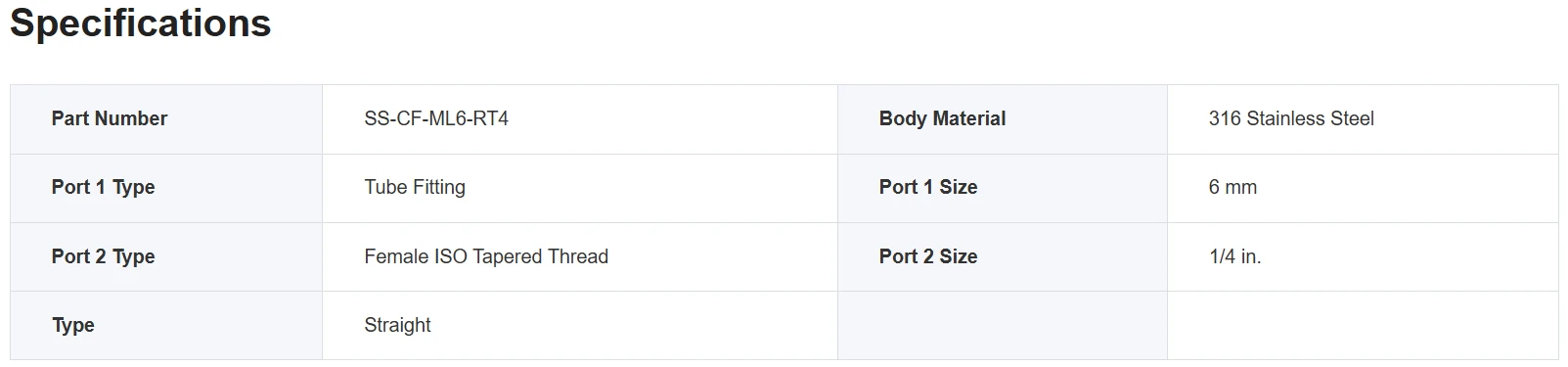

Specifications
Material
316/316L Stainless Steel (Ni content >= 28.5%)
Connection Style
Compression, double-ferrule tube fitting (FITOK 6D Series)
Standard / Certification
Tested to ASTM F1387; dimensionally interchangeable with other major compression tube fitting brands
Pressure Rating
Rated to the maximum working pressure of the mating FITOK tubing (fitting is not the pressure-limiting component)
Thread Type
ISO Tapered Thread (RT)
Tube Type
Metric Tube
Max working pressure
6000 psig psig
Operating temperature
-28 to +204 °C °C
