FITOK Male Connectors (ISO Parallel (BP), Metric Tube)
SKU:
Brand: FITOK
Category: Fittings and Accessories › Instrumentation Tube Fittings › Connectors
Tags: Fitok, Pipe Fitting, Connectors, Plumbing
FITOK Male Connectors — 316/316L stainless steel compression double-ferrule tube fittings (Metric Tube, ISO Parallel Thread (BP)), FITOK 6D Series. Ordering numbers shown are FITOK's part-number su...
Contact us for pricing
This product requires a custom quote
Port 1 Size
Port 2 Size
Quantity
Description
FITOK Male Connectors — 316/316L stainless steel compression double-ferrule tube fittings (Metric Tube, ISO Parallel Thread (BP)), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
Available Variants & Specifications
| Ordering No. | Port 1 Size | Port 2 Size | L (Length) | B (Thread) | C (Depth) | E (Min Orifice) | G (Nut Hex) | F (Body Hex) |
|---|---|---|---|---|---|---|---|---|
SS-CM-ML10-BP4 |
10 | 1/4 | 39.5(1.56) | 12.9(0.51) | 17.2(0.68) | 5.9(0.23) | 19.0(0.75) | 18.0(0.71) |
SS-CM-ML10-BP8 |
10 | 1/2 | 46.3(1.82) | 18.8(0.74) | 17.2(0.68) | 7.9(0.31) | 19.0(0.75) | 22.0(0.87) |
SS-CM-ML12-BP6 |
12 | 3/8 | 44.2(1.74) | 14.2(0.56) | 22.8(0.90) | 7.9(0.31) | 22.0(0.87) | 22.0(0.87) |
SS-CM-ML12-BP8 |
12 | 1/2 | 52.1(2.05) | 18.8(0.74) | 22.8(0.90) | 9.5(0.37) | 22.0(0.87) | 22.0(0.87) |
SS-CM-ML14-BP4 |
14 | 1/4 | 42.9(1.69) | 12.9(0.51) | 24.4(0.96) | 5.9(0.23) | 25.0(0.98) | 24.0(0.94) |
SS-CM-ML16-BP6 |
16 | 3/8 | 43.4(1.71) | 14.2(0.56) | 24.4(0.96) | 7.9(0.31) | 25.0(0.98) | 24.0(0.94) |
SS-CM-ML16-BP8 |
16 | 1/2 | 47.9(1.89) | 18.8(0.74) | 24.4(0.96) | 9.5(0.37) | 25.0(0.98) | 24.0(0.94) |
SS-CM-ML18-BP8 |
18 | 1/2 | 49.8(1.96) | 18.8(0.74) | 24.4(0.96) | 9.5(0.37) | 30.0(1.18) | 27.0(1.06) |
SS-CM-ML6-BP4 |
6 | 1/4 | 36.9(1.45) | 12.9(0.51) | 15.3(0.60) | 4.8(0.19) | 14.0(0.55) | 14.0(0.55) |
SS-CM-ML6-BP6 |
6 | 3/8 | 39.5(1.56) | 14.2(0.56) | 15.3(0.60) | 4.8(0.19) | 14.0(0.55) | 18.0(0.71) |
SS-CM-ML8-BP2 |
8 | 1/8 | 33.9(1.33) | 9.8(0.39) | 16.2(0.64) | 4.0(0.16) | 16.0(0.63) | 14.0(0.55) |
SS-CM-ML8-BP4 |
8 | 1/4 | 37.0(1.46) | 12.9(0.51) | 16.2(0.64) | 6.4(0.25) | 16.0(0.63) | 14.0(0.55) |
SS-CM-ML8-BP6 |
8 | 3/8 | 39.3(1.55) | 14.2(0.56) | 16.2(0.64) | 6.4(0.25) | 16.0(0.63) | 18.0(0.71) |
SS-CM-ML8-BP8 |
8 | 1/2 | 45.4(1.79) | 18.8(0.74) | 16.2(0.64) | 6.4(0.25) | 16.0(0.63) | 22.0(0.87) |
Additional Details
Instrumentation tube fitting for high-pressure, leak-tight, vibration-resistant connections in process, analytical, and instrumentation piping systems. Interchangeable in form, fit and function with other major compression tube fitting brands.
Additional Information
Length
6 cm
Width
4 cm
Height
4 cm
Weight
0.1 kg

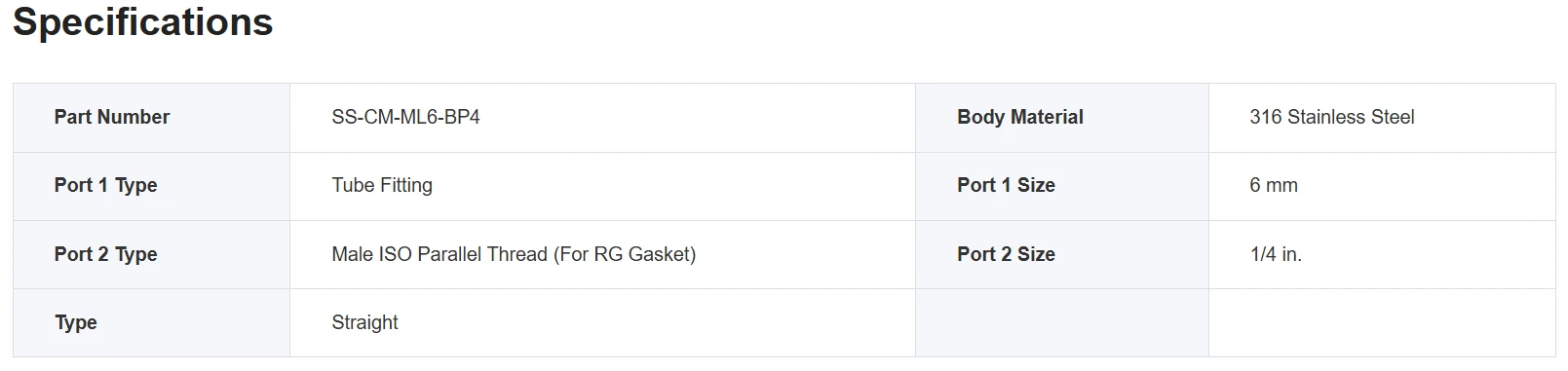

Specifications
Material
316/316L Stainless Steel (Ni content >= 28.5%)
Connection Style
Compression, double-ferrule tube fitting (FITOK 6D Series)
Standard / Certification
Tested to ASTM F1387; dimensionally interchangeable with other major compression tube fitting brands
Pressure Rating
Rated to the maximum working pressure of the mating FITOK tubing (fitting is not the pressure-limiting component)
Thread Type
ISO Parallel Thread (BP)
Tube Type
Metric Tube
Max working pressure
6000 psig psig
Operating temperature
-28 to +204 °C °C
FITOK Male Connectors — 316/316L stainless steel compression double-ferrule tube fittings (Metric Tube, ISO Parallel Thread (BP)), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
