FITOK Male Connectors (ISO Parallel (RP), Metric Tube)
SKU:
Brand: FITOK
Category: Fittings and Accessories › Instrumentation Tube Fittings › Connectors
Tags: Fitok, Pipe Fitting, Connectors, Plumbing
FITOK Male Connectors — 316/316L stainless steel compression double-ferrule tube fittings (Metric Tube, ISO Parallel Thread (RP)), FITOK 6D Series. Ordering numbers shown are FITOK's part-number su...
Contact us for pricing
This product requires a custom quote
Port 1 Size
Port 2 Size
Quantity
Description
FITOK Male Connectors — 316/316L stainless steel compression double-ferrule tube fittings (Metric Tube, ISO Parallel Thread (RP)), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
Available Variants & Specifications
| Ordering No. | Port 1 Size | Port 2 Size | L (Length) | B (Thread) | C (Depth) | E (Min Orifice) | G (Nut Hex) | F (Body Hex) |
|---|---|---|---|---|---|---|---|---|
SS-CM-ML10-RP4 |
10 | 1/4 | 39.4(1.55) | 11.2(0.44) | 17.2(0.68) | 5.9(0.23) | 19.0(0.75) | 19.0(0.75) |
SS-CM-ML10-RP6 |
10 | 3/8 | 42.8(1.69) | 11.2(0.44) | 17.2(0.68) | 7.9(0.31) | 19.0(0.75) | 22.0(0.87) |
SS-CM-ML10-RP8 |
10 | 1/2 | 46.5(1.83) | 14.2(0.56) | 17.2(0.68) | 7.9(0.31) | 19.0(0.75) | 27.0(1.06) |
SS-CM-ML12-RP12 |
12 | 3/4 | 52.8(2.08) | 15.7(0.62) | 22.8(0.90) | 9.5(0.37) | 22.0(0.87) | 35.0(1.38) |
SS-CM-ML12-RP4 |
12 | 1/4 | 42.6(1.68) | 11.2(0.44) | 22.8(0.90) | 5.9(0.23) | 22.0(0.87) | 22.0(0.87) |
SS-CM-ML12-RP6 |
12 | 3/8 | 43.1(1.70) | 11.2(0.44) | 22.8(0.90) | 7.9(0.31) | 22.0(0.87) | 22.0(0.87) |
SS-CM-ML12-RP8 |
12 | 1/2 | 52.1(2.05) | 14.2(0.56) | 22.8(0.90) | 9.5(0.37) | 22.0(0.87) | 27.0(1.06) |
SS-CM-ML15-RP8 |
15 | 1/2 | 47.5(1.87) | 14.2(0.56) | 24.4(0.96) | 11.9(0.47) | 25.0(0.98) | 27.0(1.06) |
SS-CM-ML16-RP6 |
16 | 3/8 | 43.9(1.73) | 11.2(0.44) | 24.4(0.96) | 7.9(0.31) | 25.0(0.98) | 24.0(0.94) |
SS-CM-ML16-RP8 |
16 | 1/2 | 49.0(1.93) | 14.2(0.56) | 24.4(0.96) | 11.9(0.47) | 25.0(0.98) | 27.0(1.06) |
SS-CM-ML18-RP12 |
18 | 3/4 | 52.8(2.08) | 15.7(0.62) | 24.4(0.96) | 15.1(0.59) | 30.0(1.18) | 35.0(1.38) |
SS-CM-ML18-RP8 |
18 | 1/2 | 49.0(1.93) | 14.2(0.56) | 24.4(0.96) | 11.9(0.47) | 30.0(1.18) | 27.0(1.06) |
SS-CM-ML20-RP12 |
20 | 3/4 | 52.8(2.08) | 15.7(0.62) | 26.0(1.02) | 15.9(0.63) | 32.0(1.26) | 35.0(1.38) |
SS-CM-ML20-RP8 |
20 | 1/2 | 50.5(1.99) | 14.2(0.56) | 26.0(1.02) | 11.9(0.47) | 32.0(1.26) | 30.0(1.18) |
SS-CM-ML22-RP12 |
22 | 3/4 | 52.8(2.08) | 15.7(0.62) | 26.0(1.02) | 15.9(0.63) | 32.0(1.26) | 35.0(1.38) |
SS-CM-ML22-RP16 |
22 | 1 | 55.3(2.18) | 18.3(0.72) | 26.0(1.02) | 18.3(0.72) | 32.0(1.26) | 41.0(1.61) |
SS-CM-ML25-RP12 |
25 | 3/4 | 57.5(2.26) | 15.7(0.62) | 31.3(1.23) | 15.9(0.63) | 38.0(1.50) | 35.0(1.38) |
SS-CM-ML25-RP16 |
25 | 1 | 60.1(2.37) | 18.3(0.72) | 31.3(1.23) | 19.8(0.78) | 38.0(1.50) | 41.0(1.61) |
SS-CM-ML28-RP16 |
28 | 1 | 70.1(2.76) | 18.3(0.72) | 36.6(1.44) | 19.8(0.78) | 46.0(1.81) | 41.0(1.61) |
SS-CM-ML28-RP20 |
28 | 1 1/4 | 73.9(2.91) | 19.8(0.78) | 36.6(1.44) | 21.8(0.86) | 46.0(1.81) | 50.0(1.97) |
SS-CM-ML3-RP2 |
3 | 1/8 | 30.0(1.18) | 7.1(0.28) | 12.9(0.51) | 2.4(0.09) | 12.0(0.47) | 14.0(0.55) |
SS-CM-ML3-RP4 |
3 | 1/4 | 35.3(1.39) | 11.2(0.44) | 12.9(0.51) | 2.4(0.09) | 12.0(0.47) | 19.0(0.75) |
SS-CM-ML30-RP20 |
30 | 1 1/4 | 76.5(3.01) | 19.8(0.78) | 39.6(1.56) | 26.2(1.03) | 50.0(1.97) | 50.0(1.97) |
SS-CM-ML32-RP20 |
32 | 1 1/4 | 78.9(3.11) | 19.8(0.78) | 42.0(1.65) | 28.6(1.13) | 50.0(1.97) | 50.0(1.97) |
SS-CM-ML38-RP24 |
38 | 1 1/2 | 89.3(3.52) | 20.6(0.81) | 49.4(1.94) | 31.8(1.25) | 60.0(2.36) | 55.0(2.17) |
SS-CM-ML4-RP2 |
4 | 1/8 | 30.7(1.21) | 7.1(0.28) | 13.7(0.54) | 2.4(0.09) | 12.0(0.47) | 14.0(0.55) |
SS-CM-ML6-RP2 |
6 | 1/8 | 32.3(1.27) | 7.1(0.28) | 15.3(0.60) | 4.0(0.16) | 14.0(0.55) | 14.0(0.55) |
SS-CM-ML6-RP4 |
6 | 1/4 | 37.6(1.48) | 11.2(0.44) | 15.3(0.60) | 4.8(0.19) | 14.0(0.55) | 19.0(0.75) |
SS-CM-ML6-RP6 |
6 | 3/8 | 38.9(1.53) | 11.2(0.44) | 15.3(0.60) | 4.8(0.19) | 14.0(0.55) | 22.0(0.87) |
SS-CM-ML6-RP8 |
6 | 1/2 | 44.7(1.76) | 14.2(0.56) | 15.3(0.60) | 4.8(0.19) | 14.0(0.55) | 27.0(1.06) |
SS-CM-ML8-RP2 |
8 | 1/8 | 33.3(1.31) | 7.1(0.28) | 16.2(0.64) | 4.0(0.16) | 16.0(0.63) | 15.0(0.59) |
SS-CM-ML8-RP4 |
8 | 1/4 | 38.5(1.52) | 11.2(0.44) | 16.2(0.64) | 5.9(0.23) | 16.0(0.63) | 19.0(0.75) |
SS-CM-ML8-RP6 |
8 | 3/8 | 39.8(1.57) | 11.2(0.44) | 16.2(0.64) | 6.4(0.25) | 16.0(0.63) | 22.0(0.87) |
SS-CM-ML8-RP8 |
8 | 1/2 | 45.6(1.80) | 14.2(0.56) | 16.2(0.64) | 6.4(0.25) | 16.0(0.63) | 27.0(1.06) |
Additional Details
Instrumentation tube fitting for high-pressure, leak-tight, vibration-resistant connections in process, analytical, and instrumentation piping systems. Interchangeable in form, fit and function with other major compression tube fitting brands.
Additional Information
Length
6 cm
Width
4 cm
Height
4 cm
Weight
0.1 kg

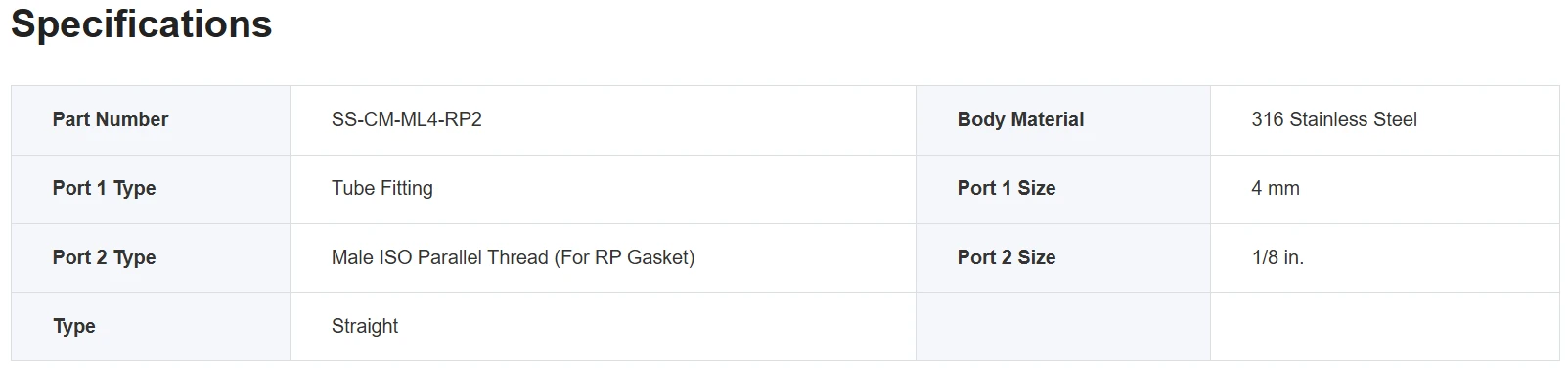

Specifications
Material
316/316L Stainless Steel (Ni content >= 28.5%)
Connection Style
Compression, double-ferrule tube fitting (FITOK 6D Series)
Standard / Certification
Tested to ASTM F1387; dimensionally interchangeable with other major compression tube fitting brands
Pressure Rating
Rated to the maximum working pressure of the mating FITOK tubing (fitting is not the pressure-limiting component)
Thread Type
ISO Parallel Thread (RP)
Tube Type
Metric Tube
Max working pressure
6000 psig psig
Operating temperature
-28 to +204 °C °C
FITOK Male Connectors — 316/316L stainless steel compression double-ferrule tube fittings (Metric Tube, ISO Parallel Thread (RP)), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
