FITOK Male Connectors (Metric (MS), Fractional Tube)
SKU:
Brand: FITOK
Category: Fittings and Accessories › Instrumentation Tube Fittings › Connectors
Tags: Fitok, Pipe Fitting, Connectors, Plumbing
FITOK Male Connectors — 316/316L stainless steel compression double-ferrule tube fittings (Fractional Tube, Metric Thread (MS)), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suff...
Contact us for pricing
This product requires a custom quote
Port 1 Size
Port 2 Size
Quantity
Description
FITOK Male Connectors — 316/316L stainless steel compression double-ferrule tube fittings (Fractional Tube, Metric Thread (MS)), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
Available Variants & Specifications
| Ordering No. | Port 1 Size | Port 2 Size | L (Length) | B (Thread) | C (Depth) | E (Min Orifice) | G (Nut Hex) | F (Body Hex) |
|---|---|---|---|---|---|---|---|---|
SS-CM-FL1-MS5 |
1/16 | M5 x 0.8 | 0.86(21.8) | 0.31(8.0) | 0.34(8.6) | 0.05(1.3) | 0.31(7.9) | 0.31(7.9) |
SS-CM-FL2-MS14 |
1/8 | M14 x 1.5 | 1.37(34.8) | 0.51(13.0) | 0.50(12.7) | 0.09(2.3) | 0.44(11.1) | 0.63(15.9) |
SS-CM-FL2-MS16 |
1/8 | M16 x 1.5 | 1.41(35.8) | 0.55(14.0) | 0.50(12.7) | 0.09(2.3) | 0.44(11.1) | 0.69(17.5) |
SS-CM-FL2-MS18 |
1/8 | M18 x 1.5 | 1.46(37.2) | 0.59(15.0) | 0.50(12.7) | 0.09(2.3) | 0.44(11.1) | 0.75(19.1) |
SS-CM-FL2-MS20 |
1/8 | M20 x 1.5 | 1.50(38.1) | 0.63(16.0) | 0.50(12.7) | 0.09(2.3) | 0.44(11.1) | 0.87(22.2) |
SS-CM-FL4-MS14 |
1/4 | M14 x 1.5 | 1.45(36.9) | 0.51(13.0) | 0.60(15.2) | 0.19(4.8) | 0.56(14.3) | 0.63(15.9) |
SS-CM-FL4-MS16 |
1/4 | M16 x 1.5 | 1.50(38.1) | 0.55(14.0) | 0.60(15.2) | 0.19(4.8) | 0.56(14.3) | 0.69(17.5) |
SS-CM-FL4-MS18 |
1/4 | M18 x 1.5 | 1.56(39.5) | 0.59(15.0) | 0.60(15.2) | 0.19(4.8) | 0.56(14.3) | 0.75(19.1) |
SS-CM-FL4-MS20 |
1/4 | M20 x 1.5 | 1.60(40.7) | 0.63(16.0) | 0.60(15.2) | 0.19(4.8) | 0.56(14.3) | 0.87(22.2) |
SS-CM-FL6-MS10 |
3/8 | M10 x 1.0 | 1.43(36.4) | 0.43(11.0) | 0.66(16.8) | 0.19(4.8) | 0.69(17.5) | 0.63(15.9) |
SS-CM-FL6-MS14 |
3/8 | M14 x 1.5 | 1.55(39.3) | 0.51(13.0) | 0.66(16.8) | 0.28(7.1) | 0.69(17.5) | 0.63(15.9) |
SS-CM-FL6-MS16 |
3/8 | M16 x 1.5 | 1.56(39.7) | 0.55(14.0) | 0.66(16.8) | 0.28(7.1) | 0.69(17.5) | 0.69(17.5) |
SS-CM-FL6-MS18 |
3/8 | M18 x 1.5 | 1.63(41.5) | 0.59(15.0) | 0.66(16.8) | 0.28(7.1) | 0.69(17.5) | 0.75(19.1) |
SS-CM-FL6-MS20 |
3/8 | M20 x 1.5 | 1.67(42.3) | 0.63(16.0) | 0.66(16.8) | 0.28(7.1) | 0.69(17.5) | 0.87(22.2) |
SS-CM-FL8-MS16 |
1/2 | M16 x 1.5 | 1.70(43.2) | 0.55(14.0) | 0.90(22.9) | 0.33(8.4) | 0.87(22.2) | 0.81(20.6) |
SS-CM-FL8-MS18 |
1/2 | M18 x 1.5 | 1.72(43.7) | 0.59(15.0) | 0.90(22.9) | 0.38(9.6) | 0.87(22.2) | 0.81(20.6) |
SS-CM-FL8-MS20 |
1/2 | M20 x 1.5 | 1.77(44.9) | 0.63(16.0) | 0.90(22.9) | 0.41(10.4) | 0.87(22.2) | 0.87(22.2) |
SS-CM-FL8-MS22 |
1/2 | M22 x 1.5 | 1.85(47.0) | 0.67(17.0) | 0.90(22.9) | 0.41(10.4) | 0.87(22.2) | 0.94(23.8) |
Additional Details
Instrumentation tube fitting for high-pressure, leak-tight, vibration-resistant connections in process, analytical, and instrumentation piping systems. Interchangeable in form, fit and function with other major compression tube fitting brands.
Additional Information
Length
6 cm
Width
4 cm
Height
4 cm
Weight
0.1 kg

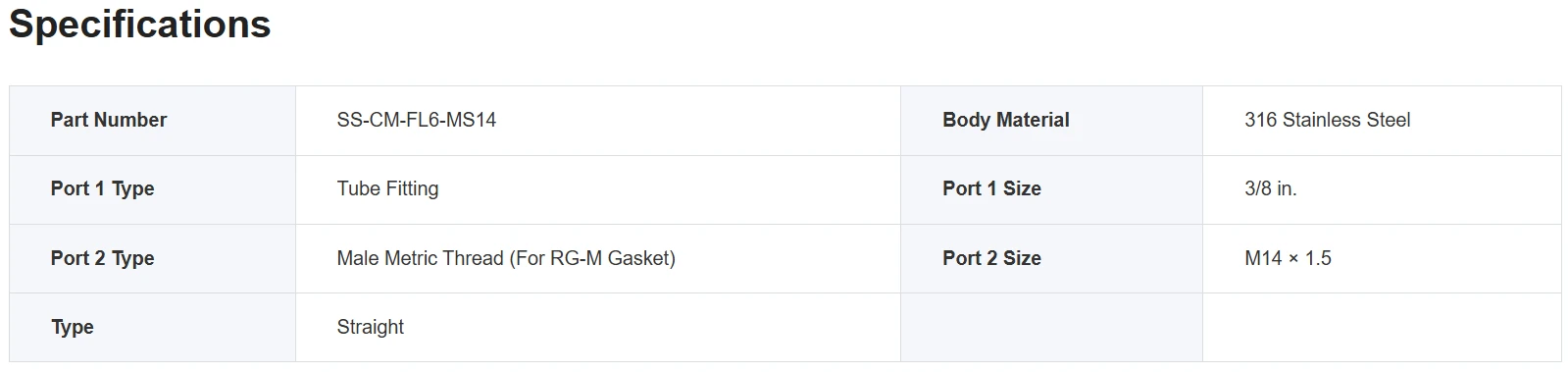

Specifications
Material
316/316L Stainless Steel (Ni content >= 28.5%)
Connection Style
Compression, double-ferrule tube fitting (FITOK 6D Series)
Standard / Certification
Tested to ASTM F1387; dimensionally interchangeable with other major compression tube fitting brands
Pressure Rating
Rated to the maximum working pressure of the mating FITOK tubing (fitting is not the pressure-limiting component)
Thread Type
Metric Thread (MS)
Tube Type
Fractional Tube
Max working pressure
6000 psig psig
Operating temperature
-28 to +204 °C °C
