FITOK Male Connectors (NPT, Metric Tube)
SKU:
SS-CM-ML28-NS16
Brand: FITOK
Category: Fittings and Accessories › Instrumentation Tube Fittings › Connectors
Tags: Fitok, Pipe Fitting, Connectors, Plumbing
FITOK Male Connectors — 316/316L stainless steel compression double-ferrule tube fittings (Metric Tube, NPT Thread), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as publis...
Contact us for pricing
This product requires a custom quote
In Stock
Port 1 Size
Port 2 Size
Quantity
Description
FITOK Male Connectors — 316/316L stainless steel compression double-ferrule tube fittings (Metric Tube, NPT Thread), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
Available Variants & Specifications
| Ordering No. | Port 1 Size | Port 2 Size | L (Length) | B (Thread) | C (Depth) | E (Min Orifice) | G (Nut Hex) | F (Body Hex) |
|---|---|---|---|---|---|---|---|---|
SS-CM-ML10-NS12 |
10 | 3/4 | 48.0(1.89) | 19.1(0.75) | 17.2(0.68) | 7.9(0.31) | 19.0(0.75) | 27.0(1.06) |
SS-CM-ML10-NS16 |
10 | 1 | 54.6(2.15) | 23.9(0.94) | 17.2(0.68) | 7.9(0.31) | 19.0(0.75) | 35.0(1.38) |
SS-CM-ML10-NS2 |
10 | 1/8 | 36.3(1.43) | 9.7(0.38) | 17.2(0.68) | 4.8(0.19) | 19.0(0.75) | 18.0(0.71) |
SS-CM-ML10-NS4 |
10 | 1/4 | 40.9(1.61) | 14.2(0.56) | 17.2(0.68) | 7.1(0.28) | 19.0(0.75) | 18.0(0.71) |
SS-CM-ML10-NS6 |
10 | 3/8 | 40.9(1.61) | 14.2(0.56) | 17.2(0.68) | 7.9(0.31) | 19.0(0.75) | 18.0(0.71) |
SS-CM-ML10-NS8 |
10 | 1/2 | 45.8(1.80) | 19.1(0.75) | 17.2(0.68) | 7.9(0.31) | 19.0(0.75) | 22.0(0.87) |
SS-CM-ML12-NS12 |
12 | 3/4 | 49.1(1.93) | 19.1(0.75) | 22.8(0.90) | 9.5(0.37) | 22.0(0.87) | 27.0(1.06) |
SS-CM-ML12-NS2 |
12 | 1/8 | 38.8(1.53) | 9.7(0.38) | 22.8(0.90) | 4.8(0.19) | 22.0(0.87) | 22.0(0.87) |
SS-CM-ML12-NS4 |
12 | 1/4 | 43.4(1.71) | 14.2(0.56) | 22.8(0.90) | 7.1(0.28) | 22.0(0.87) | 22.0(0.87) |
SS-CM-ML12-NS6 |
12 | 3/8 | 43.4(1.71) | 14.2(0.56) | 22.8(0.90) | 9.5(0.37) | 22.0(0.87) | 22.0(0.87) |
SS-CM-ML12-NS8 |
12 | 1/2 | 49.0(1.93) | 19.1(0.75) | 22.8(0.90) | 9.5(0.37) | 22.0(0.87) | 22.0(0.87) |
SS-CM-ML14-NS12 |
14 | 3/4 | 49.1(1.93) | 19.1(0.75) | 24.4(0.96) | 11.1(0.44) | 25.0(0.98) | 27.0(1.06) |
SS-CM-ML14-NS2 |
14 | 1/8 | 39.9(1.57) | 9.7(0.38) | 24.4(0.96) | 4.8(0.19) | 25.0(0.98) | 24.0(0.94) |
SS-CM-ML14-NS4 |
14 | 1/4 | 44.1(1.74) | 14.2(0.56) | 24.4(0.96) | 7.1(0.28) | 25.0(0.98) | 24.0(0.94) |
SS-CM-ML14-NS6 |
14 | 3/8 | 44.1(1.74) | 14.2(0.56) | 24.4(0.96) | 9.5(0.37) | 25.0(0.98) | 24.0(0.94) |
SS-CM-ML14-NS8 |
14 | 1/2 | 49.0(1.93) | 19.1(0.75) | 24.4(0.96) | 11.1(0.44) | 25.0(0.98) | 24.0(0.94) |
SS-CM-ML15-NS12 |
15 | 3/4 | 50.5(1.99) | 19.1(0.75) | 24.4(0.96) | 11.9(0.47) | 25.0(0.98) | 27.0(1.06) |
SS-CM-ML15-NS16 |
15 | 1 | 57.1(2.25) | 23.9(0.94) | 24.4(0.96) | 11.9(0.47) | 25.0(0.98) | 35.0(1.38) |
SS-CM-ML15-NS8 |
15 | 1/2 | 49.0(1.93) | 19.1(0.75) | 24.4(0.96) | 11.9(0.47) | 25.0(0.98) | 24.0(0.94) |
SS-CM-ML16-NS12 |
16 | 3/4 | 50.5(1.99) | 19.1(0.75) | 24.4(0.96) | 12.7(0.5) | 25.0(0.98) | 27.0(1.06) |
SS-CM-ML16-NS4 |
16 | 1/4 | 44.1(1.74) | 14.2(0.56) | 24.4(0.96) | 7.1(0.28) | 25.0(0.98) | 24.0(0.94) |
SS-CM-ML16-NS6 |
16 | 3/8 | 44.1(1.74) | 14.2(0.56) | 24.4(0.96) | 9.5(0.37) | 25.0(0.98) | 24.0(0.94) |
SS-CM-ML16-NS8 |
16 | 1/2 | 49.0(1.93) | 19.1(0.75) | 24.4(0.96) | 11.9(0.47) | 25.0(0.98) | 24.0(0.94) |
SS-CM-ML18-NS12 |
18 | 3/4 | 50.5(1.99) | 19.1(0.75) | 24.4(0.96) | 15.1(0.59) | 30.0(1.18) | 27.0(1.06) |
SS-CM-ML18-NS6 |
18 | 3/8 | 45.6(1.80) | 14.2(0.56) | 24.4(0.96) | 9.5(0.37) | 30.0(1.18) | 27.0(1.06) |
SS-CM-ML18-NS8 |
18 | 1/2 | 50.5(1.99) | 19.1(0.75) | 24.4(0.96) | 11.9(0.47) | 30.0(1.18) | 27.0(1.06) |
SS-CM-ML2-NS2 |
2 | 1/8 | 30.5(1.20) | 9.7(0.38) | 12.9(0.51) | 1.7(0.07) | 12.0(0.47) | 12.0(0.47) |
SS-CM-ML20-NS12 |
20 | 3/4 | 52.3(2.06) | 19.1(0.75) | 26.0(1.02) | 15.9(0.63) | 32.0(1.26) | 30.0(1.18) |
SS-CM-ML20-NS16 |
20 | 1 | 57.1(2.25) | 23.9(0.94) | 26.0(1.02) | 15.9(0.63) | 32.0(1.26) | 35.0(1.38) |
SS-CM-ML20-NS8 |
20 | 1/2 | 52.3(2.06) | 19.1(0.75) | 26.0(1.02) | 11.9(0.47) | 32.0(1.26) | 30.0(1.18) |
SS-CM-ML22-NS12 |
22 | 3/4 | 52.3(2.06) | 19.1(0.75) | 26.0(1.02) | 15.9(0.63) | 32.0(1.26) | 30.0(1.18) |
SS-CM-ML22-NS16 |
22 | 1 | 57.1(2.25) | 23.9(0.94) | 26.0(1.02) | 18.3(0.72) | 32.0(1.26) | 35.0(1.38) |
SS-CM-ML22-NS8 |
22 | 1/2 | 52.3(2.06) | 19.1(0.75) | 26.0(1.02) | 11.9(0.47) | 32.0(1.26) | 30.0(1.18) |
SS-CM-ML25-NS12 |
25 | 3/4 | 57.5(2.26) | 19.1(0.75) | 31.3(1.23) | 15.9(0.63) | 38.0(1.50) | 35.0(1.38) |
SS-CM-ML25-NS16 |
25 | 1 | 62.3(2.45) | 23.9(0.94) | 31.3(1.23) | 21.8(0.86) | 38.0(1.50) | 35.0(1.38) |
SS-CM-ML25-NS8 |
25 | 1/2 | 57.5(2.26) | 19.1(0.75) | 31.3(1.23) | 11.9(0.47) | 38.0(1.50) | 35.0(1.38) |
SS-CM-ML28-NS16 |
28 | 1 | 72.4(2.85) | 23.9(0.94) | 36.6(1.44) | 21.8(0.86) | 46.0(1.81) | 41.0(1.61) |
SS-CM-ML28-NS20 |
28 | 1 1/4 | 73.1(2.88) | 23.9(0.94) | 36.6(1.44) | 21.8(0.86) | 46.0(1.81) | 46.0(1.81) |
SS-CM-ML3-NS2 |
3 | 1/8 | 30.5(1.20) | 9.7(0.38) | 12.9(0.51) | 2.4(0.09) | 12.0(0.47) | 12.0(0.47) |
SS-CM-ML3-NS4 |
3 | 1/4 | 35.6(1.40) | 14.2(0.56) | 12.9(0.51) | 2.4(0.09) | 12.0(0.47) | 14.0(0.55) |
SS-CM-ML30-NS20 |
30 | 1 1/4 | 77.2(3.04) | 23.9(0.94) | 39.6(1.56) | 26.2(1.03) | 50.0(1.97) | 46.0(1.81) |
SS-CM-ML32-NS20 |
32 | 1 1/4 | 79.6(3.13) | 23.9(0.94) | 42.0(1.65) | 28.6(1.13) | 50.0(1.97) | 46.0(1.81) |
SS-CM-ML38-NS24 |
38 | 1 1/2 | 91.6(3.61) | 26.2(1.03) | 49.4(1.94) | 33.7(1.33) | 60.0(2.36) | 55.0(2.17) |
SS-CM-ML4-NS2 |
4 | 1/8 | 31.2(1.23) | 9.7(0.38) | 13.7(0.54) | 2.4(0.09) | 12.0(0.47) | 12.0(0.47) |
SS-CM-ML4-NS4 |
4 | 1/4 | 36.3(1.43) | 14.2(0.56) | 13.7(0.54) | 2.4(0.09) | 12.0(0.47) | 14.0(0.55) |
SS-CM-ML6-NS2 |
6 | 1/8 | 32.8(1.29) | 9.7(0.38) | 15.3(0.60) | 4.8(0.19) | 14.0(0.55) | 14.0(0.55) |
SS-CM-ML6-NS4 |
6 | 1/4 | 37.9(1.49) | 14.2(0.56) | 15.3(0.60) | 4.8(0.19) | 14.0(0.55) | 14.0(0.55) |
SS-CM-ML6-NS6 |
6 | 3/8 | 38.4(1.51) | 14.2(0.56) | 15.3(0.60) | 4.8(0.19) | 14.0(0.55) | 18.0(0.71) |
SS-CM-ML6-NS8 |
6 | 1/2 | 44.7(1.76) | 19.1(0.75) | 15.3(0.60) | 4.8(0.19) | 14.0(0.55) | 22.0(0.87) |
SS-CM-ML8-NS2 |
8 | 1/8 | 34.2(1.35) | 9.7(0.38) | 16.2(0.64) | 4.8(0.19) | 16.0(0.63) | 15.0(0.59) |
SS-CM-ML8-NS4 |
8 | 1/4 | 38.7(1.52) | 14.2(0.56) | 16.2(0.64) | 6.4(0.25) | 16.0(0.63) | 15.0(0.59) |
SS-CM-ML8-NS6 |
8 | 3/8 | 39.3(1.55) | 14.2(0.56) | 16.2(0.64) | 6.4(0.25) | 16.0(0.63) | 18.0(0.71) |
SS-CM-ML8-NS8 |
8 | 1/2 | 45.6(1.80) | 19.1(0.75) | 16.2(0.64) | 6.4(0.25) | 16.0(0.63) | 22.0(0.87) |
Additional Details
Instrumentation tube fitting for high-pressure, leak-tight, vibration-resistant connections in process, analytical, and instrumentation piping systems. Interchangeable in form, fit and function with other major compression tube fitting brands.
Additional Information
Length
6 cm
Width
4 cm
Height
4 cm
Weight
0.1 kg

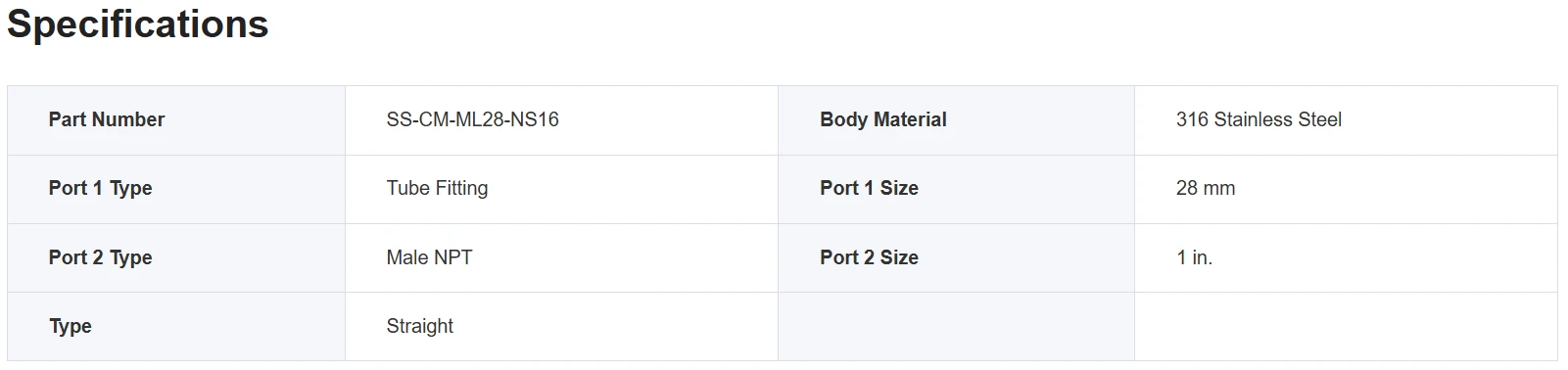

Specifications
General
Material
316/316L Stainless Steel (Ni content >= 28.5%)
Connection Style
Compression, double-ferrule tube fitting (FITOK 6D Series)
Standard / Certification
Tested to ASTM F1387; dimensionally interchangeable with other major compression tube fitting brands
Pressure Rating
Rated to the maximum working pressure of the mating FITOK tubing (fitting is not the pressure-limiting component)
Thread Type
NPT Thread
Tube Type
Metric Tube
Technical Specifications
Max working pressure
6000 psig psig
Operating temperature
-28 to +204 °C °C
