FITOK Male Connectors (SAE/MS Straights (OST), Fractional Tube)
SKU:
Brand: FITOK
Category: Fittings and Accessories › Instrumentation Tube Fittings › Connectors
Tags: Fitok, Pipe Fitting, Connectors, Plumbing
FITOK Male Connectors — 316/316L stainless steel compression double-ferrule tube fittings (Fractional Tube, SAE/MS Straight Threads (OST)), FITOK 6D Series. Ordering numbers shown are FITOK's part-...
Contact us for pricing
This product requires a custom quote
Port 1 Size
Port 2 Size
Port 3 Size
Quantity
Description
FITOK Male Connectors — 316/316L stainless steel compression double-ferrule tube fittings (Fractional Tube, SAE/MS Straight Threads (OST)), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
Available Variants & Specifications
| Ordering No. | Port 1 Size | Port 2 Size | Port 3 Size | L (Length) | B (Thread) | C (Depth) | E (Min Orifice) | G (Nut Hex) | F (Body Hex) |
|---|---|---|---|---|---|---|---|---|---|
SS-CM-FL1-OST5 |
1/16 | 2 | 5/16-24 | 1.05(26.7) | 0.34(8.6) | 0.34(8.6) | 0.05(1.3) | 0.31(7.9) | 0.56(14.3) |
SS-CM-FL12-OST17 |
3/4 | 12 | 1 1/16-12 | 2.06(52.3) | 0.56(14.2) | 0.96(24.4) | 0.62(15.7) | 1.13(28.6) | 1.50(38.1) |
SS-CM-FL16-OST21 |
1 | 16 | 1 5/16-12 | 2.29(58.2) | 0.56(14.2) | 1.23(31.2) | 0.88(22.4) | 1.50(38.1) | 1.75(44.5) |
SS-CM-FL2-OST5 |
1/8 | 2 | 5/16-24 | 1.29(32.8) | 0.34(8.6) | 0.50(12.7) | 0.09(2.3) | 0.44(11.1) | 0.56(14.3) |
SS-CM-FL3-OST6 |
3/16 | 3 | 3/8-24 | 1.35(34.3) | 0.38(9.7) | 0.54(13.7) | 0.12(3.0) | 0.50(12.7) | 0.63(15.9) |
SS-CM-FL4-OST7 |
1/4 | 4 | 7/16-20 | 1.51(38.4) | 0.41(10.4) | 0.60(15.2) | 0.19(4.8) | 0.56(14.3) | 0.75(19.1) |
SS-CM-FL5-OST8 |
5/16 | 5 | 1/2-20 | 1.60(40.6) | 0.44(11.2) | 0.64(16.3) | 0.25(6.4) | 0.63(15.9) | 0.87(22.2) |
SS-CM-FL6-OST9 |
3/8 | 6 | 9/16-18 | 1.67(42.4) | 0.47(11.9) | 0.66(16.8) | 0.28(7.1) | 0.69(17.5) | 0.94(23.8) |
SS-CM-FL8-OST12 |
1/2 | 8 | 3/4-16 | 1.81(46.0) | 0.47(11.9) | 0.90(22.9) | 0.41(10.4) | 0.87(22.2) | 1.13(28.6) |
Additional Details
Instrumentation tube fitting for high-pressure, leak-tight, vibration-resistant connections in process, analytical, and instrumentation piping systems. Interchangeable in form, fit and function with other major compression tube fitting brands.
Additional Information
Length
6 cm
Width
4 cm
Height
4 cm
Weight
0.1 kg

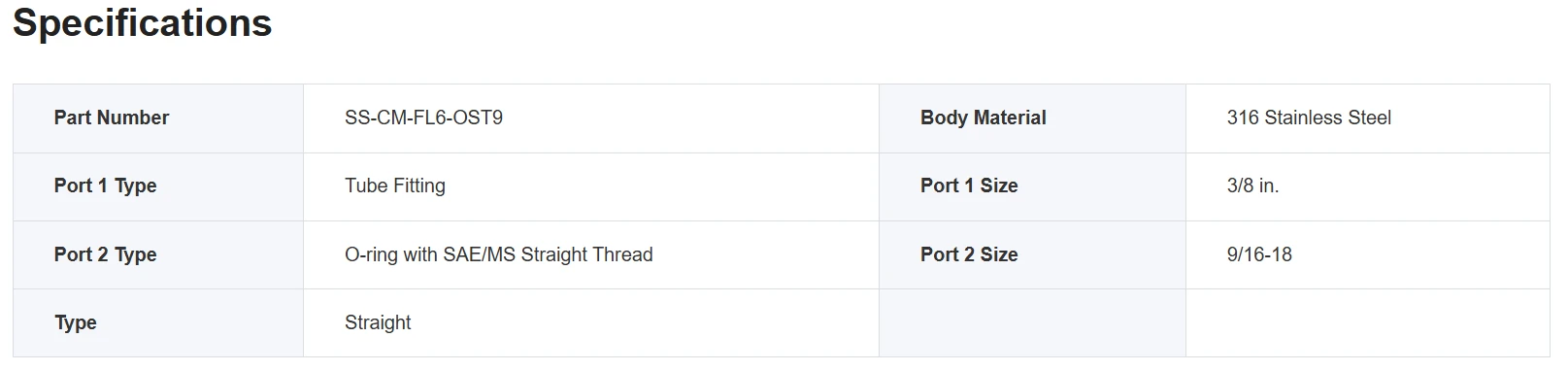

Specifications
Material
316/316L Stainless Steel (Ni content >= 28.5%)
Connection Style
Compression, double-ferrule tube fitting (FITOK 6D Series)
Standard / Certification
Tested to ASTM F1387; dimensionally interchangeable with other major compression tube fitting brands
Pressure Rating
Rated to the maximum working pressure of the mating FITOK tubing (fitting is not the pressure-limiting component)
Thread Type
SAE/MS Straight Threads (OST)
Tube Type
Fractional Tube
Max working pressure
6000 psig psig
Operating temperature
-28 to +204 °C °C
FITOK Male Connectors — 316/316L stainless steel compression double-ferrule tube fittings (Fractional Tube, SAE/MS Straight Threads (OST)), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
Available Variants & Specifications
| Ordering No. | Port 1 Size | Port 2 Size | Port 3 Size | L (Length) | B (Thread) | C (Depth) | E (Min Orifice) | G (Nut Hex) | F (Body Hex) |
|---|---|---|---|---|---|---|---|---|---|
SS-CM-FL1-OST5 |
1/16 | 2 | 5/16-24 | 1.05(26.7) | 0.34(8.6) | 0.34(8.6) | 0.05(1.3) | 0.31(7.9) | 0.56(14.3) |
SS-CM-FL12-OST17 |
3/4 | 12 | 1 1/16-12 | 2.06(52.3) | 0.56(14.2) | 0.96(24.4) | 0.62(15.7) | 1.13(28.6) | 1.50(38.1) |
SS-CM-FL16-OST21 |
1 | 16 | 1 5/16-12 | 2.29(58.2) | 0.56(14.2) | 1.23(31.2) | 0.88(22.4) | 1.50(38.1) | 1.75(44.5) |
SS-CM-FL2-OST5 |
1/8 | 2 | 5/16-24 | 1.29(32.8) | 0.34(8.6) | 0.50(12.7) | 0.09(2.3) | 0.44(11.1) | 0.56(14.3) |
SS-CM-FL3-OST6 |
3/16 | 3 | 3/8-24 | 1.35(34.3) | 0.38(9.7) | 0.54(13.7) | 0.12(3.0) | 0.50(12.7) | 0.63(15.9) |
SS-CM-FL4-OST7 |
1/4 | 4 | 7/16-20 | 1.51(38.4) | 0.41(10.4) | 0.60(15.2) | 0.19(4.8) | 0.56(14.3) | 0.75(19.1) |
SS-CM-FL5-OST8 |
5/16 | 5 | 1/2-20 | 1.60(40.6) | 0.44(11.2) | 0.64(16.3) | 0.25(6.4) | 0.63(15.9) | 0.87(22.2) |
SS-CM-FL6-OST9 |
3/8 | 6 | 9/16-18 | 1.67(42.4) | 0.47(11.9) | 0.66(16.8) | 0.28(7.1) | 0.69(17.5) | 0.94(23.8) |
SS-CM-FL8-OST12 |
1/2 | 8 | 3/4-16 | 1.81(46.0) | 0.47(11.9) | 0.90(22.9) | 0.41(10.4) | 0.87(22.2) | 1.13(28.6) |
Additional Details
Instrumentation tube fitting for high-pressure, leak-tight, vibration-resistant connections in process, analytical, and instrumentation piping systems. Interchangeable in form, fit and function with other major compression tube fitting brands.
