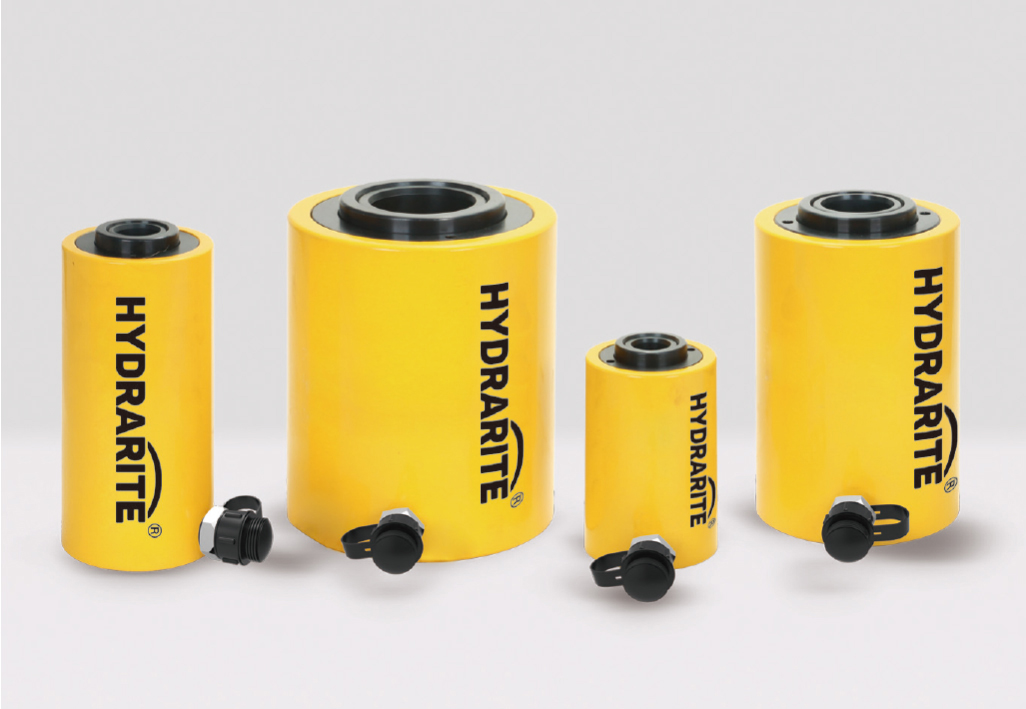

Hydrarite HHYG-K Series Hollow Plunger Single Acting Cylinder
SKU:
Brand: Hydrarite
Category: Hydraulic Tools › Cylinders & Lifting Products › Hydraulic Cylinders
Tags: pulling-tensioning, hollow-plunger, hydraulic-cylinder
Hydrarite HHYG-K Hollow Plunger Single Acting Cylinder The Hydrarite HHYG-K Series features a unique hollow piston rod layout that accommodates rods, cables, or shafts. This allows the cyl...
RM590.00
Price range: RM420.00 - RM1,650.00
Capacity (Tons)
Center Hole Dia (mm)
Stroke (mm)
Quantity
Description
Hydrarite HHYG-K Hollow Plunger Single Acting Cylinder
The Hydrarite HHYG-K Series features a unique hollow piston rod layout that accommodates rods, cables, or shafts. This allows the cylinder to perform both pulling and pushing operations, making it an indispensable tool for tensioning cables, pulling bushings/sleeves, and testing structural anchors.
Additional Details
Special Mechanical Attributes:

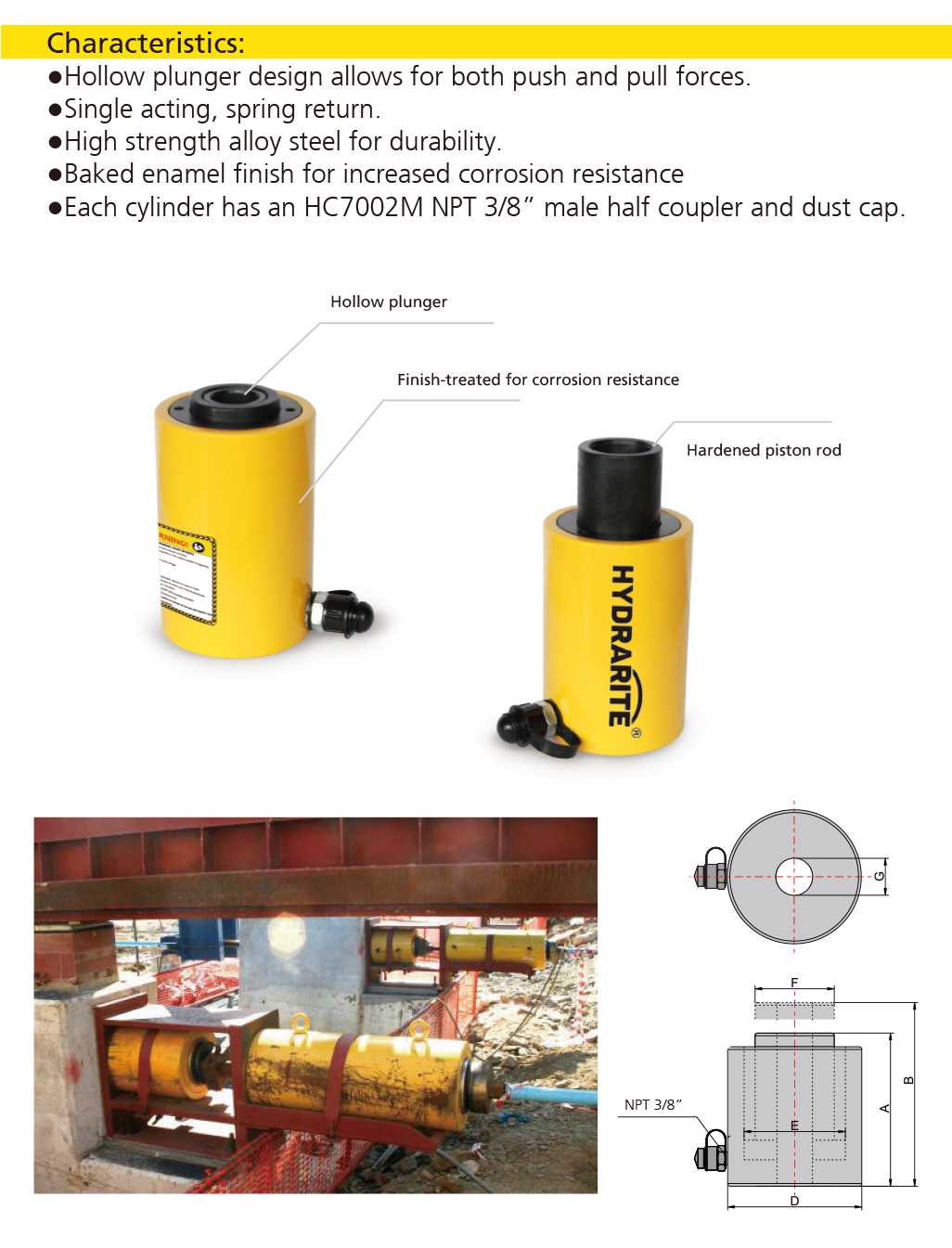

- Dual-purpose hollow center plunger design allows both pulling force and standard pushing force.
- High-strength return springs and heavy-duty collar threads designed to withstand extreme side-load forces.
- Hard-chrome plated plunger protects internal sealing surfaces from dirt and abrasive friction.
- Fitted with high-pressure quick-connect hydraulic couplers.
Additional Information
Length
25 cm
Width
6 cm
Height
6 cm
Weight
0.8 kg
Specifications
No Specifications Available
Technical specifications have not been added yet.
Hydrarite HHYG-K Hollow Plunger Single Acting Cylinder
The Hydrarite HHYG-K Series features a unique hollow piston rod layout that accommodates rods, cables, or shafts. This allows the cylinder to perform both pulling and pushing operations, making it an indispensable tool for tensioning cables, pulling bushings/sleeves, and testing structural anchors.
Additional Details
Special Mechanical Attributes:
- Dual-purpose hollow center plunger design allows both pulling force and standard pushing force.
- High-strength return springs and heavy-duty collar threads designed to withstand extreme side-load forces.
- Hard-chrome plated plunger protects internal sealing surfaces from dirt and abrasive friction.
- Fitted with high-pressure quick-connect hydraulic couplers.
