Hydrarite HHYG Series General Purpose Single Acting Cylinder
SKU:
Brand: Hydrarite
Category: Hydraulic Tools › Cylinders & Lifting Products › Hydraulic Cylinders
Hydrarite HHYG General Purpose Single Acting Hydraulic Cylinder The Hydrarite HHYG General Purpose Series features ultra-reliable single-acting cylinders driven by heavy-duty spring-return...
Contact us for pricing
This product requires a custom quote
Capacity (Tons)
Cylinder Height (mm)
Stroke (mm)
Quantity
Description

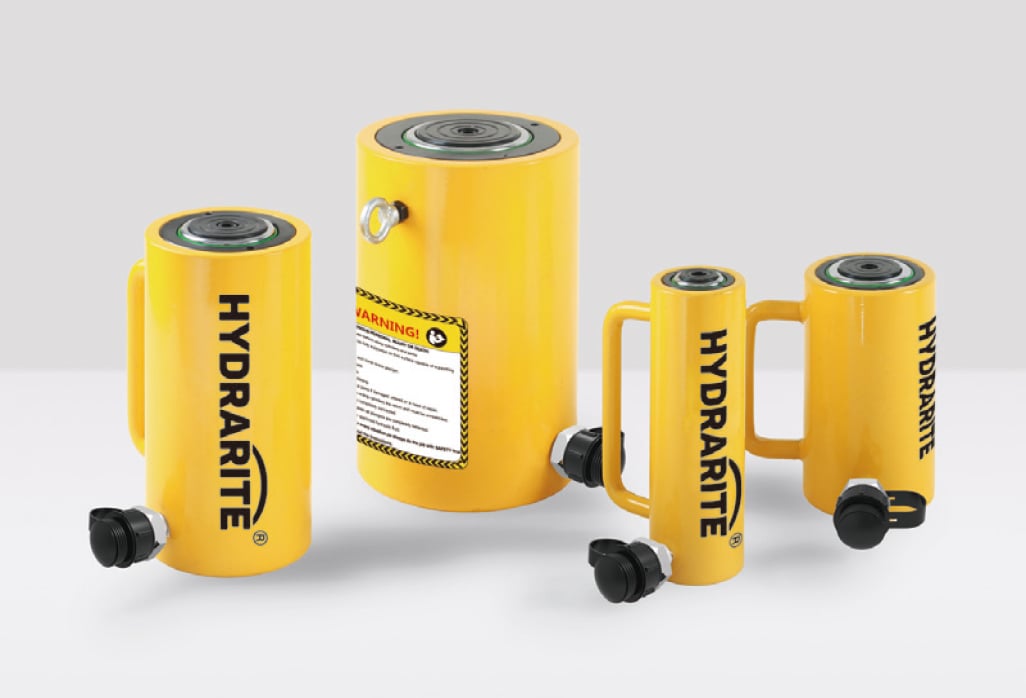

Hydrarite HHYG General Purpose Single Acting Hydraulic Cylinder
The Hydrarite HHYG General Purpose Series features ultra-reliable single-acting cylinders driven by heavy-duty spring-returns. Built to withstand standard high-stress manufacturing environments, these industrial workhorses are ideal for standard lifting, aligning, pushing, and pressing operations across multiple orientations.
Additional Details

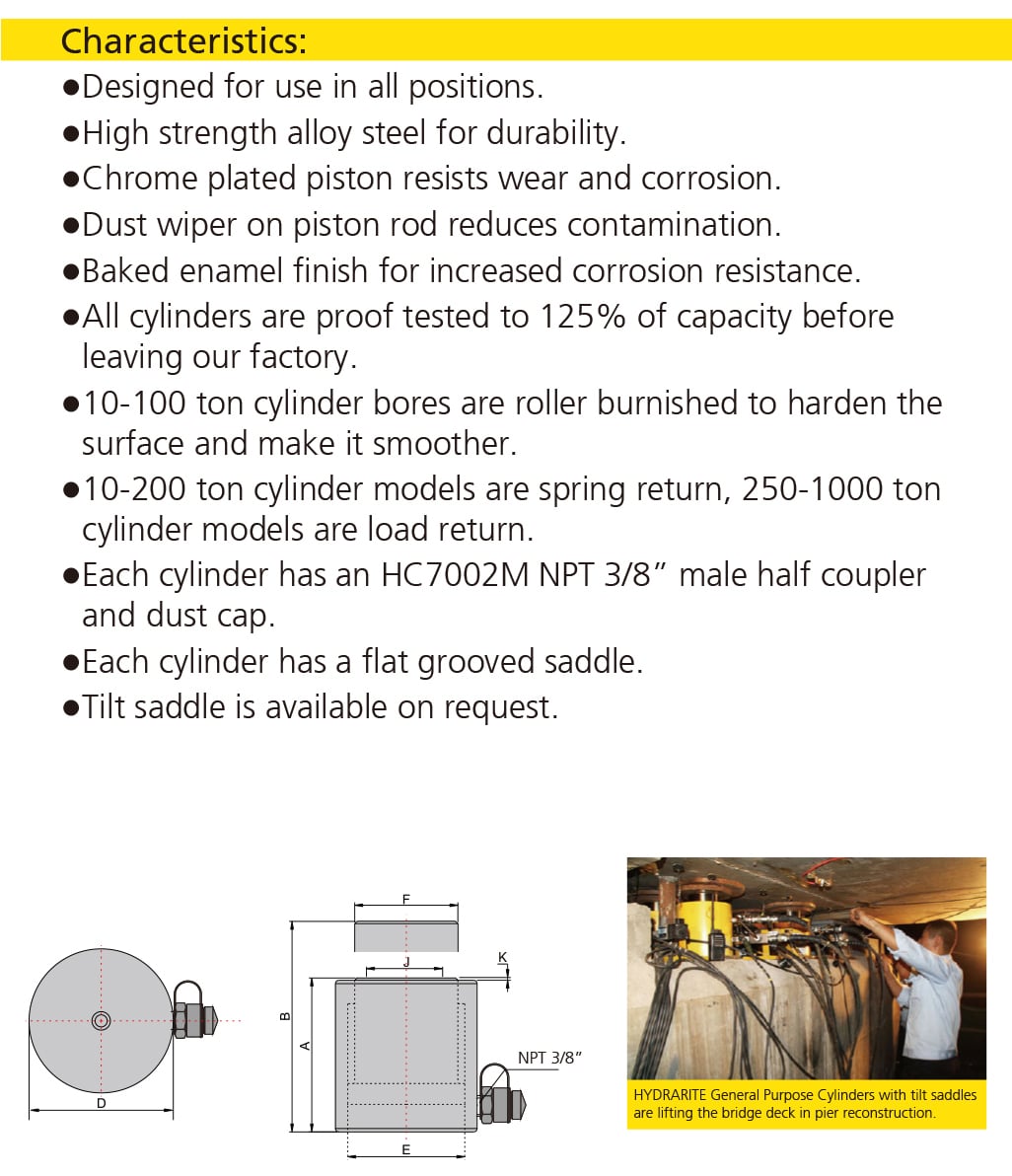

Design features & specifications:
- High-strength alloy steel body with hard-enamel finish for superior durability and corrosion resistance.
- Heavy-duty return spring provides fast and predictable retraction behavior.
- Collar threads, plunger threads, and base mounting holes allow for easy and secure fixturing.
- Standard high-flow quick coupler (3/8" NPT) with protective rubber dust caps.
Additional Information
Length
25 cm
Width
6 cm
Height
6 cm
Weight
0.8 kg
Specifications
No Specifications Available
Technical specifications have not been added yet.
Hydrarite HHYG General Purpose Single Acting Hydraulic Cylinder
The Hydrarite HHYG General Purpose Series features ultra-reliable single-acting cylinders driven by heavy-duty spring-returns. Built to withstand standard high-stress manufacturing environments, these industrial workhorses are ideal for standard lifting, aligning, pushing, and pressing operations across multiple orientations.
Additional Details
Design features & specifications:
- High-strength alloy steel body with hard-enamel finish for superior durability and corrosion resistance.
- Heavy-duty return spring provides fast and predictable retraction behavior.
- Collar threads, plunger threads, and base mounting holes allow for easy and secure fixturing.
- Standard high-flow quick coupler (3/8" NPT) with protective rubber dust caps.
