FITOK Bulkhead Male Connectors (Fractional Tube)
SKU:
Brand: FITOK
Category: Fittings and Accessories › Instrumentation Tube Fittings › Connectors
Tags: Fitok, Pipe Fitting, Connectors, Plumbing
FITOK Bulkhead Male Connectors — 316/316L stainless steel compression double-ferrule tube fittings (Fractional Tube), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as publi...
Contact us for pricing
This product requires a custom quote
Port 1 Size
Port 2 Size
Quantity
Description
FITOK Bulkhead Male Connectors — 316/316L stainless steel compression double-ferrule tube fittings (Fractional Tube), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
Available Variants & Specifications
| Ordering No. | Port 1 Size | Port 2 Size | L (Length) | B (Thread) | C (Depth) | E (Min Orifice) | G (Nut Hex) | F (Body Hex) | Gx |
|---|---|---|---|---|---|---|---|---|---|
SS-BCM-FL10-AN10 |
5/8 | 5/8 | 2.74(69.6) | 0.76(19.3) | 0.96(24.4) | 0.48(12.3) | 1.00(25.4) | 1.06(27.0) | 1.06(27.0) |
SS-BCM-FL12-AN12 |
3/4 | 3/4 | 3.11(79.0) | 0.86(21.8) | 0.96(24.4) | 0.61(15.5) | 1.13(28.6) | 1.19(30.2) | 1.19(30.2) |
SS-BCM-FL16-AN16 |
1 | 1 | 3.64(92.5) | 0.91(23.1) | 1.23(31.2) | 0.84(21.3) | 1.50(38.1) | 1.63(41.3) | 1.63(41.3) |
SS-BCM-FL2-AN2 |
1/8 | 1/8 | 1.91(48.5) | 0.45(11.4) | 0.50(12.7) | 0.06(1.5) | 0.44(11.1) | 0.50(12.7) | 0.50(12.7) |
SS-BCM-FL2-AN4 |
1/8 | 1/4 | 2.04(51.8) | 0.55(14.0) | 0.50(12.7) | 0.09(2.3) | 0.44(11.1) | 0.63(15.9) | 0.50(12.7) |
SS-BCM-FL3-AN3 |
3/16 | 3/16 | 1.98(50.3) | 0.48(12.2) | 0.54(13.7) | 0.12(3.0) | 0.50(12.7) | 0.56(14.3) | 0.56(14.3) |
SS-BCM-FL4-AN4 |
1/4 | 1/4 | 2.12(53.8) | 0.55(14.0) | 0.60(15.2) | 0.17(4.3) | 0.56(14.3) | 0.63(15.9) | 0.63(15.9) |
SS-BCM-FL5-AN5 |
5/16 | 5/16 | 2.21(56.1) | 0.55(14.0) | 0.64(16.2) | 0.23(5.8) | 0.63(15.9) | 0.69(17.5) | 0.69(17.5) |
SS-BCM-FL6-AN4 |
3/8 | 1/4 | 2.25(57.2) | 0.55(14.0) | 0.66(16.8) | 0.17(4.3) | 0.69(17.5) | 0.75(19.1) | 0.75(19.1) |
SS-BCM-FL6-AN6 |
3/8 | 3/8 | 2.25(57.2) | 0.56(14.2) | 0.66(16.8) | 0.28(7.1) | 0.69(17.5) | 0.75(19.1) | 0.75(19.1) |
SS-BCM-FL8-AN8 |
1/2 | 1/2 | 2.59(65.8) | 0.66(16.8) | 0.90(22.8) | 0.39(9.9) | 0.87(22.2) | 0.94(23.8) | 0.94(23.8) |
Additional Details
Instrumentation tube fitting for high-pressure, leak-tight, vibration-resistant connections in process, analytical, and instrumentation piping systems. Interchangeable in form, fit and function with other major compression tube fitting brands.
Additional Information
Length
6 cm
Width
4 cm
Height
4 cm
Weight
0.1 kg

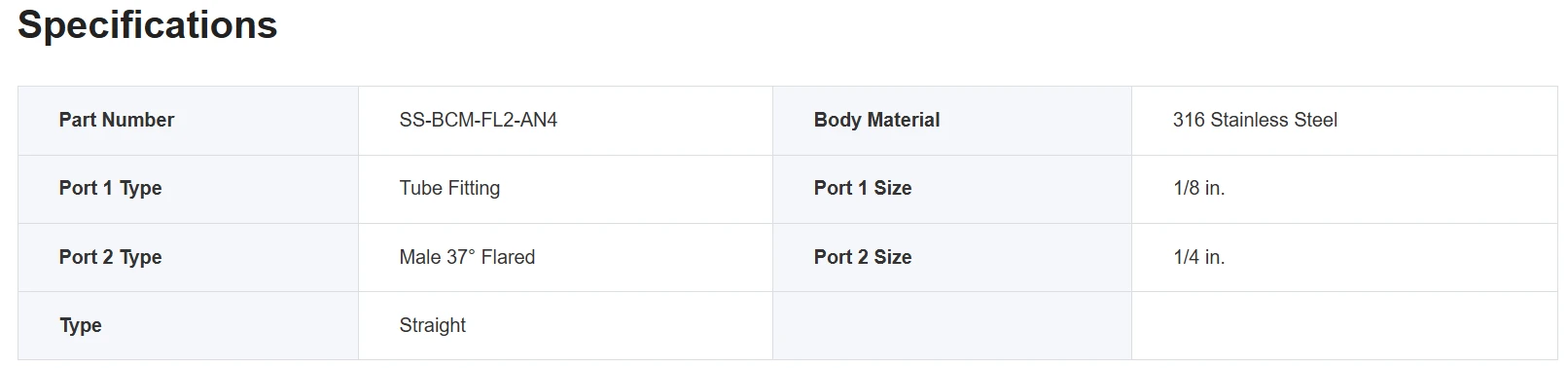

Specifications
Material
316/316L Stainless Steel (Ni content >= 28.5%)
Connection Style
Compression, double-ferrule tube fitting (FITOK 6D Series)
Standard / Certification
Tested to ASTM F1387; dimensionally interchangeable with other major compression tube fitting brands
Pressure Rating
Rated to the maximum working pressure of the mating FITOK tubing (fitting is not the pressure-limiting component)
Thread Type
37 Flare (AN)
Tube Type
Fractional Tube
Max working pressure
6000 psig psig
Operating temperature
-28 to +204 °C °C
FITOK Bulkhead Male Connectors — 316/316L stainless steel compression double-ferrule tube fittings (Fractional Tube), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
Available Variants & Specifications
| Ordering No. | Port 1 Size | Port 2 Size | L (Length) | B (Thread) | C (Depth) | E (Min Orifice) | G (Nut Hex) | F (Body Hex) | Gx |
|---|---|---|---|---|---|---|---|---|---|
SS-BCM-FL10-AN10 |
5/8 | 5/8 | 2.74(69.6) | 0.76(19.3) | 0.96(24.4) | 0.48(12.3) | 1.00(25.4) | 1.06(27.0) | 1.06(27.0) |
SS-BCM-FL12-AN12 |
3/4 | 3/4 | 3.11(79.0) | 0.86(21.8) | 0.96(24.4) | 0.61(15.5) | 1.13(28.6) | 1.19(30.2) | 1.19(30.2) |
SS-BCM-FL16-AN16 |
1 | 1 | 3.64(92.5) | 0.91(23.1) | 1.23(31.2) | 0.84(21.3) | 1.50(38.1) | 1.63(41.3) | 1.63(41.3) |
SS-BCM-FL2-AN2 |
1/8 | 1/8 | 1.91(48.5) | 0.45(11.4) | 0.50(12.7) | 0.06(1.5) | 0.44(11.1) | 0.50(12.7) | 0.50(12.7) |
SS-BCM-FL2-AN4 |
1/8 | 1/4 | 2.04(51.8) | 0.55(14.0) | 0.50(12.7) | 0.09(2.3) | 0.44(11.1) | 0.63(15.9) | 0.50(12.7) |
SS-BCM-FL3-AN3 |
3/16 | 3/16 | 1.98(50.3) | 0.48(12.2) | 0.54(13.7) | 0.12(3.0) | 0.50(12.7) | 0.56(14.3) | 0.56(14.3) |
SS-BCM-FL4-AN4 |
1/4 | 1/4 | 2.12(53.8) | 0.55(14.0) | 0.60(15.2) | 0.17(4.3) | 0.56(14.3) | 0.63(15.9) | 0.63(15.9) |
SS-BCM-FL5-AN5 |
5/16 | 5/16 | 2.21(56.1) | 0.55(14.0) | 0.64(16.2) | 0.23(5.8) | 0.63(15.9) | 0.69(17.5) | 0.69(17.5) |
SS-BCM-FL6-AN4 |
3/8 | 1/4 | 2.25(57.2) | 0.55(14.0) | 0.66(16.8) | 0.17(4.3) | 0.69(17.5) | 0.75(19.1) | 0.75(19.1) |
SS-BCM-FL6-AN6 |
3/8 | 3/8 | 2.25(57.2) | 0.56(14.2) | 0.66(16.8) | 0.28(7.1) | 0.69(17.5) | 0.75(19.1) | 0.75(19.1) |
SS-BCM-FL8-AN8 |
1/2 | 1/2 | 2.59(65.8) | 0.66(16.8) | 0.90(22.8) | 0.39(9.9) | 0.87(22.2) | 0.94(23.8) | 0.94(23.8) |
Additional Details
Instrumentation tube fitting for high-pressure, leak-tight, vibration-resistant connections in process, analytical, and instrumentation piping systems. Interchangeable in form, fit and function with other major compression tube fitting brands.
