FITOK Bulkhead Male Connectors (Metric (MS), Fractional Tube)
SKU:
Brand: FITOK
Category: Fittings and Accessories › Instrumentation Tube Fittings › Connectors
Tags: Fitok, Pipe Fitting, Connectors, Plumbing
FITOK Bulkhead Male Connectors — 316/316L stainless steel compression double-ferrule tube fittings (Fractional Tube, Metric Thread (MS)), FITOK 6D Series. Ordering numbers shown are FITOK's part-nu...
Contact us for pricing
This product requires a custom quote
Port 1 Size
Port 2 Size
Quantity
Description
FITOK Bulkhead Male Connectors — 316/316L stainless steel compression double-ferrule tube fittings (Fractional Tube, Metric Thread (MS)), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
Available Variants & Specifications
| Ordering No. | Port 1 Size | Port 2 Size | L (Length) | B (Thread) | C (Depth) | E (Min Orifice) | G (Nut Hex) | F (Body Hex) | Gx |
|---|---|---|---|---|---|---|---|---|---|
SS-BCM-FL1-NS1 |
1/16 | 1/16 | 1.19(30.2) | 0.38(9.7) | 0.34(8.6) | 0.05(1.3) | 0.31(7.9) | 0.31(7.9) | 0.31(7.9) |
SS-BCM-FL1-NS2 |
1/16 | 1/8 | 1.27(32.3) | 0.38(9.7) | 0.34(8.6) | 0.05(1.3) | 0.31(7.9) | 0.44(11.1) | 0.31(7.9) |
SS-BCM-FL10-NS6 |
5/8 | 3/8 | 2.63(66.7) | 0.56(14.2) | 0.96(24.4) | 0.38(9.7) | 1.00(25.4) | 1.06(27.0) | 1.06(27.0) |
SS-BCM-FL10-NS8 |
5/8 | 1/2 | 2.81(71.5) | 0.75(19.1) | 0.96(24.4) | 0.47(11.9) | 1.00(25.4) | 1.06(27.0) | 1.06(27.0) |
SS-BCM-FL12-NS12 |
3/4 | 3/4 | 3.00(76.2) | 0.75(19.1) | 0.96(24.4) | 0.62(15.7) | 1.13(28.6) | 1.19(30.2) | 1.19(30.2) |
SS-BCM-FL12-NS8 |
3/4 | 1/2 | 3.00(76.2) | 0.75(19.1) | 0.96(24.4) | 0.47(11.9) | 1.13(28.6) | 1.19(30.2) | 1.19(30.2) |
SS-BCM-FL14-NS12 |
7/8 | 3/4 | 3.31(84.1) | 0.75(19.1) | 1.02(25.9) | 0.62(15.7) | 1.25(31.8) | 1.31(33.3) | 1.31(33.3) |
SS-BCM-FL16-NS12 |
1 | 3/4 | 3.48(88.4) | 0.75(19.1) | 1.23(31.2) | 0.62(15.7) | 1.50(38.1) | 1.63(41.3) | 1.63(41.3) |
SS-BCM-FL16-NS16 |
1 | 1 | 3.67(93.2) | 0.94(23.9) | 1.23(31.2) | 0.88(22.4) | 1.50(38.1) | 1.63(41.3) | 1.63(41.3) |
SS-BCM-FL2-NS2 |
1/8 | 1/8 | 1.83(46.5) | 0.38(9.7) | 0.50(12.7) | 0.09(2.3) | 0.44(11.1) | 0.50(12.7) | 0.50(12.7) |
SS-BCM-FL3-NS2 |
3/16 | 1/8 | 1.89(48.0) | 0.38(9.7) | 0.54(13.7) | 0.12(3.0) | 0.50(12.7) | 0.56(14.3) | 0.56(14.3) |
SS-BCM-FL4-NS2 |
1/4 | 1/8 | 1.95(49.5) | 0.38(9.7) | 0.60(15.2) | 0.19(4.8) | 0.56(14.3) | 0.63(15.9) | 0.63(15.9) |
SS-BCM-FL4-NS4 |
1/4 | 1/4 | 2.13(54.1) | 0.56(14.2) | 0.60(15.2) | 0.19(4.8) | 0.56(14.3) | 0.63(15.9) | 0.63(15.9) |
SS-BCM-FL4-NS6 |
1/4 | 3/8 | 2.16(54.9) | 0.56(14.2) | 0.60(15.2) | 0.19(4.8) | 0.63(15.9) | 0.69(17.5) | 0.63(15.9) |
SS-BCM-FL4-NS8 |
1/4 | 1/2 | 2.37(60.3) | 0.75(19.1) | 0.60(15.2) | 0.19(4.8) | 0.56(14.3) | 0.87(22.2) | 0.63(15.9) |
SS-BCM-FL5-NS2 |
5/16 | 1/8 | 2.08(52.8) | 0.38(9.7) | 0.64(16.3) | 0.19(4.8) | 0.63(15.9) | 0.69(17.5) | 0.69(17.5) |
SS-BCM-FL5-NS4 |
5/16 | 1/4 | 2.27(57.7) | 0.56(14.2) | 0.64(16.3) | 0.25(6.4) | 0.63(15.9) | 0.69(17.5) | 0.69(17.5) |
SS-BCM-FL6-NS2 |
3/8 | 1/8 | 2.08(52.9) | 0.38(9.7) | 0.66(16.8) | 0.19(4.8) | 0.69(17.5) | 0.75(19.1) | 0.75(19.1) |
SS-BCM-FL6-NS4 |
3/8 | 1/4 | 2.26(57.4) | 0.56(14.2) | 0.66(16.8) | 0.28(7.1) | 0.69(17.5) | 0.75(19.1) | 0.75(19.1) |
SS-BCM-FL6-NS6 |
3/8 | 3/8 | 2.26(57.4) | 0.56(14.2) | 0.66(16.8) | 0.28(7.1) | 0.69(17.5) | 0.75(19.1) | 0.75(19.1) |
SS-BCM-FL6-NS8 |
3/8 | 1/2 | 2.51(63.8) | 0.75(19.1) | 0.66(16.8) | 0.28(7.1) | 0.69(17.5) | 0.87(22.2) | 0.87(22.2) |
SS-BCM-FL8-NS2 |
1/2 | 1/8 | 2.31(58.7) | 0.38(9.7) | 0.90(22.9) | 0.19(4.8) | 0.87(22.2) | 0.94(23.8) | 0.94(23.8) |
SS-BCM-FL8-NS4 |
1/2 | 1/4 | 2.49(63.2) | 0.56(14.2) | 0.90(22.9) | 0.28(7.1) | 0.87(22.2) | 0.94(23.8) | 0.94(23.8) |
SS-BCM-FL8-NS6 |
1/2 | 3/8 | 2.49(63.2) | 0.56(14.2) | 0.90(22.9) | 0.38(9.7) | 0.87(22.2) | 0.94(23.8) | 0.87(22.2) |
SS-BCM-FL8-NS8 |
1/2 | 1/2 | 2.71(68.8) | 0.75(19.1) | 0.90(22.9) | 0.41(10.4) | 0.87(22.2) | 0.94(23.8) | 0.94(23.8) |
Additional Details
Instrumentation tube fitting for high-pressure, leak-tight, vibration-resistant connections in process, analytical, and instrumentation piping systems. Interchangeable in form, fit and function with other major compression tube fitting brands.
Additional Information
Length
6 cm
Width
4 cm
Height
4 cm
Weight
0.1 kg

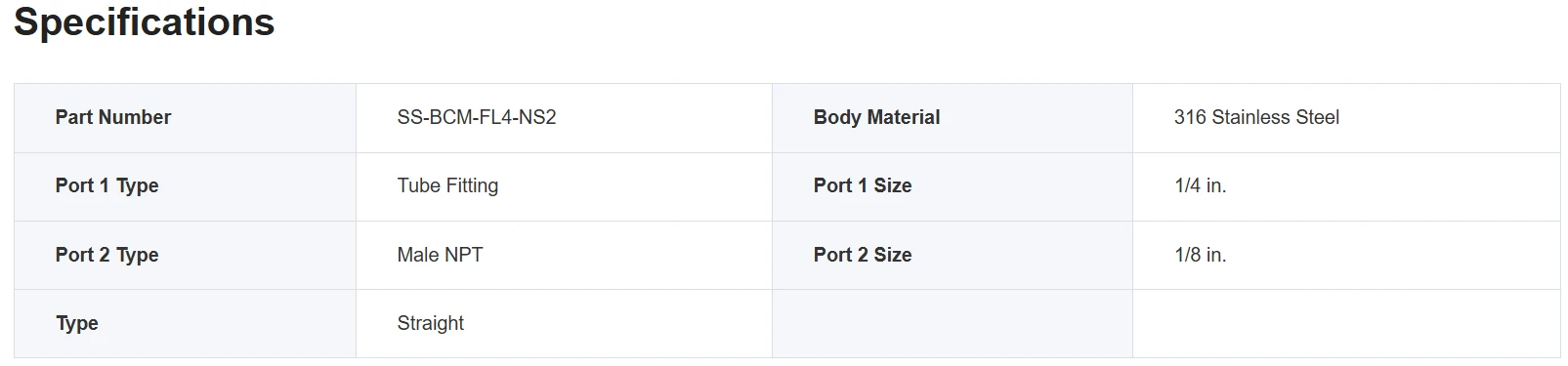

Specifications
Material
316/316L Stainless Steel (Ni content >= 28.5%)
Connection Style
Compression, double-ferrule tube fitting (FITOK 6D Series)
Standard / Certification
Tested to ASTM F1387; dimensionally interchangeable with other major compression tube fitting brands
Pressure Rating
Rated to the maximum working pressure of the mating FITOK tubing (fitting is not the pressure-limiting component)
Thread Type
NPT Thread
Tube Type
Fractional Tube
Max working pressure
6000 psig psig
Operating temperature
-28 to +204 °C °C
