FITOK Female Adapters (ISO Tapered (RT), Metric Tube)
SKU:
Brand: FITOK
Category: Fittings and Accessories › Instrumentation Tube Fittings › Connectors
Tags: Fitok, Pipe Fitting, Connectors, Plumbing
FITOK Female Adapters — 316/316L stainless steel compression double-ferrule tube fittings (Metric Tube, ISO Tapered Thread (RT)), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suf...
Contact us for pricing
This product requires a custom quote
Port 1 Size
Port 2 Size
Quantity
Description
FITOK Female Adapters — 316/316L stainless steel compression double-ferrule tube fittings (Metric Tube, ISO Tapered Thread (RT)), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
Available Variants & Specifications
| Ordering No. | Port 1 Size | Port 2 Size | L (Length) | B (Thread) | E (Min Orifice) | F (Body Hex) |
|---|---|---|---|---|---|---|
SS-AF-MT10-RT4 |
10 | 1/4 | 38.1(1.50) | 15.0(0.59) | 7.1(0.28) | 19.0(0.75) |
SS-AF-MT10-RT6 |
10 | 3/8 | 36.5(1.44) | 15.0(0.59) | 7.1(0.28) | 22.0(0.87) |
SS-AF-MT10-RT8 |
10 | 1/2 | 41.3(1.63) | 19.8(0.78) | 7.1(0.28) | 27.0(1.06) |
SS-AF-MT12-RT4 |
12 | 1/4 | 43.7(1.72) | 15.0(0.59) | 8.8(0.35) | 19.0(0.75) |
SS-AF-MT12-RT6 |
12 | 3/8 | 43.7(1.72) | 15.0(0.59) | 8.8(0.35) | 22.0(0.87) |
SS-AF-MT12-RT8 |
12 | 1/2 | 46.8(1.84) | 19.8(0.78) | 8.8(0.35) | 27.0(1.06) |
SS-AF-MT16-RT8 |
16 | 1/2 | 48.4(1.91) | 19.8(0.78) | 12.0(0.47) | 27.0(1.06) |
SS-AF-MT18-RT12 |
18 | 3/4 | 52.4(2.06) | 20.6(0.81) | 14.0(0.55) | 32.0(1.26) |
SS-AF-MT20-RT12 |
20 | 3/4 | 52.4(2.06) | 20.6(0.81) | 15.5(0.61) | 32.0(1.26) |
SS-AF-MT25-RT16 |
25 | 1 | 66.7(2.63) | 25.4(1.00) | 19.8(0.78) | 41.0(1.61) |
SS-AF-MT3-RT2 |
3 | 1/8 | 28.8(1.13) | 10.4(0.41) | 1.8(0.07) | 14.0(0.55) |
SS-AF-MT4-RT2 |
4 | 1/8 | 28.6(1.13) | 10.4(0.41) | 2.4(0.09) | 14.0(0.55) |
SS-AF-MT6-RT2 |
6 | 1/8 | 33.0(1.30) | 10.4(0.41) | 4.1(0.16) | 14.0(0.55) |
SS-AF-MT8-RT4 |
8 | 1/4 | 37.6(1.48) | 15.0(0.59) | 5.6(0.22) | 19.0(0.75) |
Additional Details
Instrumentation tube fitting for high-pressure, leak-tight, vibration-resistant connections in process, analytical, and instrumentation piping systems. Interchangeable in form, fit and function with other major compression tube fitting brands.
Additional Information
Length
6 cm
Width
4 cm
Height
4 cm
Weight
0.1 kg

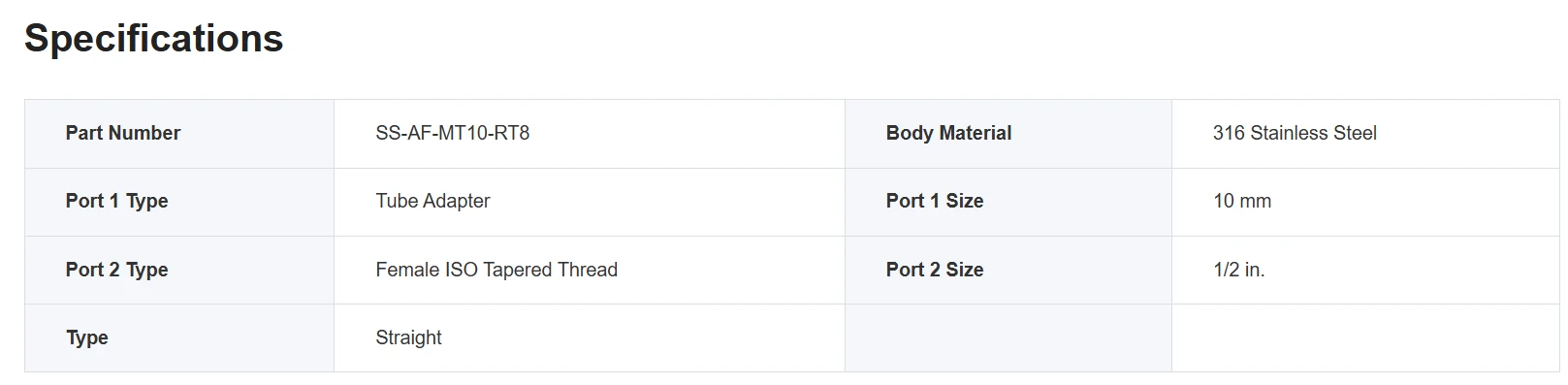

Specifications
Material
316/316L Stainless Steel (Ni content >= 28.5%)
Connection Style
Compression, double-ferrule tube fitting (FITOK 6D Series)
Standard / Certification
Tested to ASTM F1387; dimensionally interchangeable with other major compression tube fitting brands
Pressure Rating
Rated to the maximum working pressure of the mating FITOK tubing (fitting is not the pressure-limiting component)
Thread Type
ISO Tapered Thread (RT)
Tube Type
Metric Tube
Max working pressure
6000 psig psig
Operating temperature
-28 to +204 °C °C
FITOK Female Adapters — 316/316L stainless steel compression double-ferrule tube fittings (Metric Tube, ISO Tapered Thread (RT)), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
Available Variants & Specifications
| Ordering No. | Port 1 Size | Port 2 Size | L (Length) | B (Thread) | E (Min Orifice) | F (Body Hex) |
|---|---|---|---|---|---|---|
SS-AF-MT10-RT4 |
10 | 1/4 | 38.1(1.50) | 15.0(0.59) | 7.1(0.28) | 19.0(0.75) |
SS-AF-MT10-RT6 |
10 | 3/8 | 36.5(1.44) | 15.0(0.59) | 7.1(0.28) | 22.0(0.87) |
SS-AF-MT10-RT8 |
10 | 1/2 | 41.3(1.63) | 19.8(0.78) | 7.1(0.28) | 27.0(1.06) |
SS-AF-MT12-RT4 |
12 | 1/4 | 43.7(1.72) | 15.0(0.59) | 8.8(0.35) | 19.0(0.75) |
SS-AF-MT12-RT6 |
12 | 3/8 | 43.7(1.72) | 15.0(0.59) | 8.8(0.35) | 22.0(0.87) |
SS-AF-MT12-RT8 |
12 | 1/2 | 46.8(1.84) | 19.8(0.78) | 8.8(0.35) | 27.0(1.06) |
SS-AF-MT16-RT8 |
16 | 1/2 | 48.4(1.91) | 19.8(0.78) | 12.0(0.47) | 27.0(1.06) |
SS-AF-MT18-RT12 |
18 | 3/4 | 52.4(2.06) | 20.6(0.81) | 14.0(0.55) | 32.0(1.26) |
SS-AF-MT20-RT12 |
20 | 3/4 | 52.4(2.06) | 20.6(0.81) | 15.5(0.61) | 32.0(1.26) |
SS-AF-MT25-RT16 |
25 | 1 | 66.7(2.63) | 25.4(1.00) | 19.8(0.78) | 41.0(1.61) |
SS-AF-MT3-RT2 |
3 | 1/8 | 28.8(1.13) | 10.4(0.41) | 1.8(0.07) | 14.0(0.55) |
SS-AF-MT4-RT2 |
4 | 1/8 | 28.6(1.13) | 10.4(0.41) | 2.4(0.09) | 14.0(0.55) |
SS-AF-MT6-RT2 |
6 | 1/8 | 33.0(1.30) | 10.4(0.41) | 4.1(0.16) | 14.0(0.55) |
SS-AF-MT8-RT4 |
8 | 1/4 | 37.6(1.48) | 15.0(0.59) | 5.6(0.22) | 19.0(0.75) |
Additional Details
Instrumentation tube fitting for high-pressure, leak-tight, vibration-resistant connections in process, analytical, and instrumentation piping systems. Interchangeable in form, fit and function with other major compression tube fitting brands.
