FITOK Female Adapters (NPT, Fractional Tube)
SKU:
Brand: FITOK
Category: Fittings and Accessories › Instrumentation Tube Fittings › Connectors
Tags: Fitok, Pipe Fitting, Connectors, Plumbing
FITOK Female Adapters — 316/316L stainless steel compression double-ferrule tube fittings (Fractional Tube, NPT Thread), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as pu...
Contact us for pricing
This product requires a custom quote
Port 1 Size
Port 2 Size
Quantity
Description
FITOK Female Adapters — 316/316L stainless steel compression double-ferrule tube fittings (Fractional Tube, NPT Thread), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
Available Variants & Specifications
| Ordering No. | Port 1 Size | Port 2 Size | L (Length) | B (Thread) | E (Min Orifice) | F (Body Hex) |
|---|---|---|---|---|---|---|
SS-AF-AFT20-NS20 |
1 1/4 | 1 1/4 | 3.06(77.7) | 1.00(25.4) | 1.02(25.9) | 2.13(54.0) |
SS-AF-AFT24-NS24 |
1 1/2 | 1 1/2 | 3.50(88.9) | 1.09(27.7) | 1.25(31.8) | 2.37(60.3) |
SS-AF-FT1-NS2 |
1/16 | 1/8 | 1.07(27.2) | 0.41(10.4) | 0.03(0.8) | 0.56(14.3) |
SS-AF-FT10-NS6 |
5/8 | 3/8 | 1.86(47.2) | 0.59(15.0) | 0.47(11.9) | 0.87(22.2) |
SS-AF-FT10-NS8 |
5/8 | 1/2 | 2.09(53.1) | 0.78(19.8) | 0.47(11.9) | 1.06(27.0) |
SS-AF-FT12-NS12 |
3/4 | 3/4 | 2.16(54.9) | 0.81(20.6) | 0.58(14.7) | 1.31(33.3) |
SS-AF-FT12-NS16 |
3/4 | 1 | 2.30(58.4) | 1.00(25.4) | 0.58(14.7) | 1.63(41.3) |
SS-AF-FT12-NS8 |
3/4 | 1/2 | 2.08(52.8) | 0.78(19.8) | 0.58(14.7) | 1.06(27.0) |
SS-AF-FT14-NS12 |
7/8 | 3/4 | 2.22(56.4) | 0.81(20.6) | 0.58(14.7) | 1.31(33.3) |
SS-AF-FT16-NS12 |
1 | 3/4 | 2.39(60.7) | 0.81(20.6) | 0.80(20.3) | 1.31(33.3) |
SS-AF-FT16-NS16 |
1 | 1 | 2.53(64.3) | 1.00(25.4) | 0.80(20.3) | 1.63(41.3) |
SS-AF-FT2-NS2 |
1/8 | 1/8 | 1.24(31.5) | 0.41(10.4) | 0.08(2.0) | 0.56(14.3) |
SS-AF-FT2-NS4 |
1/8 | 1/4 | 1.39(35.3) | 0.59(15.0) | 0.08(2.0) | 0.75(19.1) |
SS-AF-FT3-NS2 |
3/16 | 1/8 | 1.25(31.8) | 0.41(10.4) | 0.11(2.9) | 0.56(14.3) |
SS-AF-FT3-NS4 |
3/16 | 1/4 | 1.41(35.8) | 0.59(15.0) | 0.12(3.0) | 0.75(19.1) |
SS-AF-FT4-NS2 |
1/4 | 1/8 | 1.30(33.0) | 0.41(10.4) | 0.17(4.3) | 0.56(14.3) |
SS-AF-FT4-NS4 |
1/4 | 1/4 | 1.46(37.1) | 0.59(15.0) | 0.17(4.3) | 0.75(19.1) |
SS-AF-FT4-NS6 |
1/4 | 3/8 | 1.55(39.4) | 0.59(15.0) | 0.17(4.3) | 0.87(22.2) |
SS-AF-FT4-NS8 |
1/4 | 1/2 | 1.79(45.5) | 0.78(19.8) | 0.17(4.3) | 1.06(27.0) |
SS-AF-FT5-NS2 |
5/16 | 1/8 | 1.34(34.0) | 0.41(10.4) | 0.22(5.6) | 0.56(14.3) |
SS-AF-FT5-NS4 |
5/16 | 1/4 | 1.48(37.6) | 0.59(15.0) | 0.22(5.6) | 0.75(19.1) |
SS-AF-FT5-NS6 |
5/16 | 3/8 | 1.59(40.4) | 0.59(15.0) | 0.22(5.6) | 0.87(22.2) |
SS-AF-FT6-NS2 |
3/8 | 1/8 | 1.35(34.3) | 0.41(10.4) | 0.27(6.9) | 0.56(14.3) |
SS-AF-FT6-NS4 |
3/8 | 1/4 | 1.50(38.1) | 0.59(15.0) | 0.27(6.9) | 0.75(19.1) |
SS-AF-FT6-NS6 |
3/8 | 3/8 | 1.59(40.4) | 0.59(15.0) | 0.27(6.9) | 0.87(22.2) |
SS-AF-FT6-NS8 |
3/8 | 1/2 | 1.84(46.7) | 0.78(19.8) | 0.27(6.9) | 1.06(27.0) |
SS-AF-FT8-NS4 |
1/2 | 1/4 | 1.71(43.4) | 0.59(15.0) | 0.37(9.4) | 0.75(19.1) |
SS-AF-FT8-NS6 |
1/2 | 3/8 | 1.79(45.5) | 0.59(15.0) | 0.37(9.4) | 0.87(22.2) |
SS-AF-FT8-NS8 |
1/2 | 1/2 | 2.04(51.8) | 0.78(19.8) | 0.37(9.4) | 1.06(27.0) |
Additional Details
Instrumentation tube fitting for high-pressure, leak-tight, vibration-resistant connections in process, analytical, and instrumentation piping systems. Interchangeable in form, fit and function with other major compression tube fitting brands.
Additional Information
Length
6 cm
Width
4 cm
Height
4 cm
Weight
0.1 kg

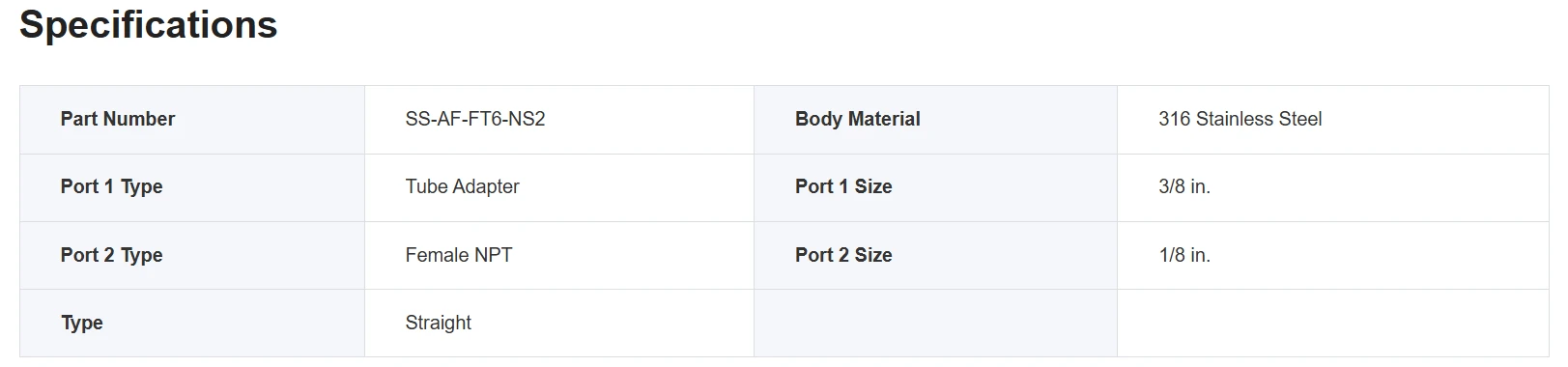

Specifications
Material
316/316L Stainless Steel (Ni content >= 28.5%)
Connection Style
Compression, double-ferrule tube fitting (FITOK 6D Series)
Standard / Certification
Tested to ASTM F1387; dimensionally interchangeable with other major compression tube fitting brands
Pressure Rating
Rated to the maximum working pressure of the mating FITOK tubing (fitting is not the pressure-limiting component)
Thread Type
NPT Thread
Tube Type
Fractional Tube
Max working pressure
6000 psig psig
Operating temperature
-28 to +204 °C °C
FITOK Female Adapters — 316/316L stainless steel compression double-ferrule tube fittings (Fractional Tube, NPT Thread), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
Available Variants & Specifications
| Ordering No. | Port 1 Size | Port 2 Size | L (Length) | B (Thread) | E (Min Orifice) | F (Body Hex) |
|---|---|---|---|---|---|---|
SS-AF-AFT20-NS20 |
1 1/4 | 1 1/4 | 3.06(77.7) | 1.00(25.4) | 1.02(25.9) | 2.13(54.0) |
SS-AF-AFT24-NS24 |
1 1/2 | 1 1/2 | 3.50(88.9) | 1.09(27.7) | 1.25(31.8) | 2.37(60.3) |
SS-AF-FT1-NS2 |
1/16 | 1/8 | 1.07(27.2) | 0.41(10.4) | 0.03(0.8) | 0.56(14.3) |
SS-AF-FT10-NS6 |
5/8 | 3/8 | 1.86(47.2) | 0.59(15.0) | 0.47(11.9) | 0.87(22.2) |
SS-AF-FT10-NS8 |
5/8 | 1/2 | 2.09(53.1) | 0.78(19.8) | 0.47(11.9) | 1.06(27.0) |
SS-AF-FT12-NS12 |
3/4 | 3/4 | 2.16(54.9) | 0.81(20.6) | 0.58(14.7) | 1.31(33.3) |
SS-AF-FT12-NS16 |
3/4 | 1 | 2.30(58.4) | 1.00(25.4) | 0.58(14.7) | 1.63(41.3) |
SS-AF-FT12-NS8 |
3/4 | 1/2 | 2.08(52.8) | 0.78(19.8) | 0.58(14.7) | 1.06(27.0) |
SS-AF-FT14-NS12 |
7/8 | 3/4 | 2.22(56.4) | 0.81(20.6) | 0.58(14.7) | 1.31(33.3) |
SS-AF-FT16-NS12 |
1 | 3/4 | 2.39(60.7) | 0.81(20.6) | 0.80(20.3) | 1.31(33.3) |
SS-AF-FT16-NS16 |
1 | 1 | 2.53(64.3) | 1.00(25.4) | 0.80(20.3) | 1.63(41.3) |
SS-AF-FT2-NS2 |
1/8 | 1/8 | 1.24(31.5) | 0.41(10.4) | 0.08(2.0) | 0.56(14.3) |
SS-AF-FT2-NS4 |
1/8 | 1/4 | 1.39(35.3) | 0.59(15.0) | 0.08(2.0) | 0.75(19.1) |
SS-AF-FT3-NS2 |
3/16 | 1/8 | 1.25(31.8) | 0.41(10.4) | 0.11(2.9) | 0.56(14.3) |
SS-AF-FT3-NS4 |
3/16 | 1/4 | 1.41(35.8) | 0.59(15.0) | 0.12(3.0) | 0.75(19.1) |
SS-AF-FT4-NS2 |
1/4 | 1/8 | 1.30(33.0) | 0.41(10.4) | 0.17(4.3) | 0.56(14.3) |
SS-AF-FT4-NS4 |
1/4 | 1/4 | 1.46(37.1) | 0.59(15.0) | 0.17(4.3) | 0.75(19.1) |
SS-AF-FT4-NS6 |
1/4 | 3/8 | 1.55(39.4) | 0.59(15.0) | 0.17(4.3) | 0.87(22.2) |
SS-AF-FT4-NS8 |
1/4 | 1/2 | 1.79(45.5) | 0.78(19.8) | 0.17(4.3) | 1.06(27.0) |
SS-AF-FT5-NS2 |
5/16 | 1/8 | 1.34(34.0) | 0.41(10.4) | 0.22(5.6) | 0.56(14.3) |
SS-AF-FT5-NS4 |
5/16 | 1/4 | 1.48(37.6) | 0.59(15.0) | 0.22(5.6) | 0.75(19.1) |
SS-AF-FT5-NS6 |
5/16 | 3/8 | 1.59(40.4) | 0.59(15.0) | 0.22(5.6) | 0.87(22.2) |
SS-AF-FT6-NS2 |
3/8 | 1/8 | 1.35(34.3) | 0.41(10.4) | 0.27(6.9) | 0.56(14.3) |
SS-AF-FT6-NS4 |
3/8 | 1/4 | 1.50(38.1) | 0.59(15.0) | 0.27(6.9) | 0.75(19.1) |
SS-AF-FT6-NS6 |
3/8 | 3/8 | 1.59(40.4) | 0.59(15.0) | 0.27(6.9) | 0.87(22.2) |
SS-AF-FT6-NS8 |
3/8 | 1/2 | 1.84(46.7) | 0.78(19.8) | 0.27(6.9) | 1.06(27.0) |
SS-AF-FT8-NS4 |
1/2 | 1/4 | 1.71(43.4) | 0.59(15.0) | 0.37(9.4) | 0.75(19.1) |
SS-AF-FT8-NS6 |
1/2 | 3/8 | 1.79(45.5) | 0.59(15.0) | 0.37(9.4) | 0.87(22.2) |
SS-AF-FT8-NS8 |
1/2 | 1/2 | 2.04(51.8) | 0.78(19.8) | 0.37(9.4) | 1.06(27.0) |
Additional Details
Instrumentation tube fitting for high-pressure, leak-tight, vibration-resistant connections in process, analytical, and instrumentation piping systems. Interchangeable in form, fit and function with other major compression tube fitting brands.
