FITOK Female Adapters (NPT, Metric Tube)
SKU:
Brand: FITOK
Category: Fittings and Accessories › Instrumentation Tube Fittings › Connectors
Tags: Fitok, Pipe Fitting, Connectors, Plumbing
FITOK Female Adapters — 316/316L stainless steel compression double-ferrule tube fittings (Metric Tube, NPT Thread), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as publis...
Contact us for pricing
This product requires a custom quote
Port 1 Size
Port 2 Size
Quantity
Description
FITOK Female Adapters — 316/316L stainless steel compression double-ferrule tube fittings (Metric Tube, NPT Thread), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
Available Variants & Specifications
| Ordering No. | Port 1 Size | Port 2 Size | L (Length) | B (Thread) | E (Min Orifice) | F (Body Hex) |
|---|---|---|---|---|---|---|
SS-AF-MT10-NS4 |
10 | 1/4 | 38.1(1.50) | 15.0(0.59) | 7.1(0.28) | 19.0(0.75) |
SS-AF-MT10-NS6 |
10 | 3/8 | 40.1(1.58) | 15.0(0.59) | 7.1(0.28) | 22.0(0.87) |
SS-AF-MT10-NS8 |
10 | 1/2 | 46.5(1.83) | 19.8(0.78) | 7.1(0.28) | 27.0(1.06) |
SS-AF-MT12-NS4 |
12 | 1/4 | 43.7(1.72) | 15.0(0.59) | 8.8(0.35) | 19.0(0.75) |
SS-AF-MT12-NS6 |
12 | 3/8 | 42.9(1.69) | 15.0(0.59) | 8.8(0.35) | 22.0(0.87) |
SS-AF-MT12-NS8 |
12 | 1/2 | 52.3(2.06) | 19.8(0.78) | 8.8(0.35) | 27.0(1.06) |
SS-AF-MT16-NS8 |
16 | 1/2 | 49.2(1.94) | 19.8(0.78) | 12.0(0.47) | 27.0(1.06) |
SS-AF-MT18-NS12 |
18 | 3/4 | 52.4(2.06) | 20.6(0.81) | 14.0(0.55) | 32.0(1.26) |
SS-AF-MT20-NS12 |
20 | 3/4 | 57.2(2.25) | 20.6(0.81) | 15.5(0.61) | 35.0(1.38) |
SS-AF-MT20-NS8 |
20 | 1/2 | 50.0(1.97) | 19.8(0.78) | 15.5(0.61) | 27.0(1.06) |
SS-AF-MT25-NS16 |
25 | 1 | 66.7(2.63) | 25.4(1.00) | 19.8(0.78) | 41.0(1.61) |
SS-AF-MT3-NS2 |
3 | 1/8 | 28.8(1.13) | 10.4(0.41) | 1.3(0.05) | 14.0(0.55) |
SS-AF-MT4-NS2 |
4 | 1/8 | 33.3(1.31) | 10.4(0.41) | 2.4(0.09) | 14.0(0.55) |
SS-AF-MT6-NS2 |
6 | 1/8 | 32.5(1.28) | 10.4(0.41) | 4.1(0.16) | 14.0(0.55) |
SS-AF-MT6-NS4 |
6 | 1/4 | 37.1(1.46) | 15.0(0.59) | 4.1(0.16) | 19.0(0.75) |
SS-AF-MT8-NS2 |
8 | 1/8 | 35.1(1.38) | 10.4(0.41) | 5.6(0.22) | 14.0(0.55) |
SS-AF-MT8-NS4 |
8 | 1/4 | 37.6(1.48) | 15.0(0.59) | 5.6(0.22) | 19.0(0.75) |
SS-AF-MT8-NS6 |
8 | 3/8 | 36.5(1.44) | 15.0(0.59) | 5.6(0.22) | 22.0(0.87) |
Additional Details
Instrumentation tube fitting for high-pressure, leak-tight, vibration-resistant connections in process, analytical, and instrumentation piping systems. Interchangeable in form, fit and function with other major compression tube fitting brands.
Additional Information
Length
6 cm
Width
4 cm
Height
4 cm
Weight
0.1 kg

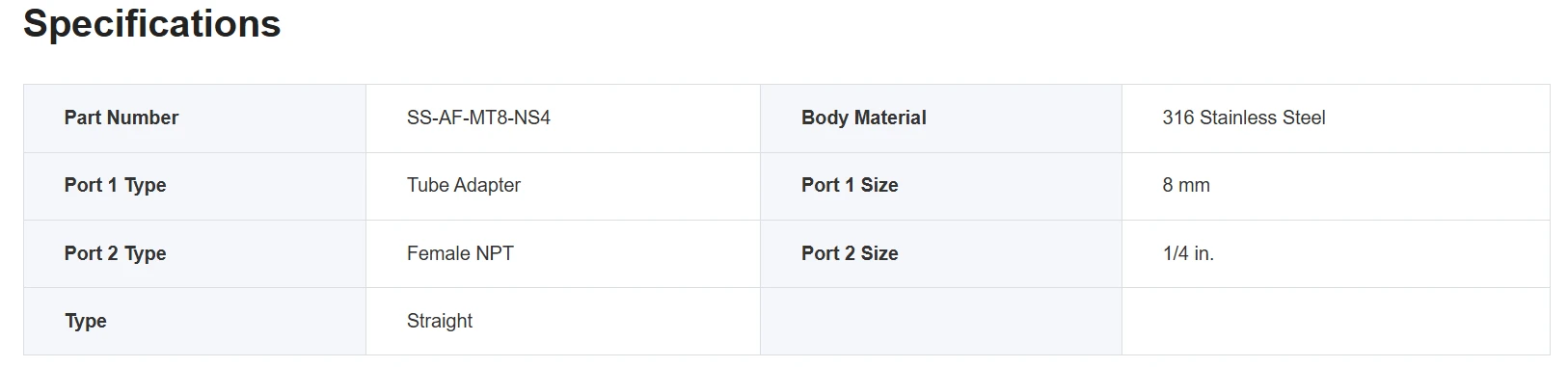

Specifications
Material
316/316L Stainless Steel (Ni content >= 28.5%)
Connection Style
Compression, double-ferrule tube fitting (FITOK 6D Series)
Standard / Certification
Tested to ASTM F1387; dimensionally interchangeable with other major compression tube fitting brands
Pressure Rating
Rated to the maximum working pressure of the mating FITOK tubing (fitting is not the pressure-limiting component)
Thread Type
NPT Thread
Tube Type
Metric Tube
Max working pressure
6000 psig psig
Operating temperature
-28 to +204 °C °C
FITOK Female Adapters — 316/316L stainless steel compression double-ferrule tube fittings (Metric Tube, NPT Thread), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
