FITOK Female Connectors (ISO Parallel (RG), Metric Tube)
SKU:
Brand: FITOK
Category: Fittings and Accessories › Instrumentation Tube Fittings › Connectors
Tags: Fitok, Pipe Fitting, Connectors, Plumbing
FITOK Female Connectors — 316/316L stainless steel compression double-ferrule tube fittings (Metric Tube, ISO Parallel Thread (RG)), FITOK 6D Series. Ordering numbers shown are FITOK's part-number ...
Contact us for pricing
This product requires a custom quote
Port 1 Size
Port 2 Size
Quantity
Description
FITOK Female Connectors — 316/316L stainless steel compression double-ferrule tube fittings (Metric Tube, ISO Parallel Thread (RG)), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
Available Variants & Specifications
| Ordering No. | Port 1 Size | Port 2 Size | L (Length) | B (Thread) | C (Depth) | E (Min Orifice) | G (Nut Hex) | F (Body Hex) |
|---|---|---|---|---|---|---|---|---|
SS-CF-ML10-RG4 |
10 | 1/4 | 39.4(1.55) | 12.9(0.51) | 17.2(0.68) | 5.5(0.22) | 19.0(0.75) | 19.0(0.75) |
SS-CF-ML10-RG6 |
10 | 3/8 | 38.8(1.53) | 14.2(0.56) | 17.2(0.68) | 6.4(0.25) | 19.0(0.75) | 24.0(0.94) |
SS-CF-ML10-RG8 |
10 | 1/2 | 42.1(1.66) | 18.8(0.74) | 17.2(0.68) | 7.9(0.31) | 19.0(0.75) | 27.0(1.06) |
SS-CF-ML12-RG4 |
12 | 1/4 | 41.9(1.65) | 12.9(0.51) | 22.8(0.90) | 5.5(0.22) | 22.0(0.87) | 22.0(0.87) |
SS-CF-ML12-RG6 |
12 | 3/8 | 44.4(1.75) | 14.2(0.56) | 22.8(0.90) | 6.4(0.25) | 22.0(0.87) | 24.0(0.94) |
SS-CF-ML12-RG8 |
12 | 1/2 | 48.2(1.90) | 18.8(0.74) | 22.8(0.90) | 7.1(0.28) | 22.0(0.87) | 27.0(1.06) |
SS-CF-ML20-RG8 |
20 | 1/2 | 54.3(2.14) | 18.8(0.74) | 26.0(1.02) | 7.1(0.28) | 32.0(1.26) | 30.0(1.18) |
SS-CF-ML22-RG8 |
22 | 1/2 | 54.3(2.14) | 18.8(0.74) | 26.0(1.02) | 7.1(0.28) | 32.0(1.26) | 30.0(1.18) |
SS-CF-ML3-RG4 |
3 | 1/4 | 35.3(1.39) | 12.9(0.51) | 12.9(0.51) | 2.4(0.09) | 12.0(0.47) | 19.0(0.75) |
SS-CF-ML6-RG4 |
6 | 1/4 | 37.6(1.48) | 12.9(0.51) | 15.3(0.60) | 4.8(0.19) | 14.0(0.55) | 19.0(0.75) |
SS-CF-ML6-RG6 |
6 | 3/8 | 37.6(1.48) | 14.2(0.56) | 15.3(0.60) | 4.8(0.19) | 14.0(0.55) | 24.0(0.94) |
SS-CF-ML6-RG8 |
6 | 1/2 | 43.5(1.71) | 18.8(0.74) | 15.3(0.60) | 4.8(0.19) | 14.0(0.55) | 27.0(1.06) |
SS-CF-ML8-RG4 |
8 | 1/4 | 38.5(1.52) | 12.9(0.51) | 16.2(0.64) | 5.5(0.22) | 16.0(0.63) | 19.0(0.75) |
SS-CF-ML8-RG6 |
8 | 3/8 | 36.2(1.43) | 14.2(0.56) | 16.2(0.64) | 6.4(0.25) | 16.0(0.63) | 24.0(0.94) |
SS-CF-ML8-RG8 |
8 | 1/2 | 41.0(1.61) | 18.8(0.74) | 16.2(0.64) | 6.4(0.25) | 16.0(0.63) | 27.0(1.06) |
Additional Details
Instrumentation tube fitting for high-pressure, leak-tight, vibration-resistant connections in process, analytical, and instrumentation piping systems. Interchangeable in form, fit and function with other major compression tube fitting brands.
Additional Information
Length
6 cm
Width
4 cm
Height
4 cm
Weight
0.1 kg

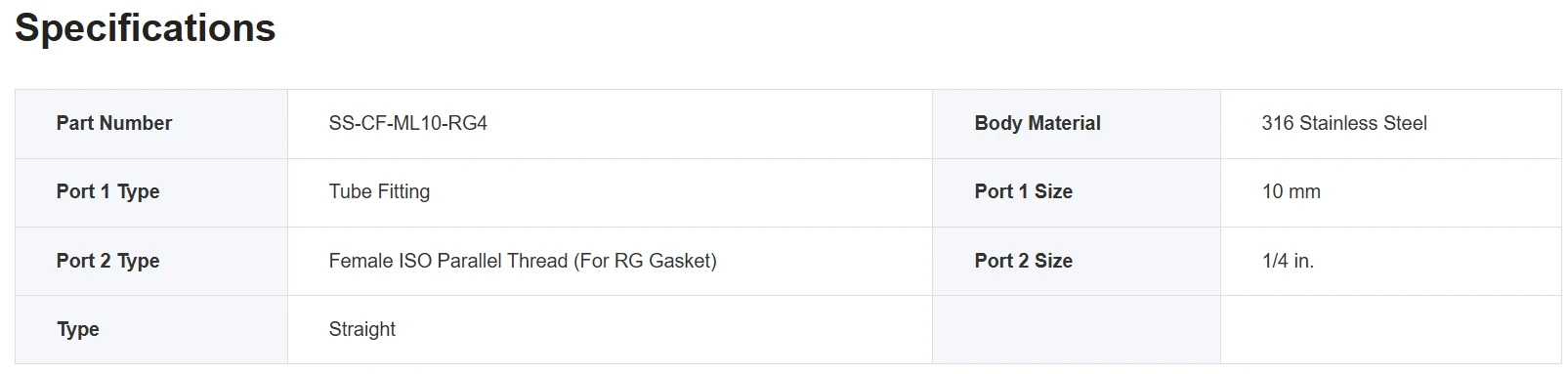

Specifications
Material
316/316L Stainless Steel (Ni content >= 28.5%)
Connection Style
Compression, double-ferrule tube fitting (FITOK 6D Series)
Standard / Certification
Tested to ASTM F1387; dimensionally interchangeable with other major compression tube fitting brands
Pressure Rating
Rated to the maximum working pressure of the mating FITOK tubing (fitting is not the pressure-limiting component)
Thread Type
ISO Parallel Thread (RG)
Tube Type
Metric Tube
Max working pressure
6000 psig psig
Operating temperature
-28 to +204 °C °C
FITOK Female Connectors — 316/316L stainless steel compression double-ferrule tube fittings (Metric Tube, ISO Parallel Thread (RG)), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
Available Variants & Specifications
| Ordering No. | Port 1 Size | Port 2 Size | L (Length) | B (Thread) | C (Depth) | E (Min Orifice) | G (Nut Hex) | F (Body Hex) |
|---|---|---|---|---|---|---|---|---|
SS-CF-ML10-RG4 |
10 | 1/4 | 39.4(1.55) | 12.9(0.51) | 17.2(0.68) | 5.5(0.22) | 19.0(0.75) | 19.0(0.75) |
SS-CF-ML10-RG6 |
10 | 3/8 | 38.8(1.53) | 14.2(0.56) | 17.2(0.68) | 6.4(0.25) | 19.0(0.75) | 24.0(0.94) |
SS-CF-ML10-RG8 |
10 | 1/2 | 42.1(1.66) | 18.8(0.74) | 17.2(0.68) | 7.9(0.31) | 19.0(0.75) | 27.0(1.06) |
SS-CF-ML12-RG4 |
12 | 1/4 | 41.9(1.65) | 12.9(0.51) | 22.8(0.90) | 5.5(0.22) | 22.0(0.87) | 22.0(0.87) |
SS-CF-ML12-RG6 |
12 | 3/8 | 44.4(1.75) | 14.2(0.56) | 22.8(0.90) | 6.4(0.25) | 22.0(0.87) | 24.0(0.94) |
SS-CF-ML12-RG8 |
12 | 1/2 | 48.2(1.90) | 18.8(0.74) | 22.8(0.90) | 7.1(0.28) | 22.0(0.87) | 27.0(1.06) |
SS-CF-ML20-RG8 |
20 | 1/2 | 54.3(2.14) | 18.8(0.74) | 26.0(1.02) | 7.1(0.28) | 32.0(1.26) | 30.0(1.18) |
SS-CF-ML22-RG8 |
22 | 1/2 | 54.3(2.14) | 18.8(0.74) | 26.0(1.02) | 7.1(0.28) | 32.0(1.26) | 30.0(1.18) |
SS-CF-ML3-RG4 |
3 | 1/4 | 35.3(1.39) | 12.9(0.51) | 12.9(0.51) | 2.4(0.09) | 12.0(0.47) | 19.0(0.75) |
SS-CF-ML6-RG4 |
6 | 1/4 | 37.6(1.48) | 12.9(0.51) | 15.3(0.60) | 4.8(0.19) | 14.0(0.55) | 19.0(0.75) |
SS-CF-ML6-RG6 |
6 | 3/8 | 37.6(1.48) | 14.2(0.56) | 15.3(0.60) | 4.8(0.19) | 14.0(0.55) | 24.0(0.94) |
SS-CF-ML6-RG8 |
6 | 1/2 | 43.5(1.71) | 18.8(0.74) | 15.3(0.60) | 4.8(0.19) | 14.0(0.55) | 27.0(1.06) |
SS-CF-ML8-RG4 |
8 | 1/4 | 38.5(1.52) | 12.9(0.51) | 16.2(0.64) | 5.5(0.22) | 16.0(0.63) | 19.0(0.75) |
SS-CF-ML8-RG6 |
8 | 3/8 | 36.2(1.43) | 14.2(0.56) | 16.2(0.64) | 6.4(0.25) | 16.0(0.63) | 24.0(0.94) |
SS-CF-ML8-RG8 |
8 | 1/2 | 41.0(1.61) | 18.8(0.74) | 16.2(0.64) | 6.4(0.25) | 16.0(0.63) | 27.0(1.06) |
Additional Details
Instrumentation tube fitting for high-pressure, leak-tight, vibration-resistant connections in process, analytical, and instrumentation piping systems. Interchangeable in form, fit and function with other major compression tube fitting brands.
