FITOK Female Connectors (ISO Parallel (RJ), Fractional Tube)
SKU:
Brand: FITOK
Category: Fittings and Accessories › Instrumentation Tube Fittings › Connectors
Tags: Fitok, Pipe Fitting, Connectors, Plumbing
FITOK Female Connectors — 316/316L stainless steel compression double-ferrule tube fittings (Fractional Tube, ISO Parallel Thread (RJ)), FITOK 6D Series. Ordering numbers shown are FITOK's part-num...
Contact us for pricing
This product requires a custom quote
Port 1 Size
Port 2 Size
Quantity
Description
FITOK Female Connectors — 316/316L stainless steel compression double-ferrule tube fittings (Fractional Tube, ISO Parallel Thread (RJ)), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
Available Variants & Specifications
| Ordering No. | Port 1 Size | Port 2 Size | L (Length) | B (Thread) | C (Depth) | E (Min Orifice) | G (Nut Hex) | F (Body Hex) |
|---|---|---|---|---|---|---|---|---|
SS-CF-FL4-RJ4 |
1/4 | 1/4 | 1.48(37.6) | 0.51(12.9) | 0.60(15.2) | 0.18(4.6) | 0.56(14.3) | 0.75(19.1) |
SS-CF-FL4-RJ6 |
1/4 | 3/8 | 1.48(37.6) | 0.62(15.8) | 0.60(15.2) | 0.19(4.8) | 0.56(14.3) | 0.94(23.8) |
SS-CF-FL4-RJ8 |
1/4 | 1/2 | 1.71(43.4) | 0.74(18.8) | 0.60(15.2) | 0.19(4.8) | 0.56(14.3) | 1.06(27.0) |
SS-CF-FL5-RJ4 |
5/16 | 1/4 | 1.51(38.4) | 0.51(12.9) | 0.64(16.3) | 0.22(5.6) | 0.63(15.9) | 0.75(19.1) |
SS-CF-FL5-RJ8 |
5/16 | 1/2 | 1.61(40.9) | 0.74(18.8) | 0.64(16.3) | 0.28(7.1) | 0.63(15.9) | 1.06(27.0) |
SS-CF-FL6-RJ4 |
3/8 | 1/4 | 1.54(39.1) | 0.51(12.9) | 0.66(16.8) | 0.22(5.6) | 0.69(17.5) | 0.75(19.1) |
SS-CF-FL6-RJ6 |
3/8 | 3/8 | 1.52(38.6) | 0.62(15.8) | 0.66(16.8) | 0.25(6.4) | 0.69(17.5) | 0.94(23.8) |
SS-CF-FL6-RJ8 |
3/8 | 1/2 | 1.65(41.9) | 0.74(18.8) | 0.66(16.8) | 0.28(7.1) | 0.69(17.5) | 1.06(27.0) |
SS-CF-FL8-RJ4 |
1/2 | 1/4 | 1.65(41.9) | 0.51(12.9) | 0.90(22.9) | 0.22(5.6) | 0.87(22.2) | 0.81(20.6) |
SS-CF-FL8-RJ6 |
1/2 | 3/8 | 1.75(44.5) | 0.62(15.8) | 0.90(22.9) | 0.25(6.4) | 0.87(22.2) | 0.94(23.8) |
SS-CF-FL8-RJ8 |
1/2 | 1/2 | 1.90(48.3) | 0.74(18.8) | 0.90(22.9) | 0.28(7.1) | 0.87(22.2) | 1.06(27.0) |
Additional Details
Instrumentation tube fitting for high-pressure, leak-tight, vibration-resistant connections in process, analytical, and instrumentation piping systems. Interchangeable in form, fit and function with other major compression tube fitting brands.
Additional Information
Length
6 cm
Width
4 cm
Height
4 cm
Weight
0.1 kg

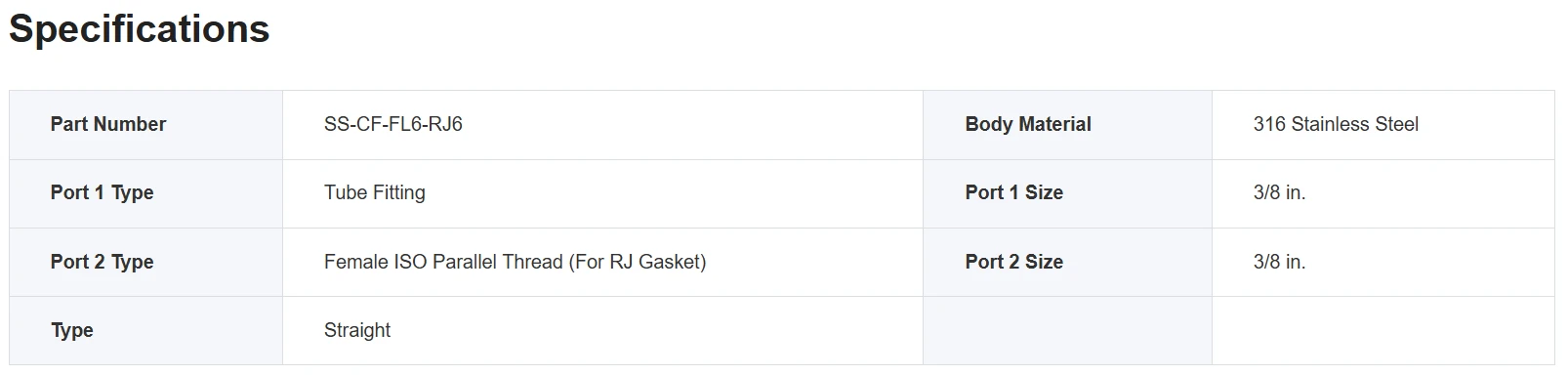

Specifications
Material
316/316L Stainless Steel (Ni content >= 28.5%)
Connection Style
Compression, double-ferrule tube fitting (FITOK 6D Series)
Standard / Certification
Tested to ASTM F1387; dimensionally interchangeable with other major compression tube fitting brands
Pressure Rating
Rated to the maximum working pressure of the mating FITOK tubing (fitting is not the pressure-limiting component)
Thread Type
ISO Parallel Thread (RJ)
Tube Type
Fractional Tube
Max working pressure
6000 psig psig
Operating temperature
-28 to +204 °C °C
FITOK Female Connectors — 316/316L stainless steel compression double-ferrule tube fittings (Fractional Tube, ISO Parallel Thread (RJ)), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
