FITOK Female Connectors (Metric, Metric Tube)
SKU:
Brand: FITOK
Category: Fittings and Accessories › Instrumentation Tube Fittings › Connectors
Tags: Fitok, Pipe Fitting, Connectors, Plumbing
FITOK Female Connectors — 316/316L stainless steel compression double-ferrule tube fittings (Metric Tube, Metric Thread), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as p...
Contact us for pricing
This product requires a custom quote
Port 1 Size
Port 2 Size
Quantity
Description
FITOK Female Connectors — 316/316L stainless steel compression double-ferrule tube fittings (Metric Tube, Metric Thread), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
Available Variants & Specifications
| Ordering No. | Port 1 Size | Port 2 Size | L (Length) | B (Thread) | C (Depth) | E (Min Orifice) | G (Nut Hex) | F (Body Hex) |
|---|---|---|---|---|---|---|---|---|
SS-CF-ML10-MS16 |
10 | M16 x 1.5 | 38.1(1.50) | 14.0(0.55) | 17.2(0.68) | 7.9(0.31) | 19.0(0.75) | 22.0(0.87) |
SS-CF-ML12-MS20 |
12 | M20 x 1.5 | 44.9(1.77) | 16.0(0.63) | 22.8(0.90) | 9.5(0.37) | 22.0(0.87) | 27.0(1.06) |
SS-CF-ML14-MS10 |
14 | M10 x 1 | 42.5(1.67) | 11.0(0.43) | 24.4(0.96) | 4.0(0.16) | 25.0(0.98) | 24.0(0.94) |
SS-CF-ML14-MS20 |
14 | M20 x 1.5 | 44.9(1.77) | 16.0(0.63) | 24.4(0.96) | 10.8(0.43) | 25.0(0.98) | 27.0(1.06) |
SS-CF-ML14-MS22 |
14 | M22 x 1.5 | 45.9(1.81) | 17.0(0.67) | 24.4(0.96) | 11.1(0.44) | 25.0(0.98) | 27.0(1.06) |
SS-CF-ML16-MS20 |
16 | M20 x 1.5 | 44.9(1.77) | 16.0(0.63) | 24.4(0.96) | 10.8(0.43) | 25.0(0.98) | 27.0(1.06) |
SS-CF-ML20-MS20 |
20 | M20 x 1.5 | 46.5(1.83) | 16.0(0.63) | 26.0(1.02) | 10.8(0.43) | 32.0(1.26) | 30.0(1.18) |
SS-CF-ML25-MS27 |
25 | M27 x 2 | 54.4(2.14) | 18.0(0.71) | 31.3(1.23) | 16.1(0.63) | 38.0(1.50) | 35.0(1.38) |
SS-CF-ML6-MS10 |
6 | M10 x 1 | 32.7(1.29) | 11.0(0.43) | 15.3(0.60) | 4.7(0.19) | 14.0(0.55) | 16.0(0.63) |
SS-CF-ML6-MS14 |
6 | M14 x 1.5 | 36.1(1.42) | 13.0(0.51) | 15.3(0.60) | 4.8(0.19) | 14.0(0.55) | 19.0(0.75) |
SS-CF-ML6-MS20 |
6 | M20 x 1.5 | 37.7(1.48) | 16.0(0.63) | 15.3(0.60) | 4.8(0.19) | 14.0(0.55) | 27.0(1.06) |
SS-CF-ML8-MS10 |
8 | M10 x 1 | 33.6(1.32) | 11.0(0.43) | 16.2(0.64) | 4.0(0.16) | 16.0(0.63) | 16.0(0.63) |
SS-CF-ML8-MS14 |
8 | M14 x 1.5 | 35.6(1.40) | 13.0(0.51) | 16.2(0.64) | 6.4(0.25) | 16.0(0.63) | 19.0(0.75) |
SS-CF-ML8-MS20 |
8 | M20 x 1.5 | 38.6(1.52) | 16.0(0.63) | 16.2(0.64) | 6.4(0.25) | 16.0(0.63) | 27.0(1.06) |
SS-CF-ML8-MS8 |
8 | M8 x 1 | 31.6(1.24) | 9.0(0.35) | 16.2(0.64) | 3.0(0.12) | 16.0(0.63) | 14.0(0.55) |
Additional Details
Instrumentation tube fitting for high-pressure, leak-tight, vibration-resistant connections in process, analytical, and instrumentation piping systems. Interchangeable in form, fit and function with other major compression tube fitting brands.
Additional Information
Length
6 cm
Width
4 cm
Height
4 cm
Weight
0.1 kg

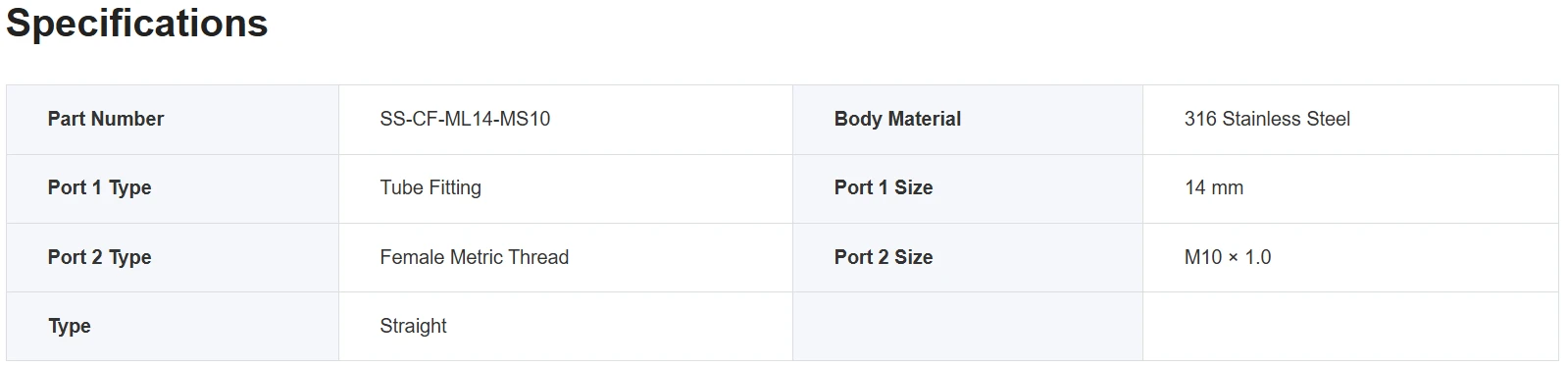

Specifications
Material
316/316L Stainless Steel (Ni content >= 28.5%)
Connection Style
Compression, double-ferrule tube fitting (FITOK 6D Series)
Standard / Certification
Tested to ASTM F1387; dimensionally interchangeable with other major compression tube fitting brands
Pressure Rating
Rated to the maximum working pressure of the mating FITOK tubing (fitting is not the pressure-limiting component)
Thread Type
Metric Thread
Tube Type
Metric Tube
Max working pressure
6000 psig psig
Operating temperature
-28 to +204 °C °C
FITOK Female Connectors — 316/316L stainless steel compression double-ferrule tube fittings (Metric Tube, Metric Thread), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
