FITOK Female Connectors (NPT, Fractional Tube)
Share productSKU:
Click to copyFITOK Female Connectors — 316/316L stainless steel compression double-ferrule tube fittings (Fractional Tube, NPT Thread), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as ...
Contact us for pricing
This product requires a custom quote
In Stock
Port 1 Size
Port 2 Size
Quantity
Add to wishlist
Description
FITOK Female Connectors — 316/316L stainless steel compression double-ferrule tube fittings (Fractional Tube, NPT Thread), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
Available Variants & Specifications
| Ordering No. | Port 1 Size | Port 2 Size | L (Length) | B (Thread) | C (Depth) | E (Min Orifice) | G (Nut Hex) | F (Body Hex) |
|---|---|---|---|---|---|---|---|---|
SS-CF-FL1-NS1 |
1/16 | 1/16 | 0.93(23.6) | 0.39(9.9) | 0.34(8.6) | 0.05(1.3) | 0.31(7.9) | 0.44(11.1) |
SS-CF-FL1-NS2 |
1/16 | 1/8 | 0.96(24.4) | 0.41(10.4) | 0.34(8.6) | 0.05(1.3) | 0.31(7.9) | 0.56(14.3) |
SS-CF-FL10-NS6 |
5/8 | 3/8 | 1.65(41.9) | 0.59(15.0) | 0.96(24.4) | 0.50(12.7) | 1.00(25.4) | 0.94(23.8) |
SS-CF-FL10-NS8 |
5/8 | 1/2 | 1.84(46.7) | 0.78(19.8) | 0.96(24.4) | 0.50(12.7) | 1.00(25.4) | 1.06(27.0) |
SS-CF-FL12-NS12 |
3/4 | 3/4 | 1.90(48.3) | 0.81(20.6) | 0.96(24.4) | 0.62(15.7) | 1.13(28.6) | 1.31(33.3) |
SS-CF-FL12-NS8 |
3/4 | 1/2 | 1.84(46.7) | 0.78(19.8) | 0.96(24.4) | 0.62(15.7) | 1.13(28.6) | 1.06(27.0) |
SS-CF-FL14-NS12 |
7/8 | 3/4 | 1.96(49.8) | 0.81(20.6) | 1.02(25.9) | 0.72(18.3) | 1.25(31.8) | 1.31(33.3) |
SS-CF-FL16-NS12 |
1 | 3/4 | 2.10(53.3) | 0.81(20.6) | 1.23(31.2) | 0.88(22.4) | 1.50(38.1) | 1.37(34.9) |
SS-CF-FL16-NS16 |
1 | 1 | 2.45(62.2) | 1.00(25.4) | 1.23(31.2) | 0.88(22.4) | 1.50(38.1) | 1.63(41.3) |
SS-CF-FL2-NS2 |
1/8 | 1/8 | 1.13(28.7) | 0.41(10.4) | 0.50(12.7) | 0.09(2.3) | 0.44(11.1) | 0.56(14.3) |
SS-CF-FL2-NS4 |
1/8 | 1/4 | 1.32(33.5) | 0.59(15.0) | 0.50(12.7) | 0.09(2.3) | 0.44(11.1) | 0.75(19.1) |
SS-CF-FL20-NS20 |
1 1/4 | 1 1/4 | 2.94(74.7) | 1.00(25.4) | 1.62(41.1) | 1.09(27.7) | 1.87(47.6) | 2.13(54.0) |
SS-CF-FL24-NS24 |
1 1/2 | 1 1/2 | 3.30(83.8) | 1.09(27.7) | 1.97(50.0) | 1.34(34.0) | 2.25(57.2) | 2.37(60.3) |
SS-CF-FL3-NS2 |
3/16 | 1/8 | 1.17(29.7) | 0.41(10.4) | 0.54(13.7) | 0.12(3.0) | 0.50(12.7) | 0.56(14.3) |
SS-CF-FL4-NS2 |
1/4 | 1/8 | 1.23(31.2) | 0.41(10.4) | 0.60(15.2) | 0.19(4.8) | 0.56(14.3) | 0.56(14.3) |
SS-CF-FL4-NS4 |
1/4 | 1/4 | 1.41(35.8) | 0.59(15.0) | 0.60(15.2) | 0.19(4.8) | 0.56(14.3) | 0.75(19.1) |
SS-CF-FL4-NS6 |
1/4 | 3/8 | 1.48(37.6) | 0.59(15.0) | 0.60(15.2) | 0.19(4.8) | 0.56(14.3) | 0.87(22.2) |
SS-CF-FL4-NS8 |
1/4 | 1/2 | 1.67(42.4) | 0.78(19.8) | 0.60(15.2) | 16.3(4.8) | 0.56(14.3) | 1.06(27.0) |
SS-CF-FL5-NS2 |
5/16 | 1/8 | 1.26(32.0) | 0.41(10.4) | 0.64(16.3) | 16.3(6.4) | 0.63(15.9) | 0.56(14.3) |
SS-CF-FL5-NS4 |
5/16 | 1/4 | 1.45(36.8) | 0.59(15.0) | 0.64(16.3) | 0.25(6.4) | 0.63(15.9) | 0.75(19.1) |
SS-CF-FL6-NS12 |
3/8 | 3/4 | 1.88(47.8) | 0.81(20.6) | 0.66(16.8) | 0.28(7.1) | 0.69(17.5) | 1.31(33.3) |
SS-CF-FL6-NS2 |
3/8 | 1/8 | 1.29(32.8) | 0.41(10.4) | 0.66(16.8) | 0.28(7.1) | 0.69(17.5) | 0.63(15.9) |
SS-CF-FL6-NS4 |
3/8 | 1/4 | 1.48(37.6) | 0.59(15.0) | 0.66(16.8) | 0.28(7.1) | 0.69(17.5) | 0.75(19.1) |
SS-CF-FL6-NS6 |
3/8 | 3/8 | 1.54(39.1) | 0.59(15.0) | 0.66(16.8) | 1.34(7.1) | 0.69(17.5) | 0.88(22.2) |
SS-CF-FL6-NS8 |
3/8 | 1/2 | 1.73(43.9) | 0.78(19.8) | 0.66(16.8) | 0.28(7.1) | 0.69(17.5) | 1.06(27.0) |
SS-CF-FL8-NS12 |
1/2 | 3/4 | 1.90(48.3) | 0.81(20.6) | 0.90(22.9) | 0.41(10.4) | 0.87(22.2) | 1.31(33.3) |
SS-CF-FL8-NS4 |
1/2 | 1/4 | 1.59(40.4) | 0.59(15.0) | 0.90(22.9) | 0.41(10.4) | 0.87(22.2) | 0.81(20.6) |
SS-CF-FL8-NS6 |
1/2 | 3/8 | 1.65(41.9) | 0.59(15.0) | 0.90(22.9) | 0.41(10.4) | 0.87(22.2) | 0.87(22.2) |
SS-CF-FL8-NS8 |
1/2 | 1/2 | 1.84(46.7) | 0.78(19.8) | 0.90(22.9) | 0.41(10.4) | 0.87(22.2) | 1.06(27.0) |
Additional Details
Instrumentation tube fitting for high-pressure, leak-tight, vibration-resistant connections in process, analytical, and instrumentation piping systems. Interchangeable in form, fit and function with other major compression tube fitting brands.
Additional Information
Length
6 cm
Width
4 cm
Height
4 cm
Weight
0.1 kg

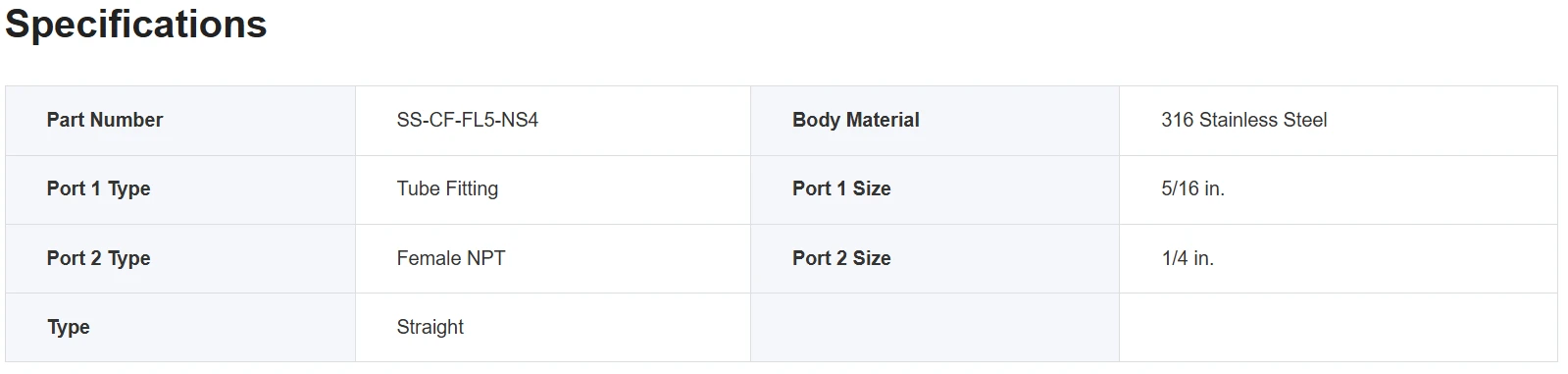

Specifications
General
Material
316/316L Stainless Steel (Ni content >= 28.5%)
Connection Style
Compression, double-ferrule tube fitting (FITOK 6D Series)
Standard / Certification
Tested to ASTM F1387; dimensionally interchangeable with other major compression tube fitting brands
Pressure Rating
Rated to the maximum working pressure of the mating FITOK tubing (fitting is not the pressure-limiting component)
Thread Type
NPT Thread
Tube Type
Fractional Tube
Technical Specifications
Max working pressure
6000 psig psig
Operating temperature
-28 to +204 °C °C
FITOK Female Connectors — 316/316L stainless steel compression double-ferrule tube fittings (Fractional Tube, NPT Thread), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
Available Variants & Specifications
| Ordering No. | Port 1 Size | Port 2 Size | L (Length) | B (Thread) | C (Depth) | E (Min Orifice) | G (Nut Hex) | F (Body Hex) |
|---|---|---|---|---|---|---|---|---|
SS-CF-FL1-NS1 |
1/16 | 1/16 | 0.93(23.6) | 0.39(9.9) | 0.34(8.6) | 0.05(1.3) | 0.31(7.9) | 0.44(11.1) |
SS-CF-FL1-NS2 |
1/16 | 1/8 | 0.96(24.4) | 0.41(10.4) | 0.34(8.6) | 0.05(1.3) | 0.31(7.9) | 0.56(14.3) |
SS-CF-FL10-NS6 |
5/8 | 3/8 | 1.65(41.9) | 0.59(15.0) | 0.96(24.4) | 0.50(12.7) | 1.00(25.4) | 0.94(23.8) |
SS-CF-FL10-NS8 |
5/8 | 1/2 | 1.84(46.7) | 0.78(19.8) | 0.96(24.4) | 0.50(12.7) | 1.00(25.4) | 1.06(27.0) |
SS-CF-FL12-NS12 |
3/4 | 3/4 | 1.90(48.3) | 0.81(20.6) | 0.96(24.4) | 0.62(15.7) | 1.13(28.6) | 1.31(33.3) |
SS-CF-FL12-NS8 |
3/4 | 1/2 | 1.84(46.7) | 0.78(19.8) | 0.96(24.4) | 0.62(15.7) | 1.13(28.6) | 1.06(27.0) |
SS-CF-FL14-NS12 |
7/8 | 3/4 | 1.96(49.8) | 0.81(20.6) | 1.02(25.9) | 0.72(18.3) | 1.25(31.8) | 1.31(33.3) |
SS-CF-FL16-NS12 |
1 | 3/4 | 2.10(53.3) | 0.81(20.6) | 1.23(31.2) | 0.88(22.4) | 1.50(38.1) | 1.37(34.9) |
SS-CF-FL16-NS16 |
1 | 1 | 2.45(62.2) | 1.00(25.4) | 1.23(31.2) | 0.88(22.4) | 1.50(38.1) | 1.63(41.3) |
SS-CF-FL2-NS2 |
1/8 | 1/8 | 1.13(28.7) | 0.41(10.4) | 0.50(12.7) | 0.09(2.3) | 0.44(11.1) | 0.56(14.3) |
SS-CF-FL2-NS4 |
1/8 | 1/4 | 1.32(33.5) | 0.59(15.0) | 0.50(12.7) | 0.09(2.3) | 0.44(11.1) | 0.75(19.1) |
SS-CF-FL20-NS20 |
1 1/4 | 1 1/4 | 2.94(74.7) | 1.00(25.4) | 1.62(41.1) | 1.09(27.7) | 1.87(47.6) | 2.13(54.0) |
SS-CF-FL24-NS24 |
1 1/2 | 1 1/2 | 3.30(83.8) | 1.09(27.7) | 1.97(50.0) | 1.34(34.0) | 2.25(57.2) | 2.37(60.3) |
SS-CF-FL3-NS2 |
3/16 | 1/8 | 1.17(29.7) | 0.41(10.4) | 0.54(13.7) | 0.12(3.0) | 0.50(12.7) | 0.56(14.3) |
SS-CF-FL4-NS2 |
1/4 | 1/8 | 1.23(31.2) | 0.41(10.4) | 0.60(15.2) | 0.19(4.8) | 0.56(14.3) | 0.56(14.3) |
SS-CF-FL4-NS4 |
1/4 | 1/4 | 1.41(35.8) | 0.59(15.0) | 0.60(15.2) | 0.19(4.8) | 0.56(14.3) | 0.75(19.1) |
SS-CF-FL4-NS6 |
1/4 | 3/8 | 1.48(37.6) | 0.59(15.0) | 0.60(15.2) | 0.19(4.8) | 0.56(14.3) | 0.87(22.2) |
SS-CF-FL4-NS8 |
1/4 | 1/2 | 1.67(42.4) | 0.78(19.8) | 0.60(15.2) | 16.3(4.8) | 0.56(14.3) | 1.06(27.0) |
SS-CF-FL5-NS2 |
5/16 | 1/8 | 1.26(32.0) | 0.41(10.4) | 0.64(16.3) | 16.3(6.4) | 0.63(15.9) | 0.56(14.3) |
SS-CF-FL5-NS4 |
5/16 | 1/4 | 1.45(36.8) | 0.59(15.0) | 0.64(16.3) | 0.25(6.4) | 0.63(15.9) | 0.75(19.1) |
SS-CF-FL6-NS12 |
3/8 | 3/4 | 1.88(47.8) | 0.81(20.6) | 0.66(16.8) | 0.28(7.1) | 0.69(17.5) | 1.31(33.3) |
SS-CF-FL6-NS2 |
3/8 | 1/8 | 1.29(32.8) | 0.41(10.4) | 0.66(16.8) | 0.28(7.1) | 0.69(17.5) | 0.63(15.9) |
SS-CF-FL6-NS4 |
3/8 | 1/4 | 1.48(37.6) | 0.59(15.0) | 0.66(16.8) | 0.28(7.1) | 0.69(17.5) | 0.75(19.1) |
SS-CF-FL6-NS6 |
3/8 | 3/8 | 1.54(39.1) | 0.59(15.0) | 0.66(16.8) | 1.34(7.1) | 0.69(17.5) | 0.88(22.2) |
SS-CF-FL6-NS8 |
3/8 | 1/2 | 1.73(43.9) | 0.78(19.8) | 0.66(16.8) | 0.28(7.1) | 0.69(17.5) | 1.06(27.0) |
SS-CF-FL8-NS12 |
1/2 | 3/4 | 1.90(48.3) | 0.81(20.6) | 0.90(22.9) | 0.41(10.4) | 0.87(22.2) | 1.31(33.3) |
SS-CF-FL8-NS4 |
1/2 | 1/4 | 1.59(40.4) | 0.59(15.0) | 0.90(22.9) | 0.41(10.4) | 0.87(22.2) | 0.81(20.6) |
SS-CF-FL8-NS6 |
1/2 | 3/8 | 1.65(41.9) | 0.59(15.0) | 0.90(22.9) | 0.41(10.4) | 0.87(22.2) | 0.87(22.2) |
SS-CF-FL8-NS8 |
1/2 | 1/2 | 1.84(46.7) | 0.78(19.8) | 0.90(22.9) | 0.41(10.4) | 0.87(22.2) | 1.06(27.0) |
Additional Details
Instrumentation tube fitting for high-pressure, leak-tight, vibration-resistant connections in process, analytical, and instrumentation piping systems. Interchangeable in form, fit and function with other major compression tube fitting brands.
