FITOK Male Adapters (ISO Parallel (RP), Metric Tube)
SKU:
Brand: FITOK
Category: Fittings and Accessories › Instrumentation Tube Fittings › Connectors
Tags: Fitok, Pipe Fitting, Connectors, Plumbing
FITOK Male Adapters — 316/316L stainless steel compression double-ferrule tube fittings (Metric Tube, ISO Parallel Thread (RP)), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suff...
Contact us for pricing
This product requires a custom quote
Port 1 Size
Port 2 Size
Quantity
Description
FITOK Male Adapters — 316/316L stainless steel compression double-ferrule tube fittings (Metric Tube, ISO Parallel Thread (RP)), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
Available Variants & Specifications
| Ordering No. | Port 1 Size | Port 2 Size | L (Length) | B (Thread) | E (Min Orifice) | F (Body Hex) |
|---|---|---|---|---|---|---|
SS-AM-AMT28-RP16 |
28 | 1 | 72.7(2.86) | 18.3(0.72) | 19.8(0.78) | 41.0(1.61) |
SS-AM-AMT28-RP20 |
28 | 1 1/4 | 77.3(3.04) | 19.8(0.78) | 22.5(0.89) | 50.0(1.97) |
SS-AM-AMT30-RP20 |
30 | 1 1/4 | 80.8(3.18) | 19.8(0.78) | 24.3(0.96) | 50.0(1.97) |
SS-AM-AMT32-RP20 |
32 | 1 1/4 | 82.1(3.23) | 19.8(0.78) | 26.5(1.04) | 50.0(1.97) |
SS-AM-AMT38-RP24 |
38 | 1 1/2 | 94.5(3.72) | 20.6(0.81) | 31.6(1.24) | 55.0(2.17) |
SS-AM-MT10-RP4 |
10 | 1/4 | 38.9(1.53) | 11.2(0.44) | 6.4(0.25) | 19.0(0.75) |
SS-AM-MT10-RP6 |
10 | 3/8 | 39.7(1.56) | 11.2(0.44) | 7.1(0.28) | 22.0(0.87) |
SS-AM-MT10-RP8 |
10 | 1/2 | 42.9(1.69) | 14.2(0.56) | 7.1(0.28) | 27.0(1.06) |
SS-AM-MT12-RP4 |
12 | 1/4 | 43.7(1.72) | 11.2(0.44) | 6.4(0.25) | 19.0(0.75) |
SS-AM-MT12-RP6 |
12 | 3/8 | 44.5(1.75) | 11.2(0.44) | 7.9(0.31) | 22.0(0.87) |
SS-AM-MT12-RP8 |
12 | 1/2 | 49.2(1.94) | 14.2(0.56) | 9.1(0.36) | 27.0(1.06) |
SS-AM-MT16-RP8 |
16 | 1/2 | 50.8(2.00) | 14.2(0.56) | 11.9(0.47) | 27.0(1.06) |
SS-AM-MT18-RP12 |
18 | 3/4 | 53.2(2.09) | 16.0(0.63) | 14.0(0.55) | 33.0(1.30) |
SS-AM-MT20-RP12 |
20 | 3/4 | 54.0(2.13) | 16.0(0.63) | 15.5(0.61) | 33.0(1.30) |
SS-AM-MT25-RP16 |
25 | 1 | 65.1(2.56) | 18.3(0.72) | 19.8(0.78) | 41.0(1.61) |
SS-AM-MT3-RP2 |
3 | 1/8 | 31.0(1.22) | 7.1(0.28) | 1.8(0.07) | 14.0(0.55) |
SS-AM-MT4-RP2 |
4 | 1/8 | 31.8(1.25) | 7.1(0.28) | 2.0(0.08) | 14.0(0.55) |
SS-AM-MT6-RP2 |
6 | 1/8 | 34.3(1.35) | 7.1(0.28) | 4.0(0.16) | 14.0(0.55) |
SS-AM-MT6-RP4 |
6 | 1/4 | 38.1(1.50) | 11.2(0.44) | 4.0(0.16) | 19.0(0.75) |
SS-AM-MT8-RP4 |
8 | 1/4 | 38.9(1.53) | 11.2(0.44) | 5.6(0.22) | 19.0(0.75) |
Additional Details
Instrumentation tube fitting for high-pressure, leak-tight, vibration-resistant connections in process, analytical, and instrumentation piping systems. Interchangeable in form, fit and function with other major compression tube fitting brands.
Additional Information
Length
6 cm
Width
4 cm
Height
4 cm
Weight
0.1 kg

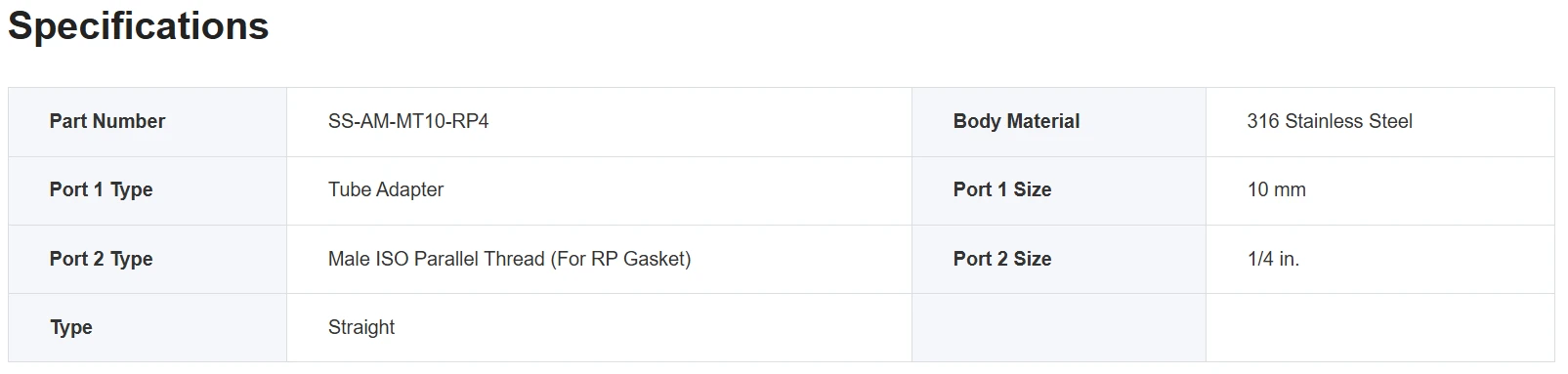

Specifications
Material
316/316L Stainless Steel (Ni content >= 28.5%)
Connection Style
Compression, double-ferrule tube fitting (FITOK 6D Series)
Standard / Certification
Tested to ASTM F1387; dimensionally interchangeable with other major compression tube fitting brands
Pressure Rating
Rated to the maximum working pressure of the mating FITOK tubing (fitting is not the pressure-limiting component)
Thread Type
ISO Parallel Thread (RP)
Tube Type
Metric Tube
Max working pressure
6000 psig psig
Operating temperature
-28 to +204 °C °C
FITOK Male Adapters — 316/316L stainless steel compression double-ferrule tube fittings (Metric Tube, ISO Parallel Thread (RP)), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
Available Variants & Specifications
| Ordering No. | Port 1 Size | Port 2 Size | L (Length) | B (Thread) | E (Min Orifice) | F (Body Hex) |
|---|---|---|---|---|---|---|
SS-AM-AMT28-RP16 |
28 | 1 | 72.7(2.86) | 18.3(0.72) | 19.8(0.78) | 41.0(1.61) |
SS-AM-AMT28-RP20 |
28 | 1 1/4 | 77.3(3.04) | 19.8(0.78) | 22.5(0.89) | 50.0(1.97) |
SS-AM-AMT30-RP20 |
30 | 1 1/4 | 80.8(3.18) | 19.8(0.78) | 24.3(0.96) | 50.0(1.97) |
SS-AM-AMT32-RP20 |
32 | 1 1/4 | 82.1(3.23) | 19.8(0.78) | 26.5(1.04) | 50.0(1.97) |
SS-AM-AMT38-RP24 |
38 | 1 1/2 | 94.5(3.72) | 20.6(0.81) | 31.6(1.24) | 55.0(2.17) |
SS-AM-MT10-RP4 |
10 | 1/4 | 38.9(1.53) | 11.2(0.44) | 6.4(0.25) | 19.0(0.75) |
SS-AM-MT10-RP6 |
10 | 3/8 | 39.7(1.56) | 11.2(0.44) | 7.1(0.28) | 22.0(0.87) |
SS-AM-MT10-RP8 |
10 | 1/2 | 42.9(1.69) | 14.2(0.56) | 7.1(0.28) | 27.0(1.06) |
SS-AM-MT12-RP4 |
12 | 1/4 | 43.7(1.72) | 11.2(0.44) | 6.4(0.25) | 19.0(0.75) |
SS-AM-MT12-RP6 |
12 | 3/8 | 44.5(1.75) | 11.2(0.44) | 7.9(0.31) | 22.0(0.87) |
SS-AM-MT12-RP8 |
12 | 1/2 | 49.2(1.94) | 14.2(0.56) | 9.1(0.36) | 27.0(1.06) |
SS-AM-MT16-RP8 |
16 | 1/2 | 50.8(2.00) | 14.2(0.56) | 11.9(0.47) | 27.0(1.06) |
SS-AM-MT18-RP12 |
18 | 3/4 | 53.2(2.09) | 16.0(0.63) | 14.0(0.55) | 33.0(1.30) |
SS-AM-MT20-RP12 |
20 | 3/4 | 54.0(2.13) | 16.0(0.63) | 15.5(0.61) | 33.0(1.30) |
SS-AM-MT25-RP16 |
25 | 1 | 65.1(2.56) | 18.3(0.72) | 19.8(0.78) | 41.0(1.61) |
SS-AM-MT3-RP2 |
3 | 1/8 | 31.0(1.22) | 7.1(0.28) | 1.8(0.07) | 14.0(0.55) |
SS-AM-MT4-RP2 |
4 | 1/8 | 31.8(1.25) | 7.1(0.28) | 2.0(0.08) | 14.0(0.55) |
SS-AM-MT6-RP2 |
6 | 1/8 | 34.3(1.35) | 7.1(0.28) | 4.0(0.16) | 14.0(0.55) |
SS-AM-MT6-RP4 |
6 | 1/4 | 38.1(1.50) | 11.2(0.44) | 4.0(0.16) | 19.0(0.75) |
SS-AM-MT8-RP4 |
8 | 1/4 | 38.9(1.53) | 11.2(0.44) | 5.6(0.22) | 19.0(0.75) |
Additional Details
Instrumentation tube fitting for high-pressure, leak-tight, vibration-resistant connections in process, analytical, and instrumentation piping systems. Interchangeable in form, fit and function with other major compression tube fitting brands.
