FITOK Male Adapters (ISO Parallel (RP), Fractional Tube)
SKU:
Brand: FITOK
Category: Fittings and Accessories › Instrumentation Tube Fittings › Connectors
Tags: Fitok, Pipe Fitting, Connectors, Plumbing
FITOK Male Adapters — 316/316L stainless steel compression double-ferrule tube fittings (Fractional Tube, ISO Parallel Thread (RP)), FITOK 6D Series. Ordering numbers shown are FITOK's part-number ...
Contact us for pricing
This product requires a custom quote
Port 1 Size
Port 2 Size
Quantity
Description
FITOK Male Adapters — 316/316L stainless steel compression double-ferrule tube fittings (Fractional Tube, ISO Parallel Thread (RP)), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
Available Variants & Specifications
| Ordering No. | Port 1 Size | Port 2 Size | L (Length) | B (Thread) | E (Min Orifice) | F (Body Hex) |
|---|---|---|---|---|---|---|
SS-AM-FT10-RP8 |
5/8 | 1/2 | 1.97(50.0) | 0.56(14.2) | 0.47(11.9) | 1.06(27.0) |
SS-AM-FT12-RP12 |
3/4 | 3/4 | 2.09(53.1) | 0.63(16.0) | 0.58(14.7) | 1.32(33.5) |
SS-AM-FT16-RP16 |
1 | 1 | 2.49(63.3) | 0.72(18.3) | 0.78(19.8) | 1.63(41.3) |
SS-AM-FT2-RP2 |
1/8 | 1/8 | 1.09(27.7) | 0.28(7.1) | 0.08(2.0) | 0.56(14.3) |
SS-AM-FT2-RP4 |
1/8 | 1/4 | 1.31(33.3) | 0.44(11.2) | 0.08(2.0) | 0.75(19.1) |
SS-AM-FT4-RP2 |
1/4 | 1/8 | 1.19(30.2) | 0.28(7.1)) | 0.16(4.1) | 0.56(14.3) |
SS-AM-FT4-RP4 |
1/4 | 1/4 | 1.50(38.1) | 0.44(11.2) | 0.18(4.6) | 0.75(19.1) |
SS-AM-FT6-RP2 |
3/8 | 1/8 | 1.34(34.0) | 0.28(7.1) | 0.16(4.1) | 0.75(19.1) |
SS-AM-FT6-RP4 |
3/8 | 1/4 | 1.47(37.3) | 0.44(11.2) | 0.25(6.4) | 0.75(19.1) |
SS-AM-FT6-RP6 |
3/8 | 3/8 | 1.50(38.1) | 0.44(11.2) | 0.27(6.9) | 0.87(22.2) |
SS-AM-FT6-RP8 |
3/8 | 1/2 | 1.69(42.9) | 0.56(14.2) | 0.27(6.9) | 1.06(27.0) |
SS-AM-FT8-RP4 |
1/2 | 1/4 | 1.69(42.9) | 0.44(11.2) | 0.25(6.4) | 0.75(19.1) |
SS-AM-FT8-RP6 |
1/2 | 3/8 | 1.72(43.7) | 0.44(11.2) | 0.31(7.9) | 0.87(22.2) |
SS-AM-FT8-RP8 |
1/2 | 1/2 | 1.94(49.3) | 0.56(14.2) | 0.37(9.4) | 1.06(27.0) |
Additional Details
Instrumentation tube fitting for high-pressure, leak-tight, vibration-resistant connections in process, analytical, and instrumentation piping systems. Interchangeable in form, fit and function with other major compression tube fitting brands.
Additional Information
Length
6 cm
Width
4 cm
Height
4 cm
Weight
0.1 kg

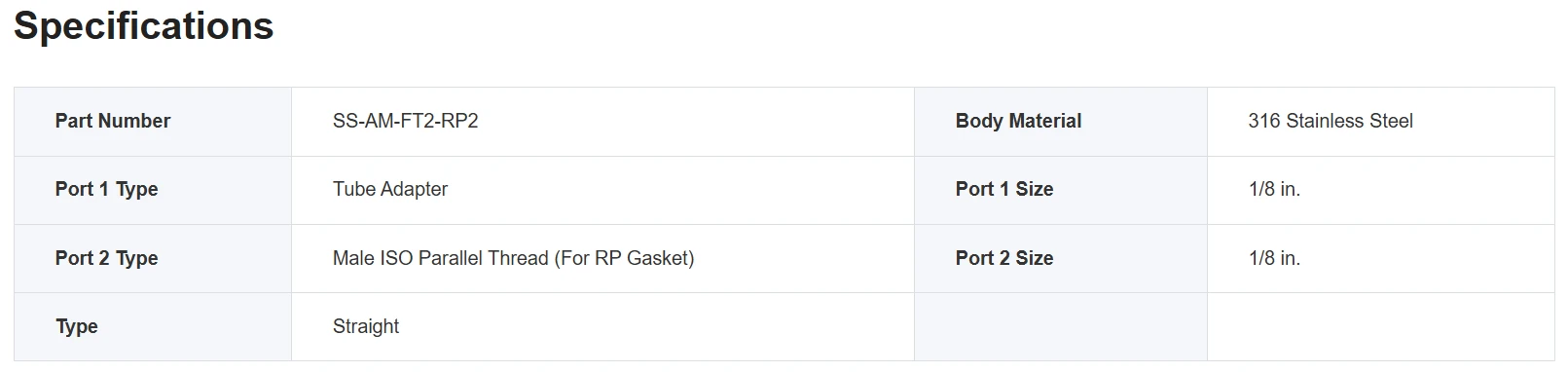

Specifications
Material
316/316L Stainless Steel (Ni content >= 28.5%)
Connection Style
Compression, double-ferrule tube fitting (FITOK 6D Series)
Standard / Certification
Tested to ASTM F1387; dimensionally interchangeable with other major compression tube fitting brands
Pressure Rating
Rated to the maximum working pressure of the mating FITOK tubing (fitting is not the pressure-limiting component)
Thread Type
ISO Parallel Thread (RP)
Tube Type
Fractional Tube
Max working pressure
6000 psig psig
Operating temperature
-28 to +204 °C °C
FITOK Male Adapters — 316/316L stainless steel compression double-ferrule tube fittings (Fractional Tube, ISO Parallel Thread (RP)), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
