FITOK Male Connectors (Metric (MST), Fractional Tube)
Share productSKU:
Click to copyFITOK Male Connectors — 316/316L stainless steel compression double-ferrule tube fittings (Fractional Tube, Metric Thread (MST)), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suf...
Contact us for pricing
This product requires a custom quote
In Stock
Port 1 Size
Port 2 Size
Quantity
Add to wishlist
Description
FITOK Male Connectors — 316/316L stainless steel compression double-ferrule tube fittings (Fractional Tube, Metric Thread (MST)), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
Available Variants & Specifications
| Ordering No. | Port 1 Size | Port 2 Size | L (Length) | B (Thread) | C (Depth) | E (Min Orifice) | G (Nut Hex) | F (Body Hex) |
|---|---|---|---|---|---|---|---|---|
SS-CM-FL4-MST14 |
1/4 | M14X1.5 | 1.39(35.2) | 0.43(11.0) | 0.60(15.2) | 0.19(4.8) | 0.56(14.3) | 0.75(19.1) |
SS-CM-FL6-MST14 |
3/8 | M14X1.5 | 1.44(36.7) | 0.43(11.0) | 0.66(16.8) | 0.28(7.1) | 0.69(17.5) | 0.75(19.1) |
SS-CM-FL6-MST20 |
3/8 | M20X1.5 | 1.62(41.2) | 0.55(14.0) | 0.66(16.8) | 0.28(7.1) | 0.69(17.5) | 1.06(27.0) |
SS-CM-FL8-MST14 |
1/2 | M14X1.5 | 1.58(40.2) | 0.43(11.0) | 0.90(22.9) | 0.30(7.5) | 0.87(22.2) | 0.81(20.6) |
SS-CM-FL8-MST20 |
1/2 | M20X1.5 | 1.73(44.0) | 0.55(14.0) | 0.90(22.9) | 0.41(10.4) | 0.87(22.2) | 1.06(27.0) |
Additional Details
Instrumentation tube fitting for high-pressure, leak-tight, vibration-resistant connections in process, analytical, and instrumentation piping systems. Interchangeable in form, fit and function with other major compression tube fitting brands.
Additional Information
Length
6 cm
Width
4 cm
Height
4 cm
Weight
0.1 kg

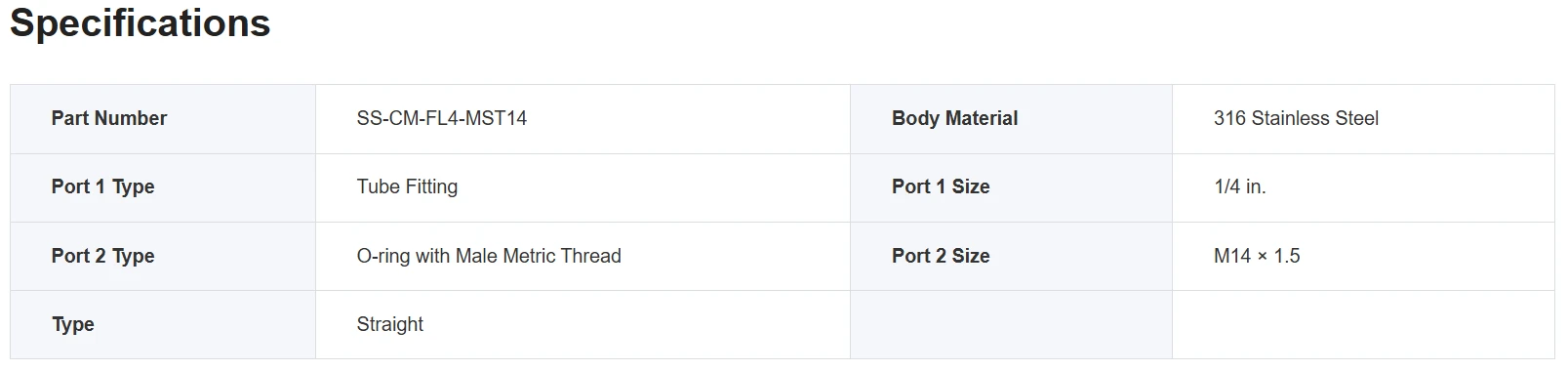

Specifications
General
Material
316/316L Stainless Steel (Ni content >= 28.5%)
Connection Style
Compression, double-ferrule tube fitting (FITOK 6D Series)
Standard / Certification
Tested to ASTM F1387; dimensionally interchangeable with other major compression tube fitting brands
Pressure Rating
Rated to the maximum working pressure of the mating FITOK tubing (fitting is not the pressure-limiting component)
Thread Type
Metric Thread (MST)
Tube Type
Fractional Tube
Technical Specifications
Max working pressure
6000 psig psig
Operating temperature
-28 to +204 °C °C
