FITOK Male Connectors (Metric (MST), Metric Tube)
SKU:
Brand: FITOK
Category: Fittings and Accessories › Instrumentation Tube Fittings › Connectors
Tags: Fitok, Pipe Fitting, Connectors, Plumbing
FITOK Male Connectors — 316/316L stainless steel compression double-ferrule tube fittings (Metric Tube, Metric Thread (MST)), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix ...
Contact us for pricing
This product requires a custom quote
Port 1 Size
Port 2 Size
Quantity
Description
FITOK Male Connectors — 316/316L stainless steel compression double-ferrule tube fittings (Metric Tube, Metric Thread (MST)), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
Available Variants & Specifications
| Ordering No. | Port 1 Size | Port 2 Size | L (Length) | B (Thread) | C (Depth) | E (Min Orifice) | G (Nut Hex) | F (Body Hex) |
|---|---|---|---|---|---|---|---|---|
SS-CM-ML10-MST14 |
10 | M14 x 1.5 | 40.0(1.57) | 11.0(0.43) | 17.2(0.68) | 7.5(0.30) | 19.0(0.75) | 19.0(0.75) |
SS-CM-ML10-MST20 |
10 | M20 x 1.5 | 47.2(1.86) | 14.0(0.55) | 17.2(0.68) | 7.9(0.31) | 19.0(0.75) | 27.0(1.06) |
SS-CM-ML12-MST14 |
12 | M14 x 1.5 | 40.2(1.58) | 11.0(0.43) | 22.8(0.90) | 7.5(0.30) | 22.0(0.87) | 22.0(0.87) |
SS-CM-ML12-MST20 |
12 | M20 x 1.5 | 47.2(1.86) | 14.0(0.55) | 22.8(0.90) | 9.5(0.37) | 22.0(0.87) | 27.0(1.06) |
SS-CM-ML6-MST14 |
6 | M14 x 1.5 | 38.7(1.52) | 11.0(0.43) | 15.3(0.60) | 4.8(0.19) | 14.0(0.55) | 19.0(0.75) |
Additional Details
Instrumentation tube fitting for high-pressure, leak-tight, vibration-resistant connections in process, analytical, and instrumentation piping systems. Interchangeable in form, fit and function with other major compression tube fitting brands.
Additional Information
Length
6 cm
Width
4 cm
Height
4 cm
Weight
0.1 kg

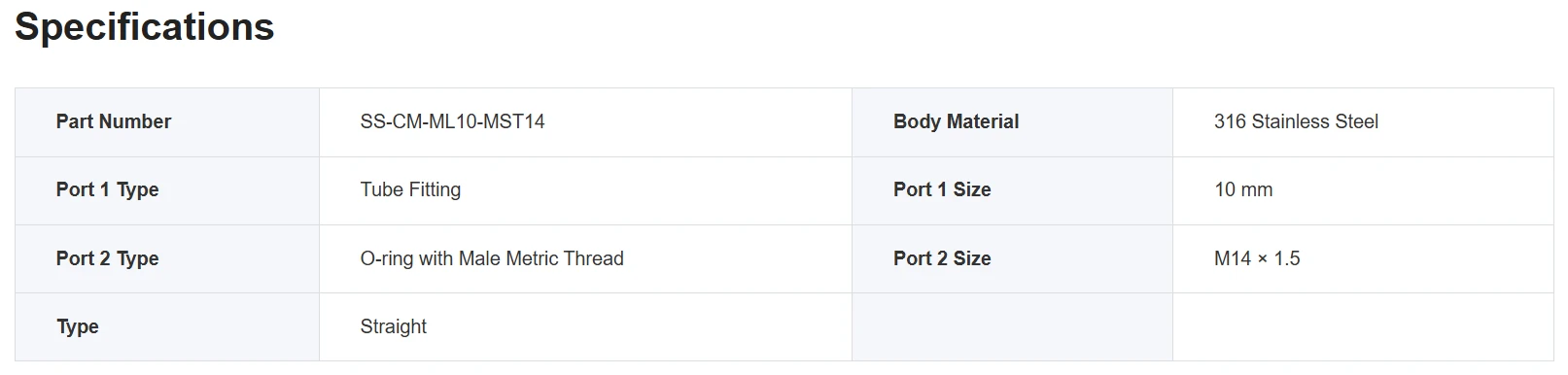

Specifications
Material
316/316L Stainless Steel (Ni content >= 28.5%)
Connection Style
Compression, double-ferrule tube fitting (FITOK 6D Series)
Standard / Certification
Tested to ASTM F1387; dimensionally interchangeable with other major compression tube fitting brands
Pressure Rating
Rated to the maximum working pressure of the mating FITOK tubing (fitting is not the pressure-limiting component)
Thread Type
Metric Thread (MST)
Tube Type
Metric Tube
Max working pressure
6000 psig psig
Operating temperature
-28 to +204 °C °C
