FITOK Female Branch Tees (SAE/MS Straight, Fractional Tube)
Share productSKU:
Click to copyFITOK Female Branch Tees — 316/316L stainless steel compression double-ferrule tube fittings (Fractional Tube, SAE/MS Straight Thread), FITOK 6D Series. Ordering numbers shown are FITOK's part-numb...
Contact us for pricing
This product requires a custom quote
In Stock
Port 1 Size
Port 2 Size
Quantity
Add to wishlist
Description
FITOK Female Branch Tees — 316/316L stainless steel compression double-ferrule tube fittings (Fractional Tube, SAE/MS Straight Thread), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
Available Variants & Specifications
| Ordering No. | Port 1 Size | Port 2 Size | L (Length) | C (Depth) | G (Nut Hex) | F (Body Hex) | E (Min Orifice) | B (Thread) | Lx |
|---|---|---|---|---|---|---|---|---|---|
SS-TTF-FL10-NS8 |
5/8 | 1/2 | 1.53(38.9) | 0.96(24.4) | 1.00(25.4) | 1.00(25.4) | 0.50(12.7) | 0.78(19.8) | 1.12(28.4) |
SS-TTF-FL12-NS12 |
3/4 | 3/4 | 1.76(44.7) | 0.96(24.4) | 1.13(28.6) | 1.37(34.9) | 0.62(15.7) | 0.81(20.6) | 1.25(31.8) |
SS-TTF-FL14-NS12 |
7/8 | 3/4 | 1.76(44.7) | 1.02(25.9) | 1.25(31.8) | 1.37(34.9) | 0.72(18.3) | 0.81(20.6) | 1.25(31.8) |
SS-TTF-FL16-NS12 |
1 | 3/4 | 1.93(49.0) | 1.23(31.2) | 1.50(38.1) | 1.37(34.9) | 0.88(22.4) | 0.81(20.6) | 1.25(31.8) |
SS-TTF-FL2-NS2 |
1/8 | 1/8 | 0.97(24.6) | 0.50(12.7) | 0.44(11.1) | 0.50(12.7) | 0.09(2.3) | 0.41(10.4) | 0.75(19.1) |
SS-TTF-FL3-NS2 |
3/16 | 1/8 | 1.01(25.7) | 0.54(13.7) | 0.50(12.7) | 0.50(12.7) | 0.12(3.0) | 0.41(10.4) | 0.75(19.1) |
SS-TTF-FL4-NS2 |
1/4 | 1/8 | 1.06(26.9) | 0.60(15.2) | 0.56(14.3) | 0.50(12.7) | 0.19(4.8) | 0.41(10.4) | 0.75(19.1) |
SS-TTF-FL4-NS4 |
1/4 | 1/4 | 1.17(29.7) | 0.60(15.2) | 0.56(14.3) | 0.69(17.5) | 0.19(4.8) | 0.59(15.0) | 0.88(22.4) |
SS-TTF-FL5-NS2 |
5/16 | 1/8 | 1.17(29.7) | 0.64(16.2) | 0.63(15.9) | 0.63(15.9) | 0.25(6.4) | 0.41(10.4) | 0.75(19.1) |
SS-TTF-FL6-NS4 |
3/8 | 1/4 | 1.23(31.2) | 0.66(16.8) | 0.69(17.5) | 0.69(17.5) | 0.28(7.1) | 0.59(15.0) | 0.88(22.4) |
SS-TTF-FL6-NS6 |
3/8 | 3/8 | 1.31(33.3) | 0.66(16.8) | 0.69(17.5) | 0.81(20.6) | 0.28(7.1) | 0.59(15.0) | 0.88(22.4) |
SS-TTF-FL6-NS8 |
3/8 | 1/2 | 1.42(36.1) | 0.66(16.8) | 0.69(17.5) | 1.00(25.4) | 0.28(7.1) | 0.78(19.8) | 1.12(28.4) |
SS-TTF-FL8-NS4 |
1/2 | 1/4 | 1.42(36.1) | 0.90(22.9) | 0.87(22.2) | 0.81(20.6) | 0.41(10.4) | 0.59(15.0) | 0.88(22.4) |
SS-TTF-FL8-NS6 |
1/2 | 3/8 | 1.42(36.1) | 0.90(22.9) | 0.87(22.2) | 0.81(20.6) | 0.41(10.4) | 0.59(15.0) | 0.88(22.4) |
SS-TTF-FL8-NS8 |
1/2 | 1/2 | 1.53(38.9) | 0.90(22.9) | 0.87(22.2) | 1.00(25.4) | 0.41(10.4) | 0.78(19.8) | 1.12(28.4) |
Additional Details
Instrumentation tube fitting for high-pressure, leak-tight, vibration-resistant connections in process, analytical, and instrumentation piping systems. Interchangeable in form, fit and function with other major compression tube fitting brands.
Additional Information
Length
6 cm
Width
4 cm
Height
4 cm
Weight
0.1 kg

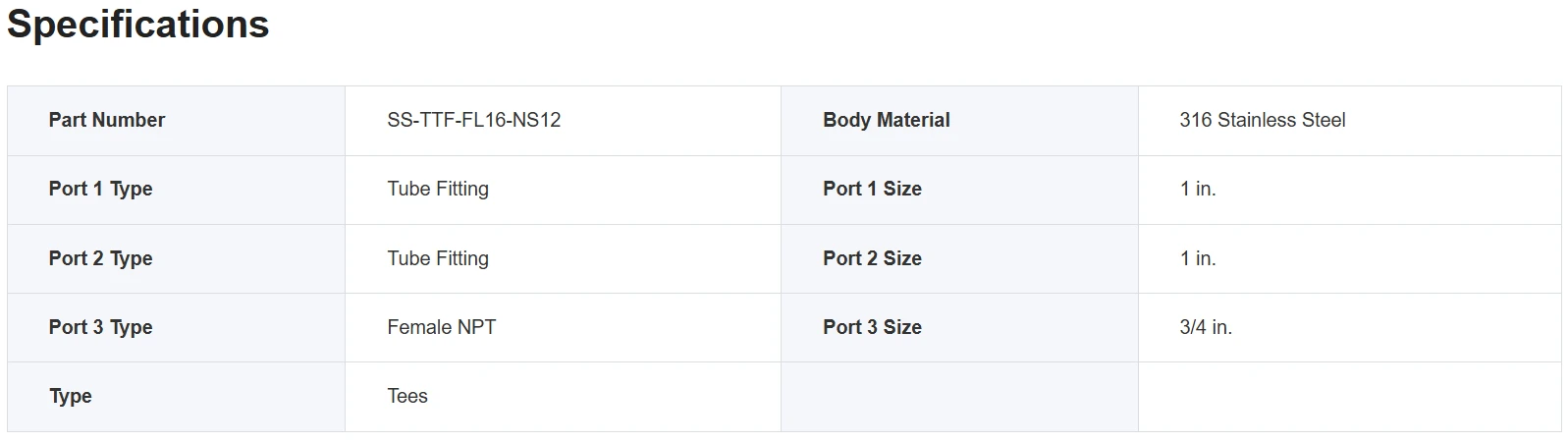

Specifications
General
Material
316/316L Stainless Steel (Ni content >= 28.5%)
Connection Style
Compression, double-ferrule tube fitting (FITOK 6D Series)
Standard / Certification
Tested to ASTM F1387; dimensionally interchangeable with other major compression tube fitting brands
Pressure Rating
Rated to the maximum working pressure of the mating FITOK tubing (fitting is not the pressure-limiting component)
Thread Type
NPT Thread
Tube Type
Fractional Tube
Technical Specifications
Max working pressure
6000 psig psig
Operating temperature
-28 to +204 °C °C
FITOK Female Branch Tees — 316/316L stainless steel compression double-ferrule tube fittings (Fractional Tube, SAE/MS Straight Thread), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
Available Variants & Specifications
| Ordering No. | Port 1 Size | Port 2 Size | L (Length) | C (Depth) | G (Nut Hex) | F (Body Hex) | E (Min Orifice) | B (Thread) | Lx |
|---|---|---|---|---|---|---|---|---|---|
SS-TTF-FL10-NS8 |
5/8 | 1/2 | 1.53(38.9) | 0.96(24.4) | 1.00(25.4) | 1.00(25.4) | 0.50(12.7) | 0.78(19.8) | 1.12(28.4) |
SS-TTF-FL12-NS12 |
3/4 | 3/4 | 1.76(44.7) | 0.96(24.4) | 1.13(28.6) | 1.37(34.9) | 0.62(15.7) | 0.81(20.6) | 1.25(31.8) |
SS-TTF-FL14-NS12 |
7/8 | 3/4 | 1.76(44.7) | 1.02(25.9) | 1.25(31.8) | 1.37(34.9) | 0.72(18.3) | 0.81(20.6) | 1.25(31.8) |
SS-TTF-FL16-NS12 |
1 | 3/4 | 1.93(49.0) | 1.23(31.2) | 1.50(38.1) | 1.37(34.9) | 0.88(22.4) | 0.81(20.6) | 1.25(31.8) |
SS-TTF-FL2-NS2 |
1/8 | 1/8 | 0.97(24.6) | 0.50(12.7) | 0.44(11.1) | 0.50(12.7) | 0.09(2.3) | 0.41(10.4) | 0.75(19.1) |
SS-TTF-FL3-NS2 |
3/16 | 1/8 | 1.01(25.7) | 0.54(13.7) | 0.50(12.7) | 0.50(12.7) | 0.12(3.0) | 0.41(10.4) | 0.75(19.1) |
SS-TTF-FL4-NS2 |
1/4 | 1/8 | 1.06(26.9) | 0.60(15.2) | 0.56(14.3) | 0.50(12.7) | 0.19(4.8) | 0.41(10.4) | 0.75(19.1) |
SS-TTF-FL4-NS4 |
1/4 | 1/4 | 1.17(29.7) | 0.60(15.2) | 0.56(14.3) | 0.69(17.5) | 0.19(4.8) | 0.59(15.0) | 0.88(22.4) |
SS-TTF-FL5-NS2 |
5/16 | 1/8 | 1.17(29.7) | 0.64(16.2) | 0.63(15.9) | 0.63(15.9) | 0.25(6.4) | 0.41(10.4) | 0.75(19.1) |
SS-TTF-FL6-NS4 |
3/8 | 1/4 | 1.23(31.2) | 0.66(16.8) | 0.69(17.5) | 0.69(17.5) | 0.28(7.1) | 0.59(15.0) | 0.88(22.4) |
SS-TTF-FL6-NS6 |
3/8 | 3/8 | 1.31(33.3) | 0.66(16.8) | 0.69(17.5) | 0.81(20.6) | 0.28(7.1) | 0.59(15.0) | 0.88(22.4) |
SS-TTF-FL6-NS8 |
3/8 | 1/2 | 1.42(36.1) | 0.66(16.8) | 0.69(17.5) | 1.00(25.4) | 0.28(7.1) | 0.78(19.8) | 1.12(28.4) |
SS-TTF-FL8-NS4 |
1/2 | 1/4 | 1.42(36.1) | 0.90(22.9) | 0.87(22.2) | 0.81(20.6) | 0.41(10.4) | 0.59(15.0) | 0.88(22.4) |
SS-TTF-FL8-NS6 |
1/2 | 3/8 | 1.42(36.1) | 0.90(22.9) | 0.87(22.2) | 0.81(20.6) | 0.41(10.4) | 0.59(15.0) | 0.88(22.4) |
SS-TTF-FL8-NS8 |
1/2 | 1/2 | 1.53(38.9) | 0.90(22.9) | 0.87(22.2) | 1.00(25.4) | 0.41(10.4) | 0.78(19.8) | 1.12(28.4) |
Additional Details
Instrumentation tube fitting for high-pressure, leak-tight, vibration-resistant connections in process, analytical, and instrumentation piping systems. Interchangeable in form, fit and function with other major compression tube fitting brands.
