FITOK Reducing Union Tees (Fractional Tube)
SKU:
SS-TTT-FL14-FL14-FL6
Brand: FITOK
Category: Fittings and Accessories › Instrumentation Tube Fittings › Tees
Tags: Fitok, Pipe Tee, Pipe Fitting
FITOK Reducing Union Tees — 316/316L stainless steel compression double-ferrule tube fittings (Fractional Tube), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published ...
Contact us for pricing
This product requires a custom quote
In Stock
Port 1 Size
Port 2 Size
Port 3 Size
Quantity
Description
FITOK Reducing Union Tees — 316/316L stainless steel compression double-ferrule tube fittings (Fractional Tube), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
Available Variants & Specifications
| Ordering No. | Port 1 Size | Port 2 Size | Port 3 Size | L1 | L2 | L3 | C1 | C2 | C3 | F (Body Hex) | E (Min Orifice) |
|---|---|---|---|---|---|---|---|---|---|---|---|
SS-TTT-FL10-FL10-FL6 |
5/8 | 5/8 | 3/8 | 1.53(38.9) | 1.53(38.9) | 1.42(36.1) | 0.96(24.4) | 0.96(24.4) | 0.66(16.8) | 1.00(25.4) | 0.28(7.1) |
SS-TTT-FL10-FL10-FL8 |
5/8 | 5/8 | 1/2 | 1.53(38.9) | 1.53(38.9) | 1.53(38.9) | 0.96(24.4) | 0.96(24.4) | 0.90(22.9) | 1.00(25.4) | 0.41(10.4) |
SS-TTT-FL10-FL6-FL6 |
5/8 | 3/8 | 3/8 | 1.53(38.9) | 1.42(36.1) | 1.42(36.1) | 0.96(24.4) | 0.66(16.8) | 0.66(16.8) | 1.00(25.4) | 0.28(7.1) |
SS-TTT-FL10-FL8-FL8 |
5/8 | 1/2 | 1/2 | 1.53(38.9) | 1.53(38.9) | 1.53(38.9) | 0.96(24.4) | 0.90(22.9) | 0.90(22.9) | 1.00(25.4) | 0.41(10.4) |
SS-TTT-FL12-FL10-FL10 |
3/4 | 5/8 | 5/8 | 1.56(39.6) | 1.56(39.6) | 1.56(39.6) | 0.96(24.4) | 0.96(24.4) | 0.96(24.4) | 1.06(27.0) | 0.50(12.7) |
SS-TTT-FL12-FL12-FL10 |
3/4 | 3/4 | 5/8 | 1.56(39.6) | 1.56(39.6) | 1.56(39.6) | 0.96(24.4) | 0.96(24.4) | 0.96(24.4) | 1.06(27.0) | 0.50(12.7) |
SS-TTT-FL12-FL12-FL4 |
3/4 | 3/4 | 1/4 | 1.56(39.6) | 1.56(39.6) | 1.43(36.3) | 0.96(24.4) | 0.96(24.4) | 0.60(15.2) | 1.06(27.0) | 0.19(4.8) |
SS-TTT-FL12-FL12-FL6 |
3/4 | 3/4 | 3/8 | 1.56(39.6) | 1.56(39.6) | 1.45(36.9) | 0.96(24.4) | 0.96(24.4) | 0.66(16.8) | 1.06(27.0) | 0.28(7.1) |
SS-TTT-FL12-FL12-FL8 |
3/4 | 3/4 | 1/2 | 1.56(39.6) | 1.56(39.6) | 1.56(39.6) | 0.96(24.4) | 0.96(24.4) | 0.90(22.9) | 1.06(27.0) | 0.41(10.4) |
SS-TTT-FL12-FL6-FL6 |
3/4 | 3/8 | 3/8 | 1.56(39.6) | 1.45(36.9) | 1.45(36.9) | 0.96(24.4) | 0.66(16.8) | 0.66(16.8) | 1.06(27.0) | 0.28(7.1) |
SS-TTT-FL12-FL8-FL8 |
3/4 | 1/2 | 1/2 | 1.56(39.6) | 1.56(39.6) | 1.56(39.6) | 0.96(24.4) | 0.90(22.9) | 0.90(22.9) | 1.06(27.0) | 0.41(10.4) |
SS-TTT-FL14-FL12-FL12 |
7/8 | 3/4 | 3/4 | 1.76(44.7) | 1.76(44.7) | 1.76(44.7) | 1.02(25.9) | 0.96(24.4) | 0.96(24.4) | 1.37(34.9) | 0.62(15.7) |
SS-TTT-FL14-FL14-FL4 |
7/8 | 7/8 | 1/4 | 1.76(44.7) | 1.76(44.7) | 1.59(40.4) | 1.02(25.9) | 1.02(25.9) | 0.60(15.2) | 1.37(34.9) | 0.19(4.8) |
SS-TTT-FL14-FL14-FL6 |
7/8 | 7/8 | 3/8 | 1.76(44.7) | 1.76(44.7) | 1.65(41.9) | 1.02(25.9) | 1.02(25.9) | 0.66(16.8) | 1.37(34.9) | 0.28(7.1) |
SS-TTT-FL16-FL12-FL16 |
1 3/4 | 1 | - | 1.94(49.3) | 1.76(44.7) | 1.94(49.3) | 1.23(31.2) | 0.96(24.4) | 1.23(31.2) | 1.37(34.9) | 0.62(15.7) |
SS-TTT-FL16-FL14-FL14 |
1 7/8 | 7/8 | - | 1.94(49.3) | 1.76(44.7) | 1.76(44.7) | 1.23(31.2) | 1.02(25.9) | 1.02(25.9) | 1.37(34.9) | 0.72(18.3) |
SS-TTT-FL16-FL16-FL10 |
1 | 1 5/8 | - | 1.94(49.3) | 1.94(49.3) | 1.76(44.7) | 1.23(31.2) | 1.23(31.2) | 0.96(24.4) | 1.37(34.9) | 0.50(12.7) |
SS-TTT-FL16-FL16-FL12 |
1 | 1 3/4 | - | 1.94(49.3) | 1.94(49.3) | 1.76(44.7) | 1.23(31.2) | 1.23(31.2) | 0.96(24.4) | 1.37(34.9) | 0.62(15.7) |
SS-TTT-FL16-FL16-FL14 |
1 | 1 7/8 | - | 1.94(49.3) | 1.94(49.3) | 1.76(44.7) | 1.23(31.2) | 1.23(31.2) | 1.02(25.9) | 1.37(34.9) | 0.72(18.3) |
SS-TTT-FL16-FL16-FL4 |
1 | 1 1/4 | - | 1.94(49.3) | 1.94(49.3) | 1.59(40.4) | 1.23(31.2) | 1.23(31.2) | 0.60(15.2) | 1.37(34.9) | 0.19(4.8) |
SS-TTT-FL16-FL16-FL6 |
1 | 1 3/8 | - | 1.94(49.3) | 1.94(49.3) | 1.65(41.9) | 1.23(31.2) | 1.23(31.2) | 0.66(16.8) | 1.37(34.9) | 0.28(7.1) |
SS-TTT-FL16-FL16-FL8 |
1 | 1 1/2 | - | 1.94(49.3) | 1.94(49.3) | 1.76(44.7) | 1.23(31.2) | 1.23(31.2) | 0.90(22.9) | 1.37(34.9) | 0.41(10.4) |
SS-TTT-FL16-FL6-FL6 |
1 3/8 | 3/8 | - | 1.94(49.3) | 1.65(41.9) | 1.65(41.9) | 1.23(31.2) | 0.66(16.8) | 0.66(16.8) | 1.37(34.9) | 0.28(7.1) |
SS-TTT-FL16-FL8-FL16 |
1 1/2 | 1 | - | 1.94(49.3) | 1.76(44.7) | 1.94(49.3) | 1.23(31.2) | 0.90(22.9) | 1.23(31.2) | 1.37(34.9) | 0.41(10.4) |
SS-TTT-FL16-FL8-FL8 |
1 1/2 | 1/2 | - | 1.94(49.3) | 1.76(44.7) | 1.76(44.7) | 1.23(31.2) | 0.90(22.9) | 0.90(22.9) | 1.37(34.9) | 0.41(10.4) |
SS-TTT-FL20-FL20-FL16 |
1 1/4 | 1 1/4 | 1 | 2.67(67.8) | 2.67(67.8) | 2.17(55.1) | 1.62(41.2) | 1.62(41.2) | 1.23(31.3) | 1.69(42.9) | 0.88(22.4) |
SS-TTT-FL24-FL24-FL16 |
1 1/2 | 1 1/2 | 1 | 3.10(78.7) | 3.10(78.7) | 2.36(60.0) | 1.97(50.0) | 1.97(50.0) | 1.23(31.3) | 2.00(50.8) | 0.88(22.4) |
SS-TTT-FL4-FL4-FL2 |
1/4 | 1/4 | 1/8 | 1.05(26.7) | 1.05(26.7) | 0.96(24.4) | 0.60(15.2) | 0.60(15.2) | 0.50(12.7) | 0.50(12.7) | 0.09(2.3) |
SS-TTT-FL6-FL4-FL4 |
3/8 | 1/4 | 1/4 | 1.20(30.5) | 1.14(29.0) | 1.14(29.0) | 0.66(16.8) | 0.60(15.2) | 0.60(15.2) | 0.63(15.9) | 0.19(4.8) |
SS-TTT-FL6-FL4-FL6 |
3/8 | 1/4 | 3/8 | 1.20(30.5) | 1.14(29.0) | 1.20(30.5) | 0.66(16.8) | 0.60(15.2) | 0.66(16.8) | 0.63(15.9) | 0.19(4.8) |
SS-TTT-FL6-FL6-FL4 |
3/8 | 3/8 | 1/4 | 1.20(30.5) | 1.20(30.5) | 1.14(29.0) | 0.66(16.8) | 0.66(16.8) | 0.60(15.2) | 0.63(15.9) | 0.19(4.8) |
SS-TTT-FL8-FL4-FL4 |
1/2 | 1/4 | 1/4 | 1.42(36.1) | 1.22(30.9) | 1.22(30.9) | 0.90(22.9) | 0.60(15.2) | 0.60(15.2) | 0.81(20.6) | 0.19(4.8) |
SS-TTT-FL8-FL4-FL8 |
1/2 | 1/4 | 1/2 | 1.42(36.1) | 1.25(31.8) | 1.42(36.1) | 0.90(22.9) | 0.60(15.2) | 0.90(22.9) | 0.81(20.6) | 0.19(4.8) |
SS-TTT-FL8-FL6-FL6 |
1/2 | 3/8 | 3/8 | 1.42(36.1) | 1.31(33.3) | 1.31(33.3) | 0.90(22.9) | 0.66(16.8) | 0.66(16.8) | 0.81(20.6) | 0.28(7.1) |
SS-TTT-FL8-FL6-FL8 |
1/2 | 3/8 | 1/2 | 1.42(36.1) | 1.31(33.3) | 1.42(36.1) | 0.90(22.9) | 0.66(16.8) | 0.90(22.9) | 0.81(20.6) | 0.28(7.1) |
SS-TTT-FL8-FL8-FL4 |
1/2 | 1/2 | 1/4 | 1.42(36.1) | 1.42(36.1) | 1.25(31.8) | 0.90(22.9) | 0.90(22.9) | 0.60(15.2) | 0.81(20.6) | 0.19(4.8) |
SS-TTT-FL8-FL8-FL6 |
1/2 | 1/2 | 3/8 | 1.42(36.1) | 1.42(36.1) | 1.31(33.3) | 0.90(22.9) | 0.90(22.9) | 0.66(16.8) | 0.81(20.6) | 0.28(7.1) |
Additional Details
Instrumentation tube fitting for high-pressure, leak-tight, vibration-resistant connections in process, analytical, and instrumentation piping systems. Interchangeable in form, fit and function with other major compression tube fitting brands.
Additional Information
Length
6 cm
Width
4 cm
Height
4 cm
Weight
0.1 kg

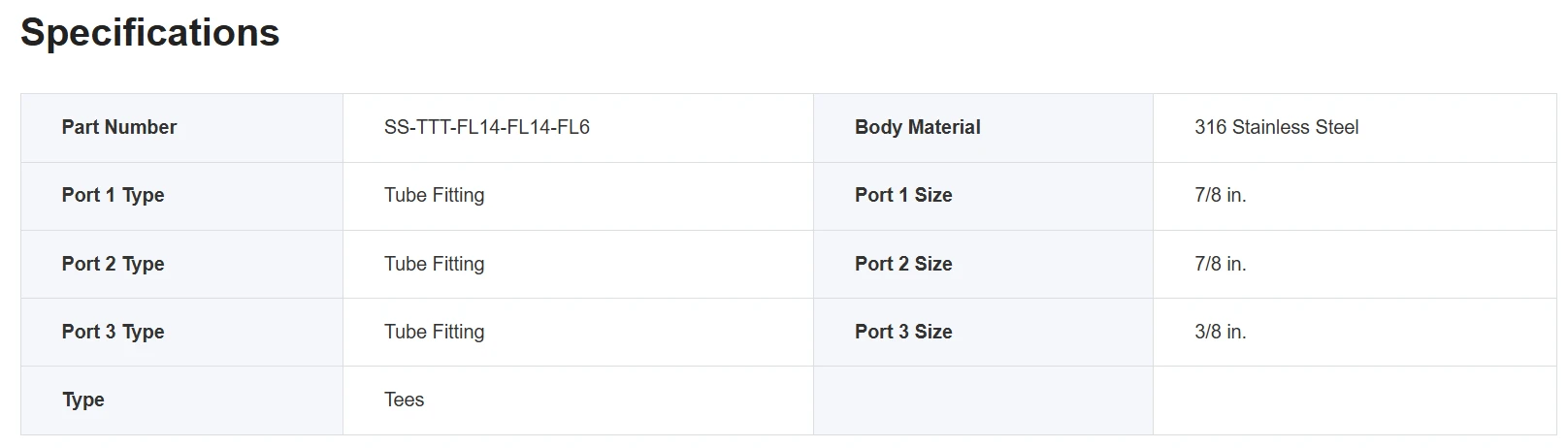

Specifications
General
Material
316/316L Stainless Steel (Ni content >= 28.5%)
Connection Style
Compression, double-ferrule tube fitting (FITOK 6D Series)
Standard / Certification
Tested to ASTM F1387; dimensionally interchangeable with other major compression tube fitting brands
Pressure Rating
Rated to the maximum working pressure of the mating FITOK tubing (fitting is not the pressure-limiting component)
Tube Type
Fractional Tube
Technical Specifications
Max working pressure
6000 psig psig
Operating temperature
-28 to +204 °C °C
