FITOK Positionable Male Run Tees (ISO Parallel (PP), Metric Tube)
SKU:
Brand: FITOK
Category: Fittings and Accessories › Instrumentation Tube Fittings › Tees
Tags: Fitok, Pipe Tee, Pipe Fitting
FITOK Positionable Male Run Tees — 316/316L stainless steel compression double-ferrule tube fittings (Metric Tube, ISO Parallel Thread (PP)), FITOK 6D Series. Ordering numbers shown are FITOK's par...
Contact us for pricing
This product requires a custom quote
Port 1 Size
Port 2 Size
Quantity
Description
FITOK Positionable Male Run Tees — 316/316L stainless steel compression double-ferrule tube fittings (Metric Tube, ISO Parallel Thread (PP)), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
Available Variants & Specifications
| Ordering No. | Port 1 Size | Port 2 Size | L (Length) | B (Thread) | C (Depth) | E (Min Orifice) | G (Nut Hex) | F (Body Hex) | Lx | Gx |
|---|---|---|---|---|---|---|---|---|---|---|
SS-TPT-ML10-PP4 |
10 | 1/4 | 33.5(1.32) | 9.0(0.35) | 17.2(0.68) | 5.9(0.23) | 19.0(0.75) | 20.6(0.81) | 35.1(1.38) | 19.1(0.75) |
SS-TPT-ML12-PP6 |
12 | 3/8 | 36.0(1.42) | 9.4(0.37) | 22.8(0.90) | 7.9(0.31) | 22.0(0.87) | 20.6(0.81) | 37.1(1.46) | 22.2(0.87) |
SS-TPT-ML12-PP8 |
12 | 1/2 | 38.0(1.50) | 13.0(0.51) | 22.8(0.90) | 9.5(0.37) | 22.0(0.87) | 23.8(0.94) | 43.5(1.71) | 27.0(1.06) |
SS-TPT-ML6-PP2 |
6 | 1/8 | 27.0(1.06) | 6.6(0.26) | 15.3(0.60) | 4.0(0.16) | 14.0(0.55) | 12.7(0.50) | 26.4(1.04) | 14.3(0.56) |
SS-TPT-ML6-PP4 |
6 | 1/4 | 29.0(1.14) | 9.0(0.35) | 15.3(0.60) | 4.8(0.19) | 14.0(0.55) | 15.9(0.63) | 32.2(1.27) | 19.1(0.75) |
SS-TPT-ML8-PP2 |
8 | 1/8 | 28.8(1.13) | 6.6(0.26) | 16.2(0.64) | 4.0(0.16) | 16.0(0.63) | 14.3(0.56) | 27.5(1.08) | 14.3(0.56) |
SS-TPT-ML8-PP4 |
8 | 1/4 | 29.9(1.18) | 9.0(0.35) | 16.2(0.64) | 5.9(0.23) | 16.0(0.63) | 15.9(0.63) | 32.2(1.27) | 19.1(0.75) |
Additional Details
Instrumentation tube fitting for high-pressure, leak-tight, vibration-resistant connections in process, analytical, and instrumentation piping systems. Interchangeable in form, fit and function with other major compression tube fitting brands.
Additional Information
Length
6 cm
Width
4 cm
Height
4 cm
Weight
0.1 kg

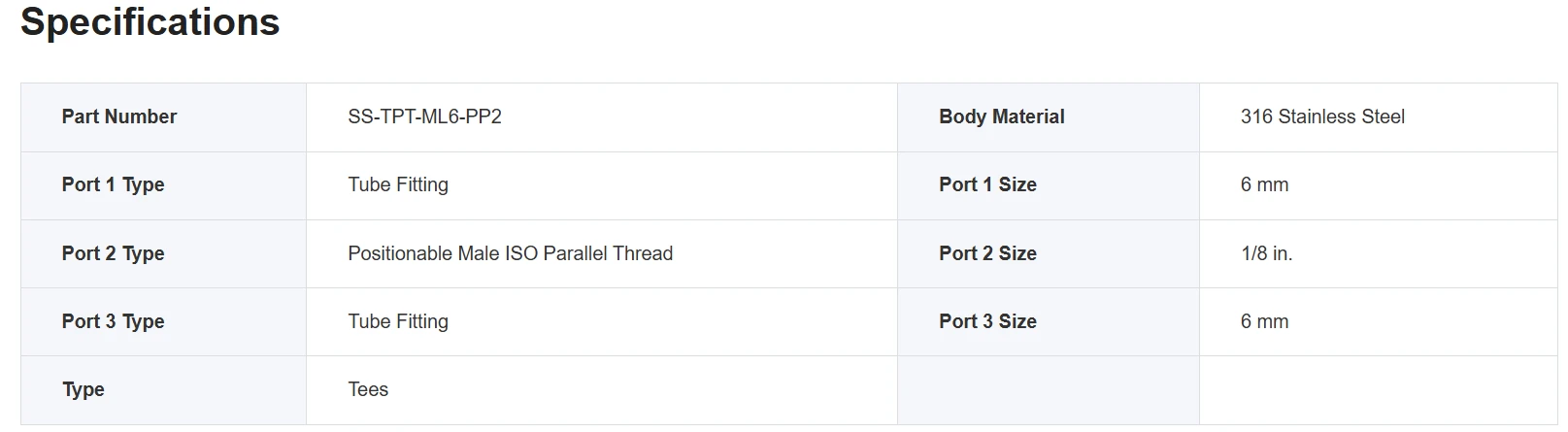

Specifications
Material
316/316L Stainless Steel (Ni content >= 28.5%)
Connection Style
Compression, double-ferrule tube fitting (FITOK 6D Series)
Standard / Certification
Tested to ASTM F1387; dimensionally interchangeable with other major compression tube fitting brands
Pressure Rating
Rated to the maximum working pressure of the mating FITOK tubing (fitting is not the pressure-limiting component)
Thread Type
ISO Parallel Thread (PP)
Tube Type
Metric Tube
Max working pressure
6000 psig psig
Operating temperature
-28 to +204 °C °C
FITOK Positionable Male Run Tees — 316/316L stainless steel compression double-ferrule tube fittings (Metric Tube, ISO Parallel Thread (PP)), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
Available Variants & Specifications
| Ordering No. | Port 1 Size | Port 2 Size | L (Length) | B (Thread) | C (Depth) | E (Min Orifice) | G (Nut Hex) | F (Body Hex) | Lx | Gx |
|---|---|---|---|---|---|---|---|---|---|---|
SS-TPT-ML10-PP4 |
10 | 1/4 | 33.5(1.32) | 9.0(0.35) | 17.2(0.68) | 5.9(0.23) | 19.0(0.75) | 20.6(0.81) | 35.1(1.38) | 19.1(0.75) |
SS-TPT-ML12-PP6 |
12 | 3/8 | 36.0(1.42) | 9.4(0.37) | 22.8(0.90) | 7.9(0.31) | 22.0(0.87) | 20.6(0.81) | 37.1(1.46) | 22.2(0.87) |
SS-TPT-ML12-PP8 |
12 | 1/2 | 38.0(1.50) | 13.0(0.51) | 22.8(0.90) | 9.5(0.37) | 22.0(0.87) | 23.8(0.94) | 43.5(1.71) | 27.0(1.06) |
SS-TPT-ML6-PP2 |
6 | 1/8 | 27.0(1.06) | 6.6(0.26) | 15.3(0.60) | 4.0(0.16) | 14.0(0.55) | 12.7(0.50) | 26.4(1.04) | 14.3(0.56) |
SS-TPT-ML6-PP4 |
6 | 1/4 | 29.0(1.14) | 9.0(0.35) | 15.3(0.60) | 4.8(0.19) | 14.0(0.55) | 15.9(0.63) | 32.2(1.27) | 19.1(0.75) |
SS-TPT-ML8-PP2 |
8 | 1/8 | 28.8(1.13) | 6.6(0.26) | 16.2(0.64) | 4.0(0.16) | 16.0(0.63) | 14.3(0.56) | 27.5(1.08) | 14.3(0.56) |
SS-TPT-ML8-PP4 |
8 | 1/4 | 29.9(1.18) | 9.0(0.35) | 16.2(0.64) | 5.9(0.23) | 16.0(0.63) | 15.9(0.63) | 32.2(1.27) | 19.1(0.75) |
Additional Details
Instrumentation tube fitting for high-pressure, leak-tight, vibration-resistant connections in process, analytical, and instrumentation piping systems. Interchangeable in form, fit and function with other major compression tube fitting brands.
