FITOK Female Run Tees (Metric Tube)
Share productSKU:
Click to copyFITOK Female Run Tees — 316/316L stainless steel compression double-ferrule tube fittings (Metric Tube), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK...
Contact us for pricing
This product requires a custom quote
In Stock
Port 1 Size
Port 2 Size
Quantity
Add to wishlist
Description
FITOK Female Run Tees — 316/316L stainless steel compression double-ferrule tube fittings (Metric Tube), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
Available Variants & Specifications
| Ordering No. | Port 1 Size | Port 2 Size | L (Length) | C (Depth) | G (Nut Hex) | F (Body Hex) | E (Min Orifice) | B (Thread) | Lx |
|---|---|---|---|---|---|---|---|---|---|
SS-TFT-ML10-NS4 |
10 | 1/4 | 33.5(1.32) | 17.2(0.68) | 19.0(0.75) | 20.6(0.81) | 7.9(0.31) | 15.0(0.59) | 22.4(0.88) |
SS-TFT-ML12-NS4 |
12 | 1/4 | 36.0(1.42) | 22.8(0.90) | 22.0(0.87) | 20.6(0.81) | 9.5(0.37) | 15.0(0.59) | 22.4(0.88) |
SS-TFT-ML12-NS6 |
12 | 3/8 | 36.0(1.42) | 22.8(0.90) | 22.0(0.87) | 20.6(0.81) | 9.5(0.37) | 15.0(0.59) | 23.1(0.91) |
SS-TFT-ML12-NS8 |
12 | 1/2 | 38.8(1.53) | 22.8(0.90) | 22.0(0.87) | 25.4(1.00) | 9.5(0.37) | 19.8(0.78) | 28.5(1.12) |
SS-TFT-ML16-NS8 |
16 | 1/2 | 39.8(1.57) | 24.4(0.96) | 25.0(0.98) | 27.0(1.06) | 12.7(0.50) | 19.8(0.78) | 28.4(1.12) |
SS-TFT-ML6-NS2 |
6 | 1/8 | 27.0(1.06) | 15.3(0.60) | 14.0(0.55) | 12.7(0.50) | 4.8(0.19) | 10.4(0.41) | 19.0(0.75) |
SS-TFT-ML6-NS4 |
6 | 1/4 | 29.8(1.17) | 15.3(0.60) | 14.0(0.55) | 17.5(0.69) | 4.8(0.19) | 15.0(0.59) | 22.4(0.88) |
SS-TFT-ML8-NS2 |
8 | 1/8 | 29.9(1.18) | 16.2(0.64) | 16.0(0.63) | 15.9(0.63) | 6.4(0.25) | 10.4(0.41) | 19.0(0.75) |
SS-TFT-ML8-NS4 |
8 | 1/4 | 30.6(1.20) | 16.2(0.64) | 16.0(0.63) | 17.5(0.69) | 6.4(0.25) | 15.0(0.59) | 22.4(0.88) |
Additional Details
Instrumentation tube fitting for high-pressure, leak-tight, vibration-resistant connections in process, analytical, and instrumentation piping systems. Interchangeable in form, fit and function with other major compression tube fitting brands.
Additional Information
Length
6 cm
Width
4 cm
Height
4 cm
Weight
0.1 kg

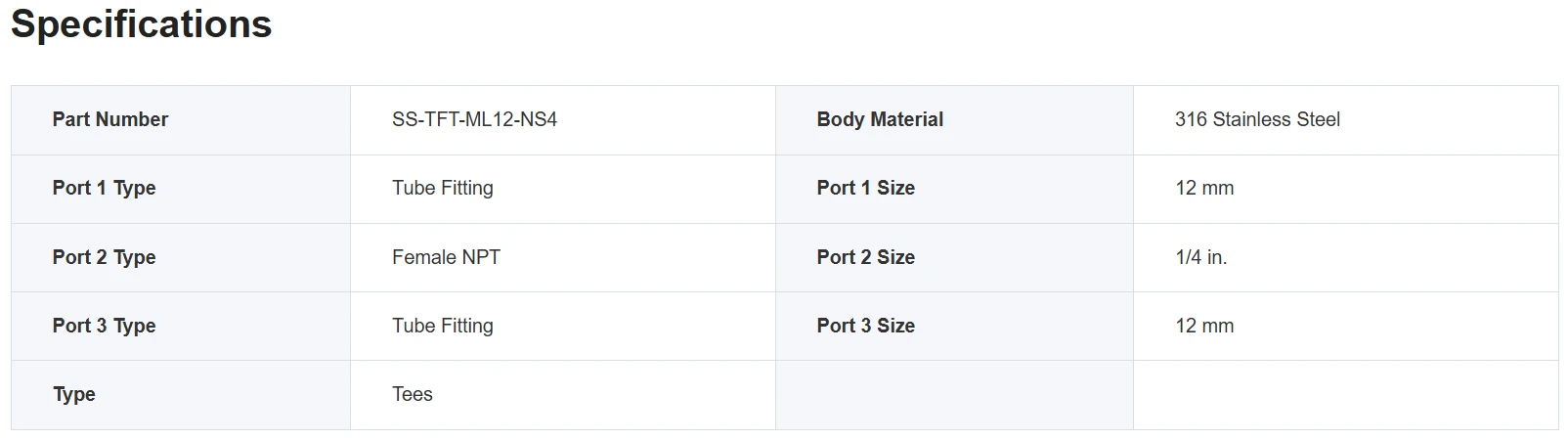

Specifications
General
Material
316/316L Stainless Steel (Ni content >= 28.5%)
Connection Style
Compression, double-ferrule tube fitting (FITOK 6D Series)
Standard / Certification
Tested to ASTM F1387; dimensionally interchangeable with other major compression tube fitting brands
Pressure Rating
Rated to the maximum working pressure of the mating FITOK tubing (fitting is not the pressure-limiting component)
Thread Type
NPT Thread
Tube Type
Metric Tube
Technical Specifications
Max working pressure
6000 psig psig
Operating temperature
-28 to +204 °C °C
FITOK Female Run Tees — 316/316L stainless steel compression double-ferrule tube fittings (Metric Tube), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
Available Variants & Specifications
| Ordering No. | Port 1 Size | Port 2 Size | L (Length) | C (Depth) | G (Nut Hex) | F (Body Hex) | E (Min Orifice) | B (Thread) | Lx |
|---|---|---|---|---|---|---|---|---|---|
SS-TFT-ML10-NS4 |
10 | 1/4 | 33.5(1.32) | 17.2(0.68) | 19.0(0.75) | 20.6(0.81) | 7.9(0.31) | 15.0(0.59) | 22.4(0.88) |
SS-TFT-ML12-NS4 |
12 | 1/4 | 36.0(1.42) | 22.8(0.90) | 22.0(0.87) | 20.6(0.81) | 9.5(0.37) | 15.0(0.59) | 22.4(0.88) |
SS-TFT-ML12-NS6 |
12 | 3/8 | 36.0(1.42) | 22.8(0.90) | 22.0(0.87) | 20.6(0.81) | 9.5(0.37) | 15.0(0.59) | 23.1(0.91) |
SS-TFT-ML12-NS8 |
12 | 1/2 | 38.8(1.53) | 22.8(0.90) | 22.0(0.87) | 25.4(1.00) | 9.5(0.37) | 19.8(0.78) | 28.5(1.12) |
SS-TFT-ML16-NS8 |
16 | 1/2 | 39.8(1.57) | 24.4(0.96) | 25.0(0.98) | 27.0(1.06) | 12.7(0.50) | 19.8(0.78) | 28.4(1.12) |
SS-TFT-ML6-NS2 |
6 | 1/8 | 27.0(1.06) | 15.3(0.60) | 14.0(0.55) | 12.7(0.50) | 4.8(0.19) | 10.4(0.41) | 19.0(0.75) |
SS-TFT-ML6-NS4 |
6 | 1/4 | 29.8(1.17) | 15.3(0.60) | 14.0(0.55) | 17.5(0.69) | 4.8(0.19) | 15.0(0.59) | 22.4(0.88) |
SS-TFT-ML8-NS2 |
8 | 1/8 | 29.9(1.18) | 16.2(0.64) | 16.0(0.63) | 15.9(0.63) | 6.4(0.25) | 10.4(0.41) | 19.0(0.75) |
SS-TFT-ML8-NS4 |
8 | 1/4 | 30.6(1.20) | 16.2(0.64) | 16.0(0.63) | 17.5(0.69) | 6.4(0.25) | 15.0(0.59) | 22.4(0.88) |
Additional Details
Instrumentation tube fitting for high-pressure, leak-tight, vibration-resistant connections in process, analytical, and instrumentation piping systems. Interchangeable in form, fit and function with other major compression tube fitting brands.
