FITOK Positionable Male Run Tees (ISO Parallel (PP), Fractional Tube)
SKU:
Brand: FITOK
Category: Fittings and Accessories › Instrumentation Tube Fittings › Tees
Tags: Fitok, Pipe Tee, Pipe Fitting
FITOK Positionable Male Run Tees — 316/316L stainless steel compression double-ferrule tube fittings (Fractional Tube, ISO Parallel Thread (PP)), FITOK 6D Series. Ordering numbers shown are FITOK's...
Contact us for pricing
This product requires a custom quote
Port 1 Size
Port 2 Size
Quantity
Description
FITOK Positionable Male Run Tees — 316/316L stainless steel compression double-ferrule tube fittings (Fractional Tube, ISO Parallel Thread (PP)), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
Available Variants & Specifications
| Ordering No. | Port 1 Size | Port 2 Size | L (Length) | B (Thread) | C (Depth) | E (Min Orifice) | G (Nut Hex) | F (Body Hex) | Lx | Gx |
|---|---|---|---|---|---|---|---|---|---|---|
SS-TPT-FL10-PP8 |
5/8 | 1/2 | 1.50(38.1) | 0.51(13.0) | 0.96(24.4) | 0.47(11.9) | 1.00(25.4) | 0.94(23.8) | 1.71(43.4) | 1.06(27.0) |
SS-TPT-FL12-PP12 |
3/4 | 3/4 | 1.57(39.9) | 0.51(13.0) | 0.96(24.4) | 0.62(15.7) | 1.13(28.6) | 1.06(27.0) | 1.92(48.8) | 1.37(34.9) |
SS-TPT-FL12-PP8 |
3/4 | 1/2 | 1.57(39.9) | 0.51(13.0) | 0.96(24.4) | 0.47(11.9) | 1.13(28.6) | 1.06(27.0) | 1.78(45.2) | 1.06(27.0) |
SS-TPT-FL16-PP16 |
1 | 1 | 1.93(49.0) | 0.52(13.2) | 1.23(31.2) | 0.78(19.8) | 1.50(38.1) | 1.37(34.9) | 2.11(53.6) | 1.63(41.3) |
SS-TPT-FL4-PP2 |
1/4 | 1/8 | 1.06(26.9) | 0.26(6.6) | 0.60(15.2) | 0.16(4.1) | 0.56(14.3) | 0.50(12.7) | 1.04(26.4) | 0.56(14.3) |
SS-TPT-FL4-PP4 |
1/4 | 1/4 | 1.14(29.0) | 0.35(9.0) | 0.60(15.2) | 0.19(4.8) | 0.56(14.3) | 0.63(15.9) | 1.27(32.3) | 0.75(19.1) |
SS-TPT-FL6-PP4 |
3/8 | 1/4 | 1.20(30.5) | 0.35(9.0) | 0.66(16.8) | 0.23(5.8) | 0.69(17.5) | 0.63(15.9) | 1.27(32.3) | 0.75(19.1) |
SS-TPT-FL8-PP6 |
1/2 | 3/8 | 1.42(36.1) | 0.37(9.4) | 0.90(22.9) | 0.31(7.9) | 0.87(22.2) | 0.81(20.6) | 1.46(37.1) | 0.87(22.2) |
SS-TPT-FL8-PP8 |
1/2 | 1/2 | 1.50(38.1) | 0.51(13.0) | 0.90(22.9) | 0.41(10.4) | 0.87(22.2) | 0.94(23.8) | 1.71(43.4) | 1.06(27.0) |
Additional Details
Instrumentation tube fitting for high-pressure, leak-tight, vibration-resistant connections in process, analytical, and instrumentation piping systems. Interchangeable in form, fit and function with other major compression tube fitting brands.
Additional Information
Length
6 cm
Width
4 cm
Height
4 cm
Weight
0.1 kg

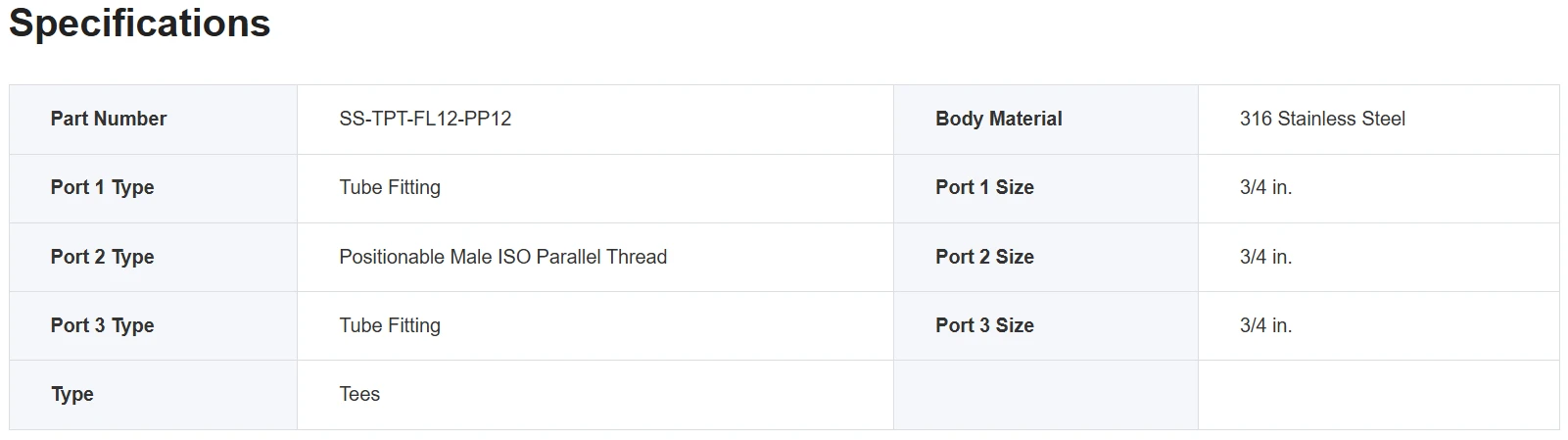

Specifications
Material
316/316L Stainless Steel (Ni content >= 28.5%)
Connection Style
Compression, double-ferrule tube fitting (FITOK 6D Series)
Standard / Certification
Tested to ASTM F1387; dimensionally interchangeable with other major compression tube fitting brands
Pressure Rating
Rated to the maximum working pressure of the mating FITOK tubing (fitting is not the pressure-limiting component)
Thread Type
ISO Parallel Thread (PP)
Tube Type
Fractional Tube
Max working pressure
6000 psig psig
Operating temperature
-28 to +204 °C °C
FITOK Positionable Male Run Tees — 316/316L stainless steel compression double-ferrule tube fittings (Fractional Tube, ISO Parallel Thread (PP)), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
Available Variants & Specifications
| Ordering No. | Port 1 Size | Port 2 Size | L (Length) | B (Thread) | C (Depth) | E (Min Orifice) | G (Nut Hex) | F (Body Hex) | Lx | Gx |
|---|---|---|---|---|---|---|---|---|---|---|
SS-TPT-FL10-PP8 |
5/8 | 1/2 | 1.50(38.1) | 0.51(13.0) | 0.96(24.4) | 0.47(11.9) | 1.00(25.4) | 0.94(23.8) | 1.71(43.4) | 1.06(27.0) |
SS-TPT-FL12-PP12 |
3/4 | 3/4 | 1.57(39.9) | 0.51(13.0) | 0.96(24.4) | 0.62(15.7) | 1.13(28.6) | 1.06(27.0) | 1.92(48.8) | 1.37(34.9) |
SS-TPT-FL12-PP8 |
3/4 | 1/2 | 1.57(39.9) | 0.51(13.0) | 0.96(24.4) | 0.47(11.9) | 1.13(28.6) | 1.06(27.0) | 1.78(45.2) | 1.06(27.0) |
SS-TPT-FL16-PP16 |
1 | 1 | 1.93(49.0) | 0.52(13.2) | 1.23(31.2) | 0.78(19.8) | 1.50(38.1) | 1.37(34.9) | 2.11(53.6) | 1.63(41.3) |
SS-TPT-FL4-PP2 |
1/4 | 1/8 | 1.06(26.9) | 0.26(6.6) | 0.60(15.2) | 0.16(4.1) | 0.56(14.3) | 0.50(12.7) | 1.04(26.4) | 0.56(14.3) |
SS-TPT-FL4-PP4 |
1/4 | 1/4 | 1.14(29.0) | 0.35(9.0) | 0.60(15.2) | 0.19(4.8) | 0.56(14.3) | 0.63(15.9) | 1.27(32.3) | 0.75(19.1) |
SS-TPT-FL6-PP4 |
3/8 | 1/4 | 1.20(30.5) | 0.35(9.0) | 0.66(16.8) | 0.23(5.8) | 0.69(17.5) | 0.63(15.9) | 1.27(32.3) | 0.75(19.1) |
SS-TPT-FL8-PP6 |
1/2 | 3/8 | 1.42(36.1) | 0.37(9.4) | 0.90(22.9) | 0.31(7.9) | 0.87(22.2) | 0.81(20.6) | 1.46(37.1) | 0.87(22.2) |
SS-TPT-FL8-PP8 |
1/2 | 1/2 | 1.50(38.1) | 0.51(13.0) | 0.90(22.9) | 0.41(10.4) | 0.87(22.2) | 0.94(23.8) | 1.71(43.4) | 1.06(27.0) |
Additional Details
Instrumentation tube fitting for high-pressure, leak-tight, vibration-resistant connections in process, analytical, and instrumentation piping systems. Interchangeable in form, fit and function with other major compression tube fitting brands.
