FITOK Reducing Union Tees (Metric Tube)
Share productSKU:
Click to copyFITOK Reducing Union Tees — 316/316L stainless steel compression double-ferrule tube fittings (Metric Tube), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in F...
Contact us for pricing
This product requires a custom quote
In Stock
Port 1 Size
Port 2 Size
Port 3 Size
Quantity
Add to wishlist
Description
FITOK Reducing Union Tees — 316/316L stainless steel compression double-ferrule tube fittings (Metric Tube), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
Available Variants & Specifications
| Ordering No. | Port 1 Size | Port 2 Size | Port 3 Size | L1 | L2 | L3 | C1 | C2 | C3 | F (Body Hex) | E (Min Orifice) |
|---|---|---|---|---|---|---|---|---|---|---|---|
SS-TTT-ML10-ML10-ML6 |
10 | 10 | 6 | 31.5(1.24) | 31.5(1.24) | 29.9(1.18) | 17.2(0.68) | 17.2(0.68) | 15.3(0.60) | 17.5(0.69) | 4.8(0.19) |
SS-TTT-ML10-ML10-ML8 |
10 | 10 | 8 | 31.5(1.24) | 31.5(1.24) | 30.7(1.21) | 17.2(0.68) | 17.2(0.68) | 16.2(0.64) | 17.5(0.69) | 6.4(0.25) |
SS-TTT-ML12-ML12-ML14 |
12 | 12 | 14 | 38.0(1.50) | 38.0(1.50) | 38.0(1.50) | 22.8(0.90) | 22.8(0.90) | 24.4(0.96) | 25.4(1.00) | 9.5(0.37) |
SS-TTT-ML12-ML12-ML18 |
12 | 12 | 18 | 39.8(1.57) | 39.8(1.57) | 39.8(1.57) | 22.8(0.90) | 22.8(0.90) | 24.4(0.96) | 27.0(1.06) | 9.5(0.37) |
SS-TTT-ML12-ML12-ML6 |
12 | 12 | 6 | 36.0(1.42) | 36.0(1.42) | 31.8(1.25) | 22.8(0.90) | 22.8(0.90) | 15.3(0.60) | 20.6(0.81) | 4.8(0.19) |
SS-TTT-ML12-ML12-ML8 |
12 | 12 | 8 | 36.0(1.42) | 36.0(1.42) | 32.0(1.26) | 22.8(0.90) | 22.8(0.90) | 16.2(0.64) | 20.6(0.81) | 6.4(0.25) |
SS-TTT-ML14-ML14-ML10 |
14 | 14 | 10 | 38.0(1.50) | 38.0(1.50) | 36.7(1.44) | 24.4(0.96) | 24.4(0.96) | 17.2(0.68) | 25.4(1.00) | 7.9(0.31) |
SS-TTT-ML14-ML14-ML8 |
14 | 14 | 8 | 38.0(1.50) | 38.0(1.50) | 35.5(1.40) | 24.4(0.96) | 24.4(0.96) | 16.2(0.64) | 25.4(1.00) | 6.4(0.25) |
SS-TTT-ML15-ML15-ML12 |
15 | 15 | 12 | 38.8(1.53) | 38.8(1.53) | 38.8(1.53) | 24.4(0.96) | 24.4(0.96) | 22.8(0.90) | 25.4(1.00) | 9.5(0.37) |
SS-TTT-ML16-ML16-ML12 |
16 | 16 | 12 | 38.8(1.53) | 38.8(1.53) | 38.9(1.53) | 24.4(0.96) | 24.4(0.96) | 22.8(0.90) | 25.4(1.00) | 9.5(0.37) |
SS-TTT-ML16-ML8-ML16 |
16 | 8 | 16 | 38.8(1.53) | 35.5(1.40) | 38.8(1.53) | 24.4(0.96) | 16.2(0.64) | 24.4(0.96) | 25.4(1.00) | 6.4(0.25) |
SS-TTT-ML18-ML18-ML10 |
18 | 18 | 10 | 39.8(1.57) | 39.8(1.57) | 37.4(1.47) | 24.4(0.96) | 24.4(0.96) | 17.2(0.68) | 27.0(1.06) | 7.9(0.31) |
SS-TTT-ML18-ML18-ML12 |
18 | 18 | 12 | 39.8(1.57) | 39.8(1.57) | 39.8(1.57) | 24.4(0.96) | 24.4(0.96) | 22.8(0.90) | 27.0(1.06) | 9.5(0.37) |
SS-TTT-ML18-ML18-ML14 |
18 | 18 | 14 | 39.8(1.57) | 39.8(1.57) | 39.8(1.57) | 24.4(0.96) | 24.4(0.96) | 24.4(0.96) | 27.0(1.06) | 11.1(0.44) |
SS-TTT-ML18-ML18-ML8 |
18 | 18 | 8 | 39.8(1.57) | 39.8(1.57) | 39.0(1.54) | 24.4(0.96) | 24.4(0.96) | 16.2(0.64) | 27.0(1.06) | 6.4(0.25) |
SS-TTT-ML20-ML20-ML14 |
20 | 20 | 14 | 44.6(1.76) | 44.6(1.76) | 44.6(1.76) | 26.0(1.02) | 26.0(1.02) | 24.4(0.96) | 34.9(1.37) | 11.1(0.44) |
SS-TTT-ML22-ML22-ML12 |
22 | 22 | 12 | 44.6(1.76) | 44.6(1.76) | 44.6(1.76) | 26.0(1.02) | 26.0(1.02) | 22.8(0.90) | 34.9(1.37) | 9.5(0.37) |
SS-TTT-ML25-ML25-ML12 |
25 | 25 | 12 | 49.1(1.93) | 49.1(1.93) | 44.7(1.76) | 31.3(1.23) | 31.3(1.23) | 22.8(0.90) | 34.9(1.37) | 9.5(0.37) |
SS-TTT-ML3-ML3-ML6 |
3 | 3 | 6 | 24.7(0.97) | 24.7(0.97) | 27.0(1.06) | 12.9(0.51) | 12.9(0.51) | 15.3(0.60) | 12.7(0.50) | 2.4(0.09) |
SS-TTT-ML6-ML6-ML3 |
6 | 6 | 3 | 27.0(1.06) | 27.0(1.06) | 24.7(0.97) | 15.3(0.60) | 15.3(0.60) | 12.9(0.51) | 12.7(0.50) | 2.4(0.09) |
SS-TTT-ML6-ML6-ML8 |
6 | 6 | 8 | 28.0(1.10) | 28.0(1.10) | 28.8(1.13) | 15.3(0.60) | 15.3(0.60) | 16.2(0.64) | 14.3(0.56) | 4.8(0.19) |
SS-TTT-ML8-ML8-ML12 |
8 | 8 | 12 | 35.2(1.39) | 35.2(1.39) | 36.0(1.42) | 16.2(0.64) | 16.2(0.64) | 22.8(0.90) | 20.6(0.81) | 6.4(0.25) |
SS-TTT-ML8-ML8-ML6 |
8 | 8 | 6 | 30.0(1.18) | 30.0(1.18) | 29.0(1.14) | 16.2(0.64) | 16.2(0.64) | 15.3(0.60) | 15.9(0.63) | 4.8(0.19) |
Additional Details
Instrumentation tube fitting for high-pressure, leak-tight, vibration-resistant connections in process, analytical, and instrumentation piping systems. Interchangeable in form, fit and function with other major compression tube fitting brands.
Additional Information
Length
6 cm
Width
4 cm
Height
4 cm
Weight
0.1 kg

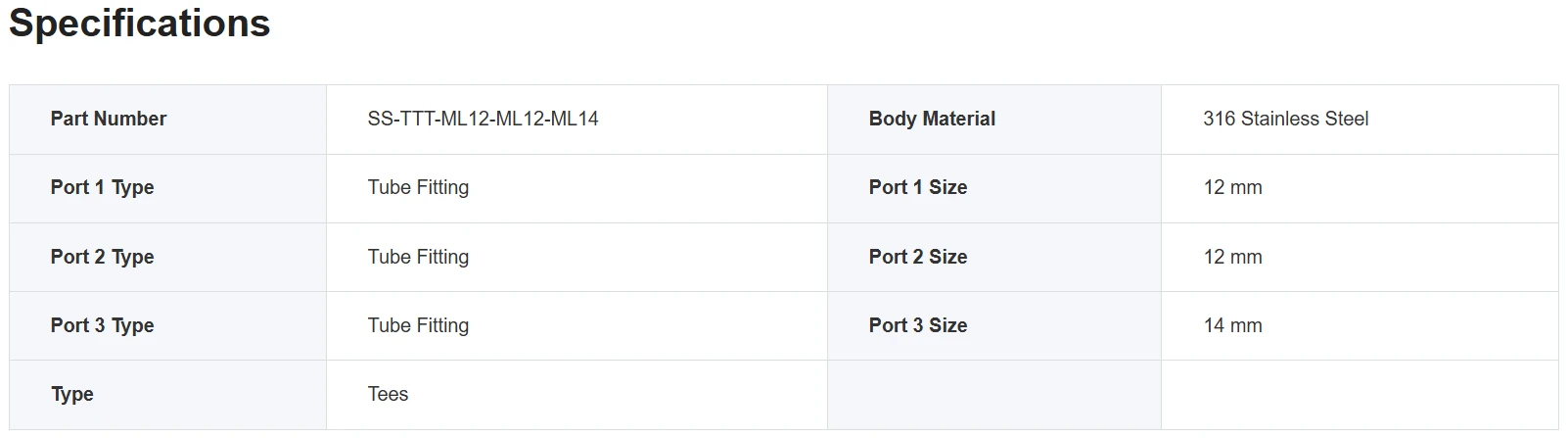

Specifications
General
Material
316/316L Stainless Steel (Ni content >= 28.5%)
Connection Style
Compression, double-ferrule tube fitting (FITOK 6D Series)
Standard / Certification
Tested to ASTM F1387; dimensionally interchangeable with other major compression tube fitting brands
Pressure Rating
Rated to the maximum working pressure of the mating FITOK tubing (fitting is not the pressure-limiting component)
Tube Type
Metric Tube
Technical Specifications
Max working pressure
6000 psig psig
Operating temperature
-28 to +204 °C °C
