FITOK Female Connectors (NPT, Metric Tube)
SKU:
Brand: FITOK
Category: Fittings and Accessories › Instrumentation Tube Fittings › Connectors
Tags: Fitok, Pipe Fitting, Connectors, Plumbing
FITOK Female Connectors — 316/316L stainless steel compression double-ferrule tube fittings (Metric Tube, NPT Thread), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as publ...
Contact us for pricing
This product requires a custom quote
Port 1 Size
Port 2 Size
Thread Standard
Quantity
Description
FITOK Female Connectors — 316/316L stainless steel compression double-ferrule tube fittings (Metric Tube, NPT Thread), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
Available Variants & Specifications
| Ordering No. | Port 1 Size | Port 2 Size | L (Length) | B (Thread) | C (Depth) | E (Min Orifice) | G (Nut Hex) | F (Body Hex) |
|---|---|---|---|---|---|---|---|---|
SS-CF-ML10-NS2 |
10 | 1/8 | 33.0(1.30) | 10.4(0.41) | 17.2(0.68) | 7.9(0.31) | 19.0(0.75) | 18.0(0.71) |
SS-CF-ML10-NS4 |
10 | 1/4 | 37.8(1.49) | 15.0(0.59) | 17.2(0.68) | 7.9(0.31) | 19.0(0.75) | 19.0(0.75) |
SS-CF-ML10-NS6 |
10 | 3/8 | 39.4(1.55) | 15.0(0.59) | 17.2(0.68) | 7.9(0.31) | 19.0(0.75) | 22.0(0.87) |
SS-CF-ML10-NS8 |
10 | 1/2 | 44.2(1.74) | 19.8(0.78) | 17.2(0.68) | 7.9(0.31) | 19.0(0.75) | 27.0(1.06) |
SS-CF-ML10-RT8 |
10 | 1/2 | 44.2(1.74) | 19.8(0.78) | 17.2(0.68) | 7.9(0.31) | 19.0(0.75) | 27.0(1.06) |
SS-CF-ML12-NS12 |
12 | 3/4 | 49.1(1.93) | 20.6(0.81) | 22.8(0.90) | 9.5(0.37) | 22.0(0.87) | 35.0(1.38) |
SS-CF-ML12-NS4 |
12 | 1/4 | 40.3(1.59) | 15.0(0.59) | 22.8(0.90) | 9.5(0.37) | 22.0(0.87) | 22.0(0.87) |
SS-CF-ML12-NS6 |
12 | 3/8 | 41.9(1.65) | 15.0(0.59) | 22.8(0.90) | 9.5(0.37) | 22.0(0.87) | 22.0(0.87) |
SS-CF-ML12-NS8 |
12 | 1/2 | 46.7(1.84) | 19.8(0.78) | 22.8(0.90) | 9.5(0.37) | 22.0(0.87) | 27.0(1.06) |
SS-CF-ML12-RT12 |
12 | 3/4 | 49.0(1.93) | 20.6(0.81) | 22.8(0.90) | 9.5(0.37) | 22.0(0.87) | 35.0(1.38) |
SS-CF-ML12-RT2 |
12 | 1/8 | 35.5(1.40) | 10.4(0.41) | 22.8(0.90) | 8.3(0.33) | 22.0(0.87) | 22.0(0.87) |
SS-CF-ML12-RT4 |
12 | 1/4 | 40.3(1.59) | 15.0(0.59) | 22.8(0.90) | 9.5(0.37) | 22.0(0.87) | 22.0(0.87) |
SS-CF-ML12-RT6 |
12 | 3/8 | 41.9(1.65) | 15.0(0.59) | 22.8(0.90) | 9.5(0.37) | 22.0(0.87) | 22.0(0.87) |
SS-CF-ML12-RT8 |
12 | 1/2 | 46.7(1.84) | 19.8(0.78) | 22.8(0.90) | 9.5(0.37) | 22.0(0.87) | 27.0(1.06) |
SS-CF-ML14-NS12 |
14 | 3/4 | 49.7(1.96) | 20.6(0.81) | 24.4(0.96) | 11.1(0.44) | 25.0(0.98) | 35.0(1.38) |
SS-CF-ML15-NS8 |
15 | 1/2 | 46.7(1.84) | 19.8(0.78) | 24.4(0.96) | 11.9(0.47) | 25.0(0.98) | 27.0(1.06) |
SS-CF-ML15-RT8 |
15 | 1/2 | 46.7(1.84) | 19.8(0.78) | 24.4(0.96) | 11.9(0.47) | 25.0(0.98) | 27.0(1.06) |
SS-CF-ML16-NS6 |
16 | 3/8 | 41.9(1.65) | 15.0(0.59) | 24.4(0.96) | 12.7(0.50) | 25.0(0.98) | 27.0(1.06) |
SS-CF-ML16-NS8 |
16 | 1/2 | 46.9(1.85) | 19.8(0.78) | 24.4(0.96) | 12.7(0.50) | 25.0(0.98) | 27.0(1.06) |
SS-CF-ML16-RT12 |
16 | 3/4 | 49.7(1.96) | 20.6(0.81) | 24.4(0.96) | 12.7(0.50) | 25.0(0.98) | 35.0(1.38) |
SS-CF-ML16-RT8 |
16 | 1/2 | 48.4(1.91) | 19.8(0.78) | 24.4(0.96) | 12.7(0.50) | 25.0(0.98) | 27.0(1.06) |
SS-CF-ML20-NS12 |
20 | 3/4 | 49.7(1.96) | 20.6(0.81) | 26.0(1.02) | 15.9(0.63) | 32.0(1.26) | 35.0(1.38) |
SS-CF-ML20-NS8 |
20 | 1/2 | 47.9(1.89) | 19.8(0.78) | 26.0(1.02) | 15.9(0.63) | 32.0(1.26) | 30.0(1.18) |
SS-CF-ML20-RT12 |
20 | 3/4 | 49.7(1.96) | 20.6(0.81) | 26.0(1.02) | 15.9(0.63) | 32.0(1.26) | 35.0(1.38) |
SS-CF-ML20-RT8 |
20 | 1/2 | 47.9(1.89) | 19.8(0.78) | 26.0(1.02) | 15.9(0.63) | 32.0(1.26) | 30.0(1.18) |
SS-CF-ML22-NS12 |
22 | 3/4 | 49.7(1.96) | 20.6(0.81) | 26.0(1.02) | 18.3(0.72) | 32.0(1.26) | 35.0(1.38) |
SS-CF-ML22-NS16 |
22 | 1 | 57.9(2.28) | 25.4(1.00) | 26.0(1.02) | 18.3(0.72) | 32.0(1.26) | 41.0(1.61) |
SS-CF-ML22-RT12 |
22 | 3/4 | 49.7(1.96) | 20.6(0.81) | 26.0(1.02) | 18.3(0.72) | 32.0(1.26) | 35.0(1.38) |
SS-CF-ML22-RT16 |
22 | 1 | 57.9(2.28) | 25.4(1.00) | 26.0(1.02) | 18.3(0.72) | 32.0(1.26) | 41.0(1.61) |
SS-CF-ML25-NS12 |
25 | 3/4 | 53.4(2.10) | 20.6(0.81) | 31.3(1.23) | 21.8(0.86) | 38.0(1.50) | 35.0(1.38) |
SS-CF-ML25-NS16 |
25 | 1 | 62.3(2.45) | 25.4(1.00) | 31.3(1.23) | 21.8(0.86) | 38.0(1.50) | 41.0(1.61) |
SS-CF-ML25-RT12 |
25 | 3/4 | 53.4(2.10) | 20.6(0.81) | 31.3(1.23) | 21.8(0.86) | 38.0(1.50) | 35.0(1.38) |
SS-CF-ML25-RT16 |
25 | 1 | 62.3(2.45) | 25.4(1.00) | 31.3(1.23) | 21.8(0.86) | 38.0(1.50) | 41.0(1.61) |
SS-CF-ML3-NS2 |
3 | 1/8 | 28.7(1.13) | 10.4(0.41) | 12.9(0.51) | 2.4(0.09) | 12.0(0.47) | 14.0(0.55) |
SS-CF-ML3-NS4 |
3 | 1/4 | 33.5(1.32) | 15.0(0.59) | 12.9(0.51) | 2.4(0.09) | 12.0(0.47) | 19.0(0.75) |
SS-CF-ML4-NS2 |
4 | 1/8 | 29.7(1.17) | 10.4(0.41) | 13.7(0.54) | 2.4(0.09) | 12.0(0.47) | 14.0(0.55) |
SS-CF-ML6-NS2 |
6 | 1/8 | 31.3(1.23) | 10.4(0.41) | 15.3(0.60) | 4.8(0.19) | 14.0(0.55) | 14.0(0.55) |
SS-CF-ML6-NS4 |
6 | 1/4 | 35.8(1.41) | 15.0(0.59) | 15.3(0.60) | 4.8(0.19) | 14.0(0.55) | 19.0(0.75) |
SS-CF-ML6-NS6 |
6 | 3/8 | 37.7(1.48) | 15.0(0.59) | 15.3(0.60) | 4.8(0.19) | 14.0(0.55) | 22.0(0.87) |
SS-CF-ML6-NS8 |
6 | 1/2 | 42.5(1.67) | 19.8(0.78) | 15.3(0.60) | 4.8(0.19) | 14.0(0.55) | 27.0(1.06) |
SS-CF-ML8-NS2 |
8 | 1/8 | 32.1(1.26) | 10.4(0.41) | 16.2(0.64) | 6.4(0.25) | 16.0(0.63) | 15.0(0.59) |
SS-CF-ML8-NS4 |
8 | 1/4 | 37.0(1.46) | 15.0(0.59) | 16.2(0.64) | 6.4(0.25) | 16.0(0.63) | 19.0(0.75) |
SS-CF-ML8-NS6 |
8 | 3/8 | 38.5(1.52) | 15.0(0.59) | 16.2(0.64) | 6.4(0.25) | 16.0(0.63) | 22.0(0.87) |
SS-CF-ML8-NS8 |
8 | 1/2 | 43.3(1.70) | 19.8(0.78) | 16.2(0.64) | 6.4(0.25) | 16.0(0.63) | 27.0(1.06) |
Additional Details
Instrumentation tube fitting for high-pressure, leak-tight, vibration-resistant connections in process, analytical, and instrumentation piping systems. Interchangeable in form, fit and function with other major compression tube fitting brands.
Additional Information
Length
6 cm
Width
4 cm
Height
4 cm
Weight
0.1 kg

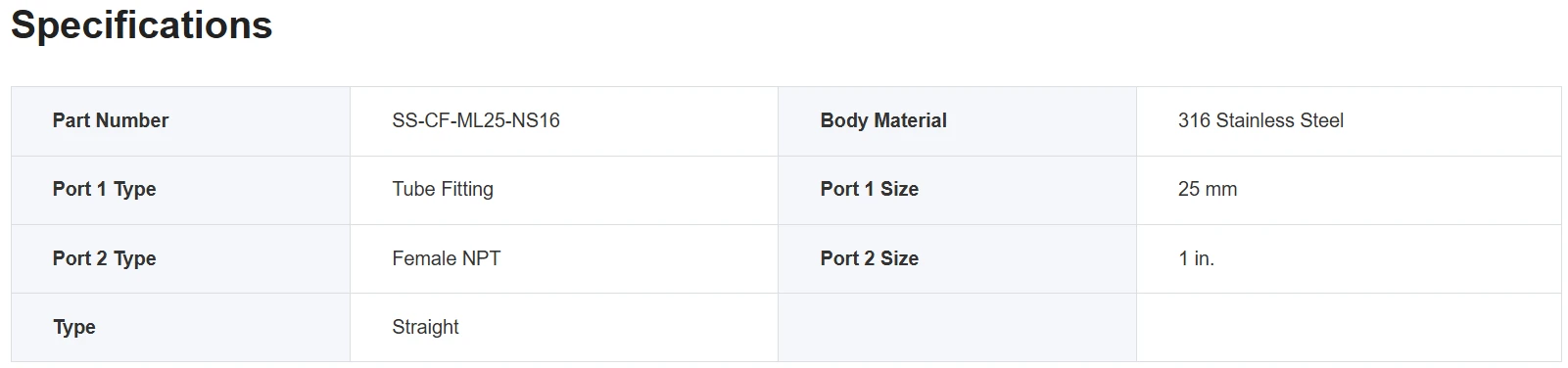

Specifications
Material
316/316L Stainless Steel (Ni content >= 28.5%)
Connection Style
Compression, double-ferrule tube fitting (FITOK 6D Series)
Standard / Certification
Tested to ASTM F1387; dimensionally interchangeable with other major compression tube fitting brands
Pressure Rating
Rated to the maximum working pressure of the mating FITOK tubing (fitting is not the pressure-limiting component)
Thread Type
NPT Thread
Tube Type
Metric Tube
Max working pressure
6000 psig psig
Operating temperature
-28 to +204 °C °C
