FITOK 45° Positionable Male Elbows (SAE/MS Straight, Fractional Tube)
SKU:
Brand: FITOK
Category: Fittings and Accessories › Instrumentation Tube Fittings › Elbows
Tags: Fitok, Pipe Elbow, Pipe Fitting
FITOK 45° Positionable Male Elbows — 316/316L stainless steel compression double-ferrule tube fittings (Fractional Tube, SAE/MS Straight Thread), FITOK 6D Series. Ordering numbers shown are FITOK's...
Contact us for pricing
This product requires a custom quote
Port 1 Size
Port 2 Size
Port 3 Size
Quantity
Description
FITOK 45° Positionable Male Elbows — 316/316L stainless steel compression double-ferrule tube fittings (Fractional Tube, SAE/MS Straight Thread), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
Available Variants & Specifications
| Ordering No. | Port 1 Size | Port 2 Size | Port 3 Size | L (Length) | B (Thread) | C (Depth) | G (Nut Hex) | E (Min Orifice) | F (Body Hex) | Lx | Gx |
|---|---|---|---|---|---|---|---|---|---|---|---|
SS-VP-FL12-ST17 |
3/4 | 12 | 1 1/16-12 | 1.57(39.9) | 0.66(16.8) | 0.96(24.4) | 1.13(28.6) | 0.62(15.7) | 1.06(27.0) | 1.86(47.2) | 1.25(31.8) |
SS-VP-FL4-ST7 |
1/4 | 4 | 7/16-20 | 1.01(25.7) | 0.39(9.9) | 0.60(15.2) | 0.56(14.3) | 0.19(4.8) | 0.50(12.7) | 1.01(25.7) | 0.56(14.3) |
SS-VP-FL6-ST9 |
3/8 | 6 | 9/16-18 | 1.10(27.9) | 0.44(11.2) | 0.66(16.8) | 0.69(17.5) | 0.28(7.1) | 0.63(15.9) | 1.11(28.2) | 0.69(17.5) |
SS-VP-FL8-ST12 |
1/2 | 8 | 3/4-16 | 1.26(32.0) | 0.50(12.7) | 0.90(22.9) | 0.87(22.2) | 0.41(10.4) | 0.81(20.6) | 1.27(32.3) | 0.87(22.2) |
Additional Details
Instrumentation tube fitting for high-pressure, leak-tight, vibration-resistant connections in process, analytical, and instrumentation piping systems. Interchangeable in form, fit and function with other major compression tube fitting brands.
Additional Information
Length
6 cm
Width
4 cm
Height
4 cm
Weight
0.1 kg

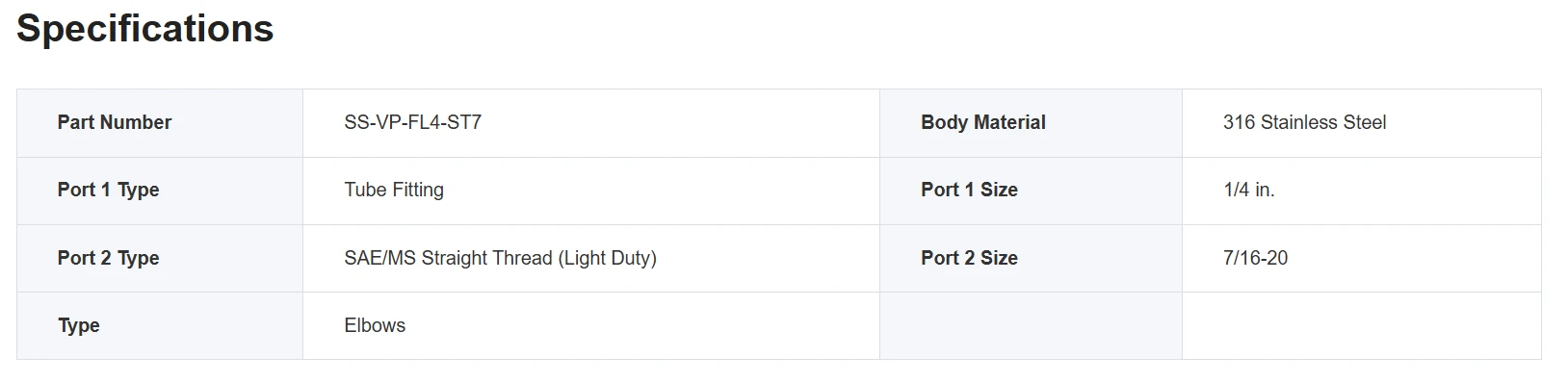

Specifications
Material
316/316L Stainless Steel (Ni content >= 28.5%)
Connection Style
Compression, double-ferrule tube fitting (FITOK 6D Series)
Standard / Certification
Tested to ASTM F1387; dimensionally interchangeable with other major compression tube fitting brands
Pressure Rating
Rated to the maximum working pressure of the mating FITOK tubing (fitting is not the pressure-limiting component)
Thread Type
SAE/MS Straight Threads (ST)
Tube Type
Fractional Tube
Max working pressure
6000 psig psig
Operating temperature
-28 to +204 °C °C
FITOK 45° Positionable Male Elbows — 316/316L stainless steel compression double-ferrule tube fittings (Fractional Tube, SAE/MS Straight Thread), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
