FITOK Reducer Elbows (Metric Tube)
SKU:
Brand: FITOK
Category: Fittings and Accessories › Instrumentation Tube Fittings › Elbows
Tags: Fitok, Pipe Elbow, Pipe Fitting
FITOK Reducer Elbows — 316/316L stainless steel compression double-ferrule tube fittings (Metric Tube), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK'...
Contact us for pricing
This product requires a custom quote
Port 1 Size
Port 2 Size
Quantity
Description
FITOK Reducer Elbows — 316/316L stainless steel compression double-ferrule tube fittings (Metric Tube), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
Available Variants & Specifications
| Ordering No. | Port 1 Size | Port 2 Size | L (Length) | C (Depth) | G (Nut Hex) | F (Body Hex) | E (Min Orifice) | Lx |
|---|---|---|---|---|---|---|---|---|
SS-LR-ML12-MT12 |
12 | 12 | 38.1(1.50) | 22.8(0.90) | 22.0(0.87) | 23.8(0.94) | 8.8(0.35) | 39.2(1.54) |
SS-LR-ML6-MT6 |
6 | 6 | 27.0(1.06) | 15.3(0.60) | 14.0(0.55) | 12.7(0.50) | 4.1(0.16) | 25.0(0.98) |
Additional Details
Instrumentation tube fitting for high-pressure, leak-tight, vibration-resistant connections in process, analytical, and instrumentation piping systems. Interchangeable in form, fit and function with other major compression tube fitting brands.
Additional Information
Length
6 cm
Width
4 cm
Height
4 cm
Weight
0.1 kg

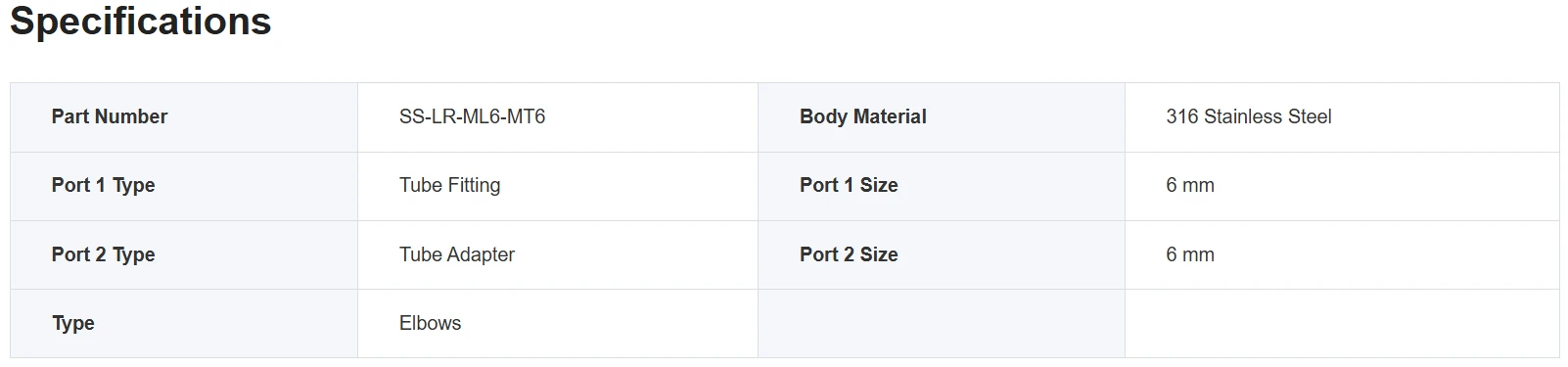

Specifications
Material
316/316L Stainless Steel (Ni content >= 28.5%)
Connection Style
Compression, double-ferrule tube fitting (FITOK 6D Series)
Standard / Certification
Tested to ASTM F1387; dimensionally interchangeable with other major compression tube fitting brands
Pressure Rating
Rated to the maximum working pressure of the mating FITOK tubing (fitting is not the pressure-limiting component)
Tube Type
Metric Tube
Max working pressure
6000 psig psig
Operating temperature
-28 to +204 °C °C
FITOK Reducer Elbows — 316/316L stainless steel compression double-ferrule tube fittings (Metric Tube), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
Available Variants & Specifications
| Ordering No. | Port 1 Size | Port 2 Size | L (Length) | C (Depth) | G (Nut Hex) | F (Body Hex) | E (Min Orifice) | Lx |
|---|---|---|---|---|---|---|---|---|
SS-LR-ML12-MT12 |
12 | 12 | 38.1(1.50) | 22.8(0.90) | 22.0(0.87) | 23.8(0.94) | 8.8(0.35) | 39.2(1.54) |
SS-LR-ML6-MT6 |
6 | 6 | 27.0(1.06) | 15.3(0.60) | 14.0(0.55) | 12.7(0.50) | 4.1(0.16) | 25.0(0.98) |
Additional Details
Instrumentation tube fitting for high-pressure, leak-tight, vibration-resistant connections in process, analytical, and instrumentation piping systems. Interchangeable in form, fit and function with other major compression tube fitting brands.
