FITOK Male Elbows (NPT, Metric Tube)
SKU:
Brand: FITOK
Category: Fittings and Accessories › Instrumentation Tube Fittings › Elbows
Tags: Fitok, Pipe Elbow, Pipe Fitting
FITOK Male Elbows — 316/316L stainless steel compression double-ferrule tube fittings (Metric Tube, NPT Thread), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published ...
Contact us for pricing
This product requires a custom quote
Port 1 Size
Port 2 Size
Quantity
Description
FITOK Male Elbows — 316/316L stainless steel compression double-ferrule tube fittings (Metric Tube, NPT Thread), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
Available Variants & Specifications
| Ordering No. | Port 1 Size | Port 2 Size | L (Length) | C (Depth) | G (Nut Hex) | F (Body Hex) | E (Min Orifice) | B (Thread) | Lx |
|---|---|---|---|---|---|---|---|---|---|
SS-LM-ML10-NS2 |
10 | 1/8 | 31.5(1.24) | 17.2(0.68) | 19.0(0.75) | 17.5(0.69) | 4.8(0.19) | 9.7(0.38) | 21.6(0.85) |
SS-LM-ML10-NS4 |
10 | 1/4 | 31.5(1.24) | 17.2(0.68) | 19.0(0.75) | 17.5(0.69) | 7.1(0.28) | 14.2(0.56) | 26.2(1.03) |
SS-LM-ML10-NS6 |
10 | 3/8 | 31.5(1.24) | 17.2(0.68) | 19.0(0.75) | 17.5(0.69) | 7.9(0.31) | 14.2(0.56) | 26.2(1.03) |
SS-LM-ML10-NS8 |
10 | 1/2 | 33.5(1.32) | 17.2(0.68) | 19.0(0.75) | 20.6(0.81) | 7.9(0.31) | 19.1(0.75) | 33.0(1.30) |

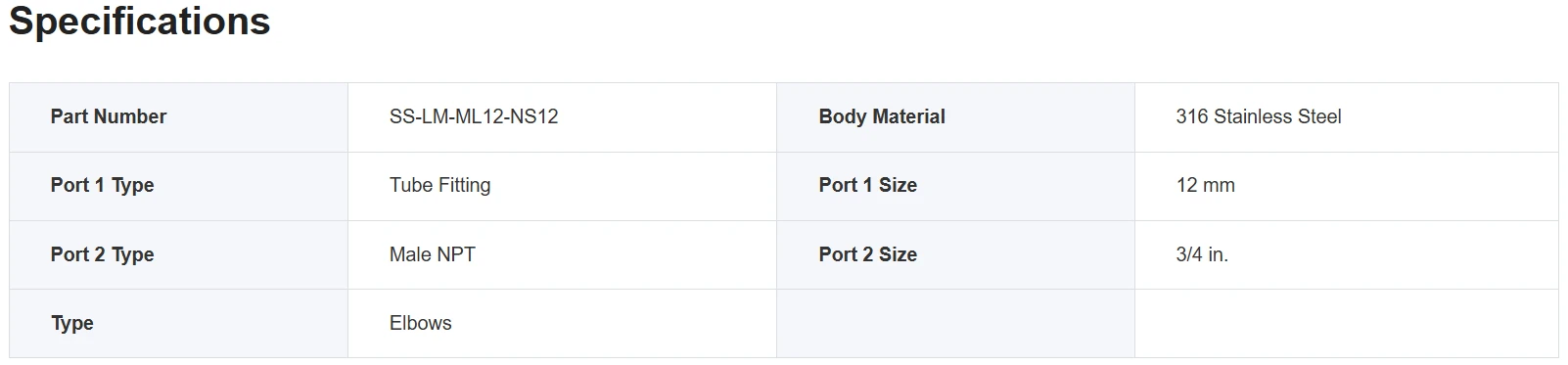

SS-LM-ML12-NS12 |
12 | 3/4 | 39.8(1.57) | 22.8(0.90) | 22.0(0.87) | 27.0(1.06) | 9.5(0.37) | 19.1(0.75) | 36.8(1.45) |
SS-LM-ML12-NS2 |
12 | 1/8 | 36.0(1.42) | 22.8(0.90) | 22.0(0.87) | 20.6(0.81) | 4.8(0.19) | 9.7(0.38) | 23.6(0.93) |
SS-LM-ML12-NS4 |
12 | 1/4 | 36.0(1.42) | 22.8(0.90) | 22.0(0.87) | 20.6(0.81) | 7.1(0.28) | 14.2(0.56) | 28.2(1.11) |
SS-LM-ML12-NS6 |
12 | 3/8 | 36.0(1.42) | 22.8(0.90) | 22.0(0.87) | 20.6(0.81) | 9.5(0.37) | 14.2(0.56) | 28.2(1.11) |
SS-LM-ML12-NS8 |
12 | 1/2 | 36.0(1.42) | 22.8(0.90) | 22.0(0.87) | 20.6(0.81) | 9.5(0.37) | 19.1(0.75) | 33.0(1.30) |
SS-LM-ML15-NS8 |
15 | 1/2 | 38.0(1.50) | 24.4(0.96) | 25.0(0.98) | 23.8(0.94) | 11.9(0.47) | 19.1(0.75) | 35.1(1.38) |
SS-LM-ML16-NS4 |
16 | 1/4 | 38.0(1.50) | 24.4(0.96) | 25.0(0.98) | 23.8(0.94) | 7.1(0.28) | 14.2(0.56) | 30.2(1.19) |
SS-LM-ML16-NS6 |
16 | 3/8 | 38.0(1.50) | 24.4(0.96) | 25.0(0.98) | 23.8(0.94) | 9.5(0.37) | 14.2(0.56) | 30.2(1.19) |
SS-LM-ML3-NS2 |
3 | 1/8 | 23.6(0.93) | 12.9(0.51) | 12.0(0.47) | 11.1(0.44) | 2.4(0.09) | 9.7(0.38) | 17.8(0.70) |
SS-LM-ML3-NS4 |
3 | 1/4 | 24.6(0.97) | 12.9(0.51) | 12.0(0.47) | 12.7(0.50) | 2.4(0.09) | 14.2(0.56) | 23.4(0.92) |
SS-LM-ML4-NS2 |
4 | 1/8 | 25.4(1.00) | 13.7(0.54) | 12.0(0.47) | 12.7(0.50) | 2.4(0.09) | 9.7(0.38) | 18.8(0.74) |
SS-LM-ML4-NS4 |
4 | 1/4 | 25.4(1.00) | 13.7(0.54) | 12.0(0.47) | 12.7(0.50) | 2.4(0.09) | 14.2(0.56) | 23.4(0.92) |
SS-LM-ML6-NS2 |
6 | 1/8 | 27.0(1.06) | 15.3(0.60) | 14.0(0.55) | 12.7(0.50) | 4.8(0.19) | 9.7(0.38) | 18.8(0.74) |
SS-LM-ML6-NS4 |
6 | 1/4 | 27.0(1.06) | 15.3(0.60) | 14.0(0.55) | 12.7(0.50) | 4.8(0.19) | 14.2(0.56) | 23.4(0.92) |
SS-LM-ML6-NS6 |
6 | 3/8 | 29.8(1.17) | 15.3(0.60) | 14.0(0.55) | 17.5(0.69) | 4.8(0.19) | 14.2(0.56) | 26.2(1.03) |
SS-LM-ML6-NS8 |
6 | 1/2 | 31.8(1.25) | 15.3(0.60) | 14.0(0.55) | 20.6(0.81) | 4.8(0.19) | 19.1(0.75) | 33.0(1.30) |
SS-LM-ML8-NS2 |
8 | 1/8 | 28.8(1.13) | 16.2(0.64) | 16.0(0.63) | 14.3(0.56) | 4.8(0.19) | 9.7(0.38) | 19.8(0.78) |
SS-LM-ML8-NS4 |
8 | 1/4 | 28.8(1.13) | 16.2(0.64) | 16.0(0.63) | 14.3(0.56) | 6.4(0.25) | 14.2(0.56) | 24.4(0.96) |
SS-LM-ML8-NS6 |
8 | 3/8 | 30.6(1.20) | 16.2(0.64) | 16.0(0.63) | 17.5(0.69) | 6.4(0.25) | 14.2(0.56) | 26.2(1.03) |
SS-LM-ML8-NS8 |
8 | 1/2 | 32.6(1.28) | 16.2(0.64) | 16.0(0.63) | 20.6(0.81) | 6.4(0.25) | 19.1(0.75) | 33.0(1.30) |
Additional Details
Instrumentation tube fitting for high-pressure, leak-tight, vibration-resistant connections in process, analytical, and instrumentation piping systems. Interchangeable in form, fit and function with other major compression tube fitting brands.
Additional Information
Length
6 cm
Width
4 cm
Height
4 cm
Weight
0.1 kg
Specifications
Material
316/316L Stainless Steel (Ni content >= 28.5%)
Connection Style
Compression, double-ferrule tube fitting (FITOK 6D Series)
Standard / Certification
Tested to ASTM F1387; dimensionally interchangeable with other major compression tube fitting brands
Pressure Rating
Rated to the maximum working pressure of the mating FITOK tubing (fitting is not the pressure-limiting component)
Thread Type
NPT Thread
Tube Type
Metric Tube
Max working pressure
6000 psig psig
Operating temperature
-28 to +204 °C °C
