FITOK Positionable Male Elbows (SAE/MS Straight, Fractional Tube)
SKU:
Brand: FITOK
Category: Fittings and Accessories › Instrumentation Tube Fittings › Elbows
Tags: Fitok, Pipe Elbow, Pipe Fitting
FITOK Positionable Male Elbows — 316/316L stainless steel compression double-ferrule tube fittings (Fractional Tube, SAE/MS Straight Thread), FITOK 6D Series. Ordering numbers shown are FITOK's par...
Contact us for pricing
This product requires a custom quote
Port 1 Size
Port 2 Size
Port 3 Size
Thread Type
Thread Standard
Quantity
Description
FITOK Positionable Male Elbows — 316/316L stainless steel compression double-ferrule tube fittings (Fractional Tube, SAE/MS Straight Thread), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
Available Variants & Specifications
| Ordering No. | Port 1 Size | Port 2 Size | Port 3 Size | L (Length) | B (Thread) | C (Depth) | G (Nut Hex) | E (Min Orifice) | F (Body Hex) | Lx | Gx |
|---|---|---|---|---|---|---|---|---|---|---|---|
SS-LP-FL10-PP8 |
5/8 | 1/2 | - | 1.50(38.1) | 0.51(13.0) | 0.96(24.4) | 1.00(25.4) | 0.47(11.9) | 0.94(23.8) | 1.71(43.4) | 1.06(27.0) |
SS-LP-FL10-ST14 |
5/8 | 10 | 7/8-14 | 1.56(39.6) | 0.56(14.2) | 0.96(24.4) | 1.00(25.4) | 0.50(12.7) | 0.94(23.8) | 1.71(43.4) | 1.00(25.4) |
SS-LP-FL12-PP12 |
3/4 | 3/4 | - | 1.57(39.9) | 0.51(13.0) | 0.96(24.4) | 1.13(28.6) | 0.62(15.7) | 1.06(27.0) | 1.92(48.8) | 1.37(34.9) |
SS-LP-FL12-PP8 |
3/4 | 1/2 | - | 1.57(39.9) | 0.51(13.0) | 0.96(24.4) | 1.13(28.6) | 0.47(11.9) | 1.06(27.0) | 1.78(45.2) | 1.06(27.0) |
SS-LP-FL12-ST17 |
3/4 | 12 | 1 1/16-12 | 1.63(41.4) | 0.66(16.8) | 0.96(24.4) | 1.13(28.6) | 0.62(15.7) | 1.06(27.0) | 1.92(48.8) | 1.25(31.8) |
SS-LP-FL14-ST19 |
7/8 | 14 | 1 3/16-12 | 1.70(43.2) | 0.66(16.8) | 1.02(25.9) | 1.25(31.8) | 0.72(18.3) | 1.25(31.8) | 1.99(50.5) | 1.37(34.9) |
SS-LP-FL16-PP12 |
1 | 3/4 | - | 1.93(49.0) | 0.51(13.0) | 1.23(31.2) | 1.50(38.1) | 0.62(15.7) | 1.37(34.9) | 2.10(53.3) | 1.37(34.9) |
SS-LP-FL16-PP16 |
1 | 1 | - | 1.93(49.0) | 0.52(13.2) | 1.23(31.2) | 1.50(38.1) | 0.78(19.8) | 1.37(34.9) | 2.11(53.6) | 1.63(41.3) |
SS-LP-FL16-ST21 |
1 | 16 | 1 5/16-12 | 1.99(50.5) | 0.66(16.8) | 1.23(31.2) | 1.50(38.1) | 0.88(22.4) | 1.37(34.9) | 2.11(53.6) | 1.50(38.1) |
SS-LP-FL20-ST26 |
1 1/4 | 20 | 1 5/8-12 | 2.67(67.8) | 0.66(16.8) | 1.62(41.1) | 1.87(47.6) | 1.09(27.7) | 1.69(42.9) | 2.29(58.2) | 1.87(47.6) |
SS-LP-FL24-ST30 |
1 1/2 | 24 | 1 7/8-12 | 3.07(78.0) | 0.66(16.8) | 1.97(50.0) | 2.25(57.2) | 1.34(34.0) | 2.00(50.8) | 2.38(60.5) | 2.13(54.0) |
SS-LP-FL4-PP2 |
1/4 | 1/8 | - | 1.06(26.9) | 0.26(6.6) | 0.60(15.2) | 0.56(14.3) | 0.16(4.1) | 0.50(12.7) | 1.04(26.4) | 0.56(14.3) |
SS-LP-FL4-PP4 |
1/4 | 1/4 | - | 1.14(29.0) | 0.35(9.0) | 0.60(15.2) | 0.56(14.3) | 0.19(4.8) | 0.63(15.9) | 1.27(32.3) | 0.75(19.1) |
SS-LP-FL4-ST7 |
1/4 | 4 | 7/16-20 | 1.12(28.4) | 0.39(9.9) | 0.60(15.2) | 0.56(14.3) | 0.19(4.8) | 0.50(12.7) | 1.06(27.0) | 0.56(14.3) |
SS-LP-FL4-ST9 |
1/4 | 6 | 9/16-18 | 1.20(30.5) | 0.44(11.2) | 0.60(15.2) | 0.56(14.3) | 0.19(4.8) | 0.63(15.9) | 1.27(32.3) | 0.69(17.5) |
SS-LP-FL5-ST8 |
5/16 | 5 | 1/2-20 | 1.19(30.2) | 0.39(9.9) | 0.64(16.3) | 0.63(15.9) | 0.23(5.8) | 0.56(14.3) | 1.16(29.5) | 0.63(15.9) |
SS-LP-FL6-PP4 |
3/8 | 1/4 | - | 1.20(30.5) | 0.35(9.0) | 0.66(16.8) | 0.69(17.5) | 0.23(5.8) | 0.63(15.9) | 1.27(32.3) | 0.75(19.1) |
SS-LP-FL6-PP6 |
3/8 | 3/8 | - | 1.31(33.3) | 0.37(9.4) | 0.66(16.8) | 0.69(17.5) | 0.28(7.1) | 0.81(20.6) | 1.46(37.1) | 0.87(22.2) |
SS-LP-FL6-ST12 |
3/8 | 8 | 3/4-16 | 1.37(34.8) | 0.50(12.7) | 0.66(16.8) | 0.69(17.5) | 0.28(7.1) | 0.81(20.6) | 1.49(37.8) | 0.87(22.2) |
SS-LP-FL6-ST7 |
3/8 | 4 | 7/16-20 | 1.31(33.3) | 0.39(9.9) | 0.66(16.8) | 0.69(17.5) | 0.20(5.1) | 0.63(15.9) | 1.24(31.5) | 0.56(14.3) |
SS-LP-FL6-ST9 |
3/8 | 6 | 9/16-18 | 1.26(32.0) | 0.44(11.2) | 0.66(16.8) | 0.69(17.5) | 0.28(7.1) | 0.63(15.9) | 1.27(32.3) | 0.69(17.5) |
SS-LP-FL8-PP4 |
1/2 | 1/4 | - | 1.42(36.1) | 0.35(9.0) | 0.90(22.9) | 0.87(22.2) | 0.23(5.8) | 0.81(20.6) | 1.38(35.1) | 0.75(19.1) |
SS-LP-FL8-PP6 |
1/2 | 3/8 | - | 1.42(36.1) | 0.37(9.4) | 0.90(22.9) | 0.87(22.2) | 0.31(7.9) | 0.81(20.6) | 1.46(37.1) | 0.87(22.2) |
SS-LP-FL8-PP8 |
1/2 | 1/2 | - | 1.50(38.1) | 0.51(13.0) | 0.90(22.9) | 0.87(22.2) | 0.41(10.4) | 0.94(23.8) | 1.71(43.4) | 1.06(27.0) |
SS-LP-FL8-ST12 |
1/2 | 8 | 3/4-16 | 1.48(37.6) | 0.50(12.7) | 0.90(22.9) | 0.87(22.2) | 0.41(10.4) | 0.81(20.6) | 1.49(37.8) | 0.87(22.2) |
SS-LP-FL8-ST9 |
1/2 | 6 | 9/16-18 | 1.48(37.6) | 0.44(11.2) | 0.90(22.9) | 0.87(22.2) | 0.28(7.1) | 0.81(20.6) | 1.48(37.5) | 0.69(17.5) |
Additional Details
Instrumentation tube fitting for high-pressure, leak-tight, vibration-resistant connections in process, analytical, and instrumentation piping systems. Interchangeable in form, fit and function with other major compression tube fitting brands.
Additional Information
Length
6 cm
Width
4 cm
Height
4 cm
Weight
0.1 kg

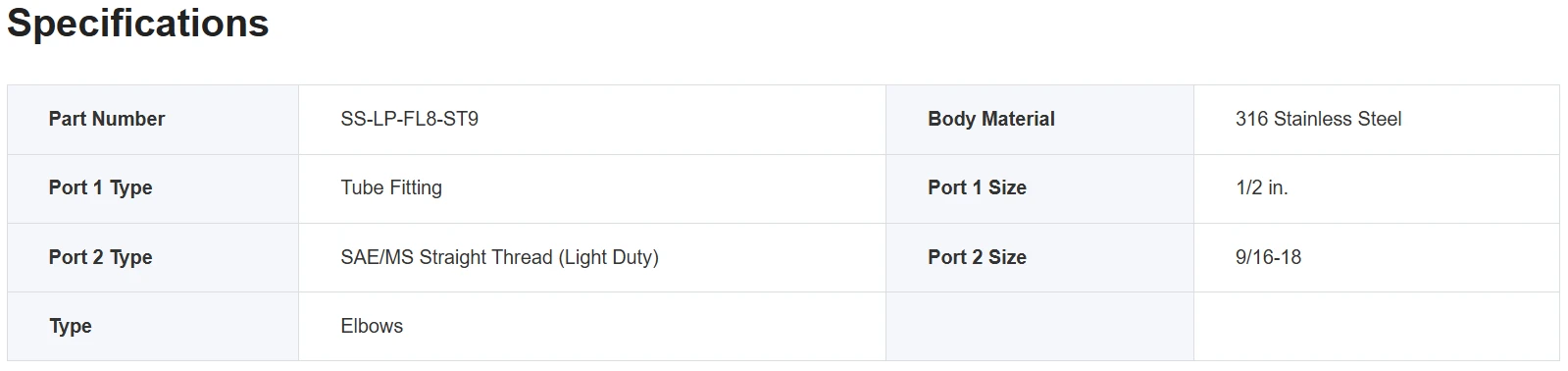

Specifications
Material
316/316L Stainless Steel (Ni content >= 28.5%)
Connection Style
Compression, double-ferrule tube fitting (FITOK 6D Series)
Standard / Certification
Tested to ASTM F1387; dimensionally interchangeable with other major compression tube fitting brands
Pressure Rating
Rated to the maximum working pressure of the mating FITOK tubing (fitting is not the pressure-limiting component)
Tube Type
Fractional Tube
Max working pressure
6000 psig psig
Operating temperature
-28 to +204 °C °C
