FITOK Lapped Flange Connectors (NPT, Fractional Tube)
SKU:
Brand: FITOK
Category: Fittings and Accessories › Instrumentation Tube Fittings › Flange & Weld Fittings
Tags: Fitok, Flange Fitting, Pipe Fitting
FITOK Lapped Flange Connectors — 316/316L stainless steel compression double-ferrule tube fittings (Fractional Tube, NPT Thread), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suf...
Contact us for pricing
This product requires a custom quote
Port 1 Size
Port 2 Size
Quantity
Description
FITOK Lapped Flange Connectors — 316/316L stainless steel compression double-ferrule tube fittings (Fractional Tube, NPT Thread), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
Available Variants & Specifications
| Ordering No. | Port 1 Size | Port 2 Size | L (Length) | G (Nut Hex) | C (Depth) | E (Min Orifice) | J |
|---|---|---|---|---|---|---|---|
SS-LFC-FL4A |
1/4 | A | 3.18(80.8) | 0.56(14.3) | 0.60(15.2) | 0.19(4.8) | 1.36(34.5) |
SS-LFC-FL4B |
1/4 | B | 3.18(80.8) | 0.56(14.3) | 0.60(15.2) | 0.19(4.8) | 1.36(34.5) |
SS-LFC-FL6A |
3/8 | A | 3.24(82.3) | 0.69(17.5) | 0.66(16.8) | 0.28(7.1) | 1.36(34.5) |
SS-LFC-FL6B |
3/8 | B | 3.24(82.3) | 0.69(17.5) | 0.66(16.8) | 0.28(7.1) | 1.36(34.5) |
SS-LFC-FL8A |
1/2 | A | 3.35(85.1) | 0.87(22.2) | 0.90(22.9) | 0.31(7.9) | 1.36(34.5) |
SS-LFC-FL8B |
1/2 | B | 3.35(85.1) | 0.87(22.2) | 0.90(22.9) | 0.31(7.9) | 1.36(34.5) |
Additional Details
Instrumentation tube fitting for high-pressure, leak-tight, vibration-resistant connections in process, analytical, and instrumentation piping systems. Interchangeable in form, fit and function with other major compression tube fitting brands.
Additional Information
Length
6 cm
Width
4 cm
Height
4 cm
Weight
0.1 kg

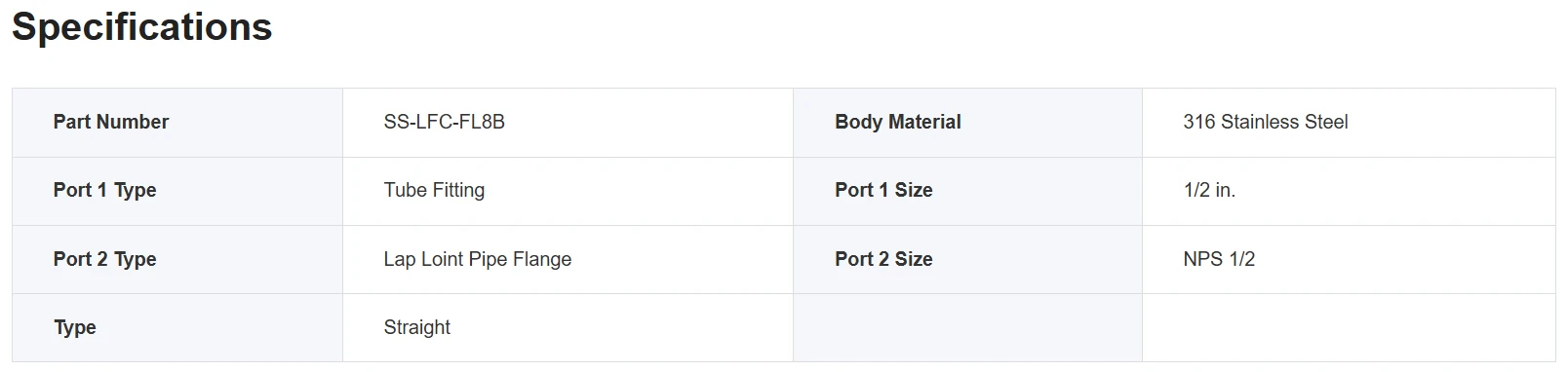

Specifications
Material
316/316L Stainless Steel (Ni content >= 28.5%)
Connection Style
Compression, double-ferrule tube fitting (FITOK 6D Series)
Standard / Certification
Tested to ASTM F1387; dimensionally interchangeable with other major compression tube fitting brands
Pressure Rating
Rated to the maximum working pressure of the mating FITOK tubing (fitting is not the pressure-limiting component)
Tube Type
Fractional Tube
Max working pressure
6000 psig psig
Operating temperature
-28 to +204 °C °C
FITOK Lapped Flange Connectors — 316/316L stainless steel compression double-ferrule tube fittings (Fractional Tube, NPT Thread), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
Available Variants & Specifications
| Ordering No. | Port 1 Size | Port 2 Size | L (Length) | G (Nut Hex) | C (Depth) | E (Min Orifice) | J |
|---|---|---|---|---|---|---|---|
SS-LFC-FL4A |
1/4 | A | 3.18(80.8) | 0.56(14.3) | 0.60(15.2) | 0.19(4.8) | 1.36(34.5) |
SS-LFC-FL4B |
1/4 | B | 3.18(80.8) | 0.56(14.3) | 0.60(15.2) | 0.19(4.8) | 1.36(34.5) |
SS-LFC-FL6A |
3/8 | A | 3.24(82.3) | 0.69(17.5) | 0.66(16.8) | 0.28(7.1) | 1.36(34.5) |
SS-LFC-FL6B |
3/8 | B | 3.24(82.3) | 0.69(17.5) | 0.66(16.8) | 0.28(7.1) | 1.36(34.5) |
SS-LFC-FL8A |
1/2 | A | 3.35(85.1) | 0.87(22.2) | 0.90(22.9) | 0.31(7.9) | 1.36(34.5) |
SS-LFC-FL8B |
1/2 | B | 3.35(85.1) | 0.87(22.2) | 0.90(22.9) | 0.31(7.9) | 1.36(34.5) |
Additional Details
Instrumentation tube fitting for high-pressure, leak-tight, vibration-resistant connections in process, analytical, and instrumentation piping systems. Interchangeable in form, fit and function with other major compression tube fitting brands.
