FITOK Weld Connectors (Metric Tube)
SKU:
Brand: FITOK
Category: Fittings and Accessories › Instrumentation Tube Fittings › Flange & Weld Fittings
Tags: Fitok, Flange Fitting, Pipe Fitting
FITOK Weld Connectors — 316/316L stainless steel compression double-ferrule tube fittings (Metric Tube), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK...
Contact us for pricing
This product requires a custom quote
Port 1 Size
Port 2 Size
Quantity
Description
FITOK Weld Connectors — 316/316L stainless steel compression double-ferrule tube fittings (Metric Tube), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
Available Variants & Specifications
| Ordering No. | Port 1 Size | Port 2 Size | L (Length) | C (Depth) | G (Nut Hex) | F (Body Hex) | E (Min Orifice) | B (Thread) | J |
|---|---|---|---|---|---|---|---|---|---|
SS-CW-ML10-PB4 |
10 | 1/4 | 40.9(1.60) | 17.2(0.70) | 19.0(0.75) | 18.0(0.71) | 7.5(0.30) | 14.2(0.56) | 13.7(0.54) |
SS-CW-ML10-PB6 |
10 | 3/8 | 40.9(1.60) | 17.2(0.70) | 19.0(0.75) | 18.0(0.71) | 7.9(0.31) | 14.2(0.56) | 17.1(0.67) |
SS-CW-ML10-PB8 |
10 | 1/2 | 46.5(1.80) | 17.2(0.70) | 19.0(0.75) | 22.0(0.87) | 7.9(0.31) | 19.1(0.75) | 21.3(0.84) |
SS-CW-ML12-PB4 |
12 | 1/4 | 43.4(1.70) | 22.8(0.90) | 22.0(0.87) | 22.0(0.87) | 7.5(0.30) | 14.2(0.56) | 13.7(0.54) |
SS-CW-ML12-PB6 |
12 | 3/8 | 43.4(1.70) | 22.8(0.90) | 22.0(0.87) | 22.0(0.87) | 9.5(0.37) | 14.2(0.56) | 17.1(0.67) |
SS-CW-ML12-PB8 |
12 | 1/2 | 49.0(1.90) | 22.8(0.90) | 22.0(0.87) | 22.0(0.87) | 9.5(0.37) | 19.1(0.75) | 21.3(0.84) |
SS-CW-ML14-PB6 |
14 | 3/8 | 44.1(1.70) | 24.4(0.96) | 25.0(0.98) | 24.0(0.94) | 10.7(0.42) | 14.2(0.56) | 17.1(0.67) |
SS-CW-ML15-PB8 |
15 | 1/2 | 49.0(1.90) | 24.4(0.96) | 25.0(0.98) | 24.0(0.94) | 11.9(0.47) | 19.1(0.75) | 21.3(0.84) |
SS-CW-ML16-PB8 |
16 | 1/2 | 49.0(1.90) | 24.4(0.96) | 25.0(0.98) | 24.0(0.94) | 12.7(0.50) | 19.1(0.75) | 21.3(0.84) |
SS-CW-ML18-PB8 |
18 | 1/2 | 50.5(2.00) | 24.4(0.96) | 30.0(1.18) | 27.0(1.06) | 13.9(0.55) | 19.1(0.75) | 21.3(0.84) |
SS-CW-ML3-PB2 |
3 | 1/8 | 30.5(1.20) | 12.9(0.51) | 12.0(0.47) | 12.0(0.47) | 2.4(0.09) | 9.7(0.38) | 10.3(0.41) |
SS-CW-ML30-PB20 |
30 | 1 1/4 | 77.2(3.00) | 39.6(1.60) | 50.0(1.97) | 46.0(1.81) | 26.2(1.03) | 23.9(0.94) | 42.2(1.66) |
SS-CW-ML32-PB20 |
32 | 1 1/4 | 79.6(3.10) | 42.0(1.70) | 50.0(1.97) | 46.0(1.81) | 28.6(1.13) | 23.9(0.94) | 42.2(1.66) |
SS-CW-ML38-PB24 |
38 | 1 1/2 | 91.6(3.60) | 49.4(1.90) | 60.0(2.36) | 55.0(2.17) | 33.7(1.33) | 26.2(1.03) | 48.3(1.9) |
SS-CW-ML4-PB2 |
4 | 1/8 | 31.5(1.24) | 13.7(0.54) | 12.0(0.47) | 12.0(0.47) | 2.4(0.09) | 9.7(0.38) | 10.3(0.41) |
SS-CW-ML6-PB2 |
6 | 1/8 | 32.8(1.29) | 15.3(0.60) | 14.0(0.55) | 14.0(0.55) | 4.8(0.19) | 9.7(0.38) | 10.3(0.41) |
SS-CW-ML6-PB4 |
6 | 1/4 | 37.9(1.49) | 15.3(0.60) | 14.0(0.55) | 14.0(0.55) | 4.8(0.19) | 14.2(0.56) | 13.7(0.54) |
SS-CW-ML8-PB2 |
8 | 1/8 | 34.2(1.35) | 16.2(0.64) | 16.0(0.63) | 15.0(0.59) | 5.4(0.21) | 9.7(0.38) | 10.3(0.41) |
SS-CW-ML8-PB4 |
8 | 1/4 | 38.7(1.52) | 16.2(0.64) | 16.0(0.63) | 15.0(0.59) | 6.4(0.25) | 14.2(0.56) | 13.7(0.54) |
SS-CW-ML8-PB8 |
8 | 1/2 | 45.6(1.80) | 16.2(0.64) | 16.0(0.63) | 22.0(0.87) | 6.4(0.25) | 19.1(0.75) | 21.3(0.84) |
Additional Details
Instrumentation tube fitting for high-pressure, leak-tight, vibration-resistant connections in process, analytical, and instrumentation piping systems. Interchangeable in form, fit and function with other major compression tube fitting brands.
Additional Information
Length
6 cm
Width
4 cm
Height
4 cm
Weight
0.1 kg

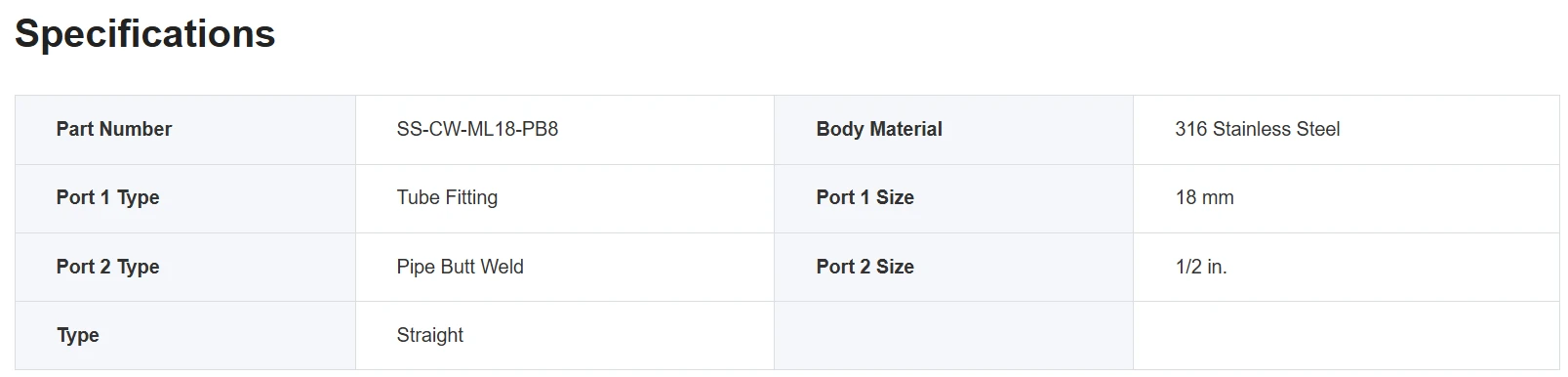

Specifications
Material
316/316L Stainless Steel (Ni content >= 28.5%)
Connection Style
Compression, double-ferrule tube fitting (FITOK 6D Series)
Standard / Certification
Tested to ASTM F1387; dimensionally interchangeable with other major compression tube fitting brands
Pressure Rating
Rated to the maximum working pressure of the mating FITOK tubing (fitting is not the pressure-limiting component)
Tube Type
Metric Tube
Max working pressure
6000 psig psig
Operating temperature
-28 to +204 °C °C
FITOK Weld Connectors — 316/316L stainless steel compression double-ferrule tube fittings (Metric Tube), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
