FITOK Weld Connectors (Fractional Tube)
SKU:
Brand: FITOK
Category: Fittings and Accessories › Instrumentation Tube Fittings › Flange & Weld Fittings
Tags: Fitok, Flange Fitting, Pipe Fitting
FITOK Weld Connectors — 316/316L stainless steel compression double-ferrule tube fittings (Fractional Tube), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in F...
Contact us for pricing
This product requires a custom quote
Port 1 Size
Port 2 Size
Quantity
Description
FITOK Weld Connectors — 316/316L stainless steel compression double-ferrule tube fittings (Fractional Tube), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
Available Variants & Specifications
| Ordering No. | Port 1 Size | Port 2 Size | L (Length) | C (Depth) | G (Nut Hex) | F (Body Hex) | E (Min Orifice) | B (Thread) | J |
|---|---|---|---|---|---|---|---|---|---|
SS-CW-FL10-PB8 |
5/8 | 1/2 | 1.93(49.0) | 0.96(24.4) | 1.00(25.4) | 0.94(23.8) | 0.50(12.7) | 0.75(19.1) | 0.84(21.3) |
SS-CW-FL10-TS10 |
5/8 | - | - | 1.65(41.9) | 0.96(24.4) | 1.00(25.4) | 0.94(23.8) | 0.47(11.9) | 0.50(12.7) |
SS-CW-FL12-PB12 |
3/4 | 3/4 | 1.99(50.5) | 0.96(24.4) | 1.13(28.6) | 1.06(27.0) | 0.62(15.7) | 0.75(19.1) | 1.05(26.7) |
SS-CW-FL12-PB8 |
3/4 | 1/2 | 1.99(50.5) | 0.96(24.4) | 1.13(28.6) | 1.06(27.0) | 0.55(14.0) | 0.75(19.1) | 0.84(21.3) |
SS-CW-FL12-TS12 |
3/4 | - | - | 1.71(43.4) | 0.96(24.4) | 1.13(28.6) | 1.06(27.0) | 0.47(11.9) | 0.62(15.7) |
SS-CW-FL16-PB16 |
1 | 1 | 2.45(62.2) | 1.23(31.2) | 1.50(38.1) | 1.37(34.9) | 0.88(22.4) | 0.94(23.9) | 1.31(33.4) |
SS-CW-FL16-TS16 |
1 | - | - | 2.07(52.6) | 1.23(31.2) | 1.50(38.1) | 1.37(34.9) | 0.56(14.2) | 0.88(22.4) |
SS-CW-FL2-PB2 |
1/8 | 1/8 | 1.20(30.5) | 0.50(12.7) | 0.44(11.1) | 0.44(11.1) | 0.09(2.3) | 0.38(9.7) | 0.41(10.3) |
SS-CW-FL2-TS2 |
1/8 | - | - | 1.14(29.0) | 0.50(12.7) | 0.44(11.1) | 0.44(11.1) | 0.34(8.6) | 0.09(2.3) |
SS-CW-FL20-PB20 |
1 1/4 | 1 1/4 | 3.04(77.2) | 1.62(41.1) | 1.87(47.6) | 1.75(44.5) | 1.09(27.7) | 0.94(23.9) | 1.66(42.2) |
SS-CW-FL24-PB24 |
1 1/2 | 1 1/2 | 3.50(88.9) | 1.97(50.0) | 2.25(57.2) | 2.13(54.0) | 1.34(34.0) | 1.03(26.2) | 1.90(48.3) |
SS-CW-FL3-PB2 |
3/16 | 1/8 | 1.23(31.2) | 0.54(13.7) | 0.50(12.7) | 0.44(11.1) | 0.12(3.0) | 0.38(9.7) | 0.41(10.3) |
SS-CW-FL3-TS3 |
3/16 | - | - | 1.17(29.7) | 0.54(13.7) | 0.50(12.7) | 0.44(11.1) | 0.37(9.5) | 0.13(3.3) |
SS-CW-FL4-PB2 |
1/4 | 1/8 | 1.29(32.8) | 0.60(15.2) | 0.56(14.3) | 0.50(12.7) | 0.19(4.8) | 0.38(9.7) | 0.41(10.3) |
SS-CW-FL4-PB4 |
1/4 | 1/4 | 1.49(37.8) | 0.60(15.2) | 0.56(14.3) | 0.56(14.3) | 0.19(4.8) | 0.56(14.2) | 0.54(13.7) |
SS-CW-FL4-TS4 |
1/4 | - | - | 1.32(33.5) | 0.60(15.2) | 0.56(14.3) | 0.50(12.7) | 0.41(10.4) | 0.19(4.8) |
SS-CW-FL5-PB2 |
5/16 | 1/8 | 1.34(34.0) | 0.64(16.3) | 0.63(15.9) | 0.56(14.3) | 0.21(5.3) | 0.38(9.7) | 0.41(10.3) |
SS-CW-FL5-PB4 |
5/16 | 1/4 | 1.52(38.6) | 0.64(16.3) | 0.63(15.9) | 0.56(14.3) | 0.25(6.4) | 0.56(14.2) | 0.54(13.7) |
SS-CW-FL6-PB12 |
3/8 | 3/4 | 1.88(47.8) | 0.66(16.8) | 0.69(17.5) | 1.06(27.0) | 0.28(7.1) | 0.75(19.1) | 1.05(26.7) |
SS-CW-FL6-PB4 |
3/8 | 1/4 | 1.57(39.9) | 0.66(16.8) | 0.69(17.5) | 0.63(15.9) | 0.28(7.1) | 0.56(14.2) | 0.54(13.7) |
SS-CW-FL6-PB6 |
3/8 | 3/8 | 1.57(39.9) | 0.66(16.8) | 0.69(17.5) | 0.69(17.5) | 0.28(7.1) | 0.56(14.2) | 0.67(17.1) |
SS-CW-FL6-PB8 |
3/8 | 1/2 | 1.82(46.2) | 0.66(16.8) | 0.69(17.5) | 0.87(22.2) | 0.28(7.1) | 0.75(19.1) | 0.84(21.3) |
SS-CW-FL6-TS6 |
3/8 | - | - | 1.48(37.6) | 0.66(16.8) | 0.69(17.5) | 0.63(15.9) | 0.47(11.9) | 0.28(7.1) |
SS-CW-FL8-PB12 |
1/2 | 3/4 | 1.99(50.5) | 0.90(22.9) | 0.87(22.2) | 1.06(27.0) | 0.41(10.4) | 0.75(19.1) | 1.05(26.7) |
SS-CW-FL8-PB6 |
1/2 | 3/8 | 1.71(43.4) | 0.90(22.9) | 0.87(22.2) | 0.81(20.6) | 0.41(10.4) | 0.56(14.2) | 0.67(17.1) |
SS-CW-FL8-PB8 |
1/2 | 1/2 | 1.93(49.0) | 0.90(22.9) | 0.87(22.2) | 0.87(22.2) | 0.41(10.4) | 0.75(19.1) | 0.84(21.3) |
SS-CW-FL8-TS8 |
1/2 | - | - | 1.62(41.1) | 0.90(22.9) | 0.87(22.2) | 0.81(20.6) | 0.47(11.9) | 0.41(10.4) |
Additional Details
Instrumentation tube fitting for high-pressure, leak-tight, vibration-resistant connections in process, analytical, and instrumentation piping systems. Interchangeable in form, fit and function with other major compression tube fitting brands.
Additional Information
Length
6 cm
Width
4 cm
Height
4 cm
Weight
0.1 kg

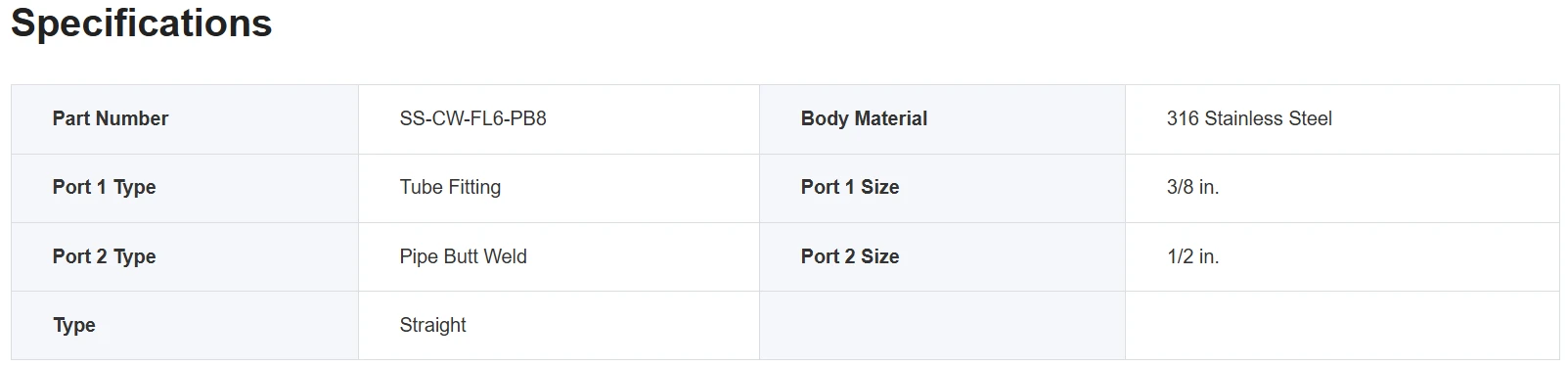

Specifications
Material
316/316L Stainless Steel (Ni content >= 28.5%)
Connection Style
Compression, double-ferrule tube fitting (FITOK 6D Series)
Standard / Certification
Tested to ASTM F1387; dimensionally interchangeable with other major compression tube fitting brands
Pressure Rating
Rated to the maximum working pressure of the mating FITOK tubing (fitting is not the pressure-limiting component)
Tube Type
Fractional Tube
Max working pressure
6000 psig psig
Operating temperature
-28 to +204 °C °C
