FITOK Union Elbows (Metric Tube)
Share productSKU:
Click to copyFITOK Union Elbows — 316/316L stainless steel compression double-ferrule tube fittings (Metric Tube), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's ...
Contact us for pricing
This product requires a custom quote
In Stock
Port 1 Size
Quantity
Add to wishlist
Description
FITOK Union Elbows — 316/316L stainless steel compression double-ferrule tube fittings (Metric Tube), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
Available Variants & Specifications
| Ordering No. | Port 1 Size | L (Length) | C (Depth) | G (Nut Hex) | F (Body Hex) | E (Min Orifice) |
|---|---|---|---|---|---|---|
SS-LU-ML10 |
10 | 31.5(1.24) | 17.2(0.68) | 19.0(0.75) | 17.5(0.69) | 7.9(0.31) |
SS-LU-ML12 |
12 | 36.0(1.42) | 22.8(0.90) | 22.0(0.87) | 20.6(0.81) | 9.5(0.37) |
SS-LU-ML14 |
14 | 38.0(1.50) | 24.4(0.96) | 25.0(0.98) | 23.8(0.94) | 11.0(0.43) |
SS-LU-ML15 |
15 | 38.0(1.50) | 24.4(0.96) | 25.0(0.98) | 23.8(0.94) | 11.9(0.47) |
SS-LU-ML16 |
16 | 38.0(1.50) | 24.4(0.96) | 25.0(0.98) | 23.8(0.94) | 12.7(0.50) |
SS-LU-ML18 |
18 | 39.8(1.57) | 24.4(0.96) | 30.0(1.18) | 27.0(1.06) | 15.1(0.59) |
SS-LU-ML20 |
20 | 44.6(1.76) | 26.0(1.02) | 32.0(1.26) | 34.9(1.37) | 15.9(0.63) |
SS-LU-ML22 |
22 | 44.6(1.76) | 26.0(1.02) | 32.0(1.26) | 34.9(1.37) | 18.3(0.72) |
SS-LU-ML25 |
25 | 49.1(1.93) | 31.3(1.23) | 38.0(1.5) | 34.9(1.37) | 21.8(0.86) |
SS-LU-ML28 |
28 | 64.0(2.52) | 36.6(1.44) | 46.0(1.81) | 42.9(1.69) | 21.8(0.86) |
SS-LU-ML3 |
3 | 22.3(0.88) | 12.9(0.51) | 12.0(0.47) | 9.5(0.37) | 2.4(0.09) |
SS-LU-ML30 |
30 | 69.9(2.75) | 39.6(1.56) | 50.0(1.97) | 42.9(1.69) | 26.2(1.03) |
SS-LU-ML32 |
32 | 72.3(2.85) | 42.0(1.65) | 50.0(1.97) | 42.9(1.69) | 28.6(1.13) |
SS-LU-ML38 |
38 | 84.0(3.31) | 49.4(1.94) | 60.0(2.36) | 50.8(2.00) | 33.7(1.33) |
SS-LU-ML4 |
4 | 25.4(1.00) | 13.7(0.54) | 12.0(0.47) | 12.7(0.50) | 2.4(0.09) |
SS-LU-ML6 |
6 | 27.0(1.06) | 15.3(0.60) | 14.0(0.55) | 12.7(0.50) | 4.8(0.19) |
SS-LU-ML8 |
8 | 28.8(1.13) | 16.2(0.64) | 16.0(0.63) | 14.3(0.56) | 6.4(0.25) |
Additional Details
Instrumentation tube fitting for high-pressure, leak-tight, vibration-resistant connections in process, analytical, and instrumentation piping systems. Interchangeable in form, fit and function with other major compression tube fitting brands.
Additional Information
Length
6 cm
Width
4 cm
Height
4 cm
Weight
0.1 kg

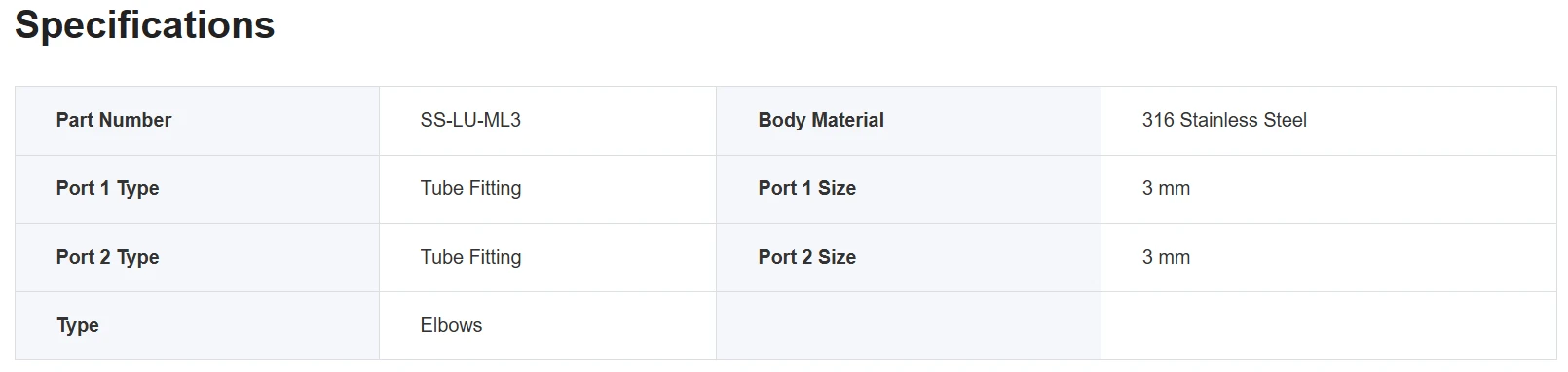

Specifications
General
Material
316/316L Stainless Steel (Ni content >= 28.5%)
Connection Style
Compression, double-ferrule tube fitting (FITOK 6D Series)
Standard / Certification
Tested to ASTM F1387; dimensionally interchangeable with other major compression tube fitting brands
Pressure Rating
Rated to the maximum working pressure of the mating FITOK tubing (fitting is not the pressure-limiting component)
Tube Type
Metric Tube
Technical Specifications
Max working pressure
6000 psig psig
Operating temperature
-28 to +204 °C °C
FITOK Union Elbows — 316/316L stainless steel compression double-ferrule tube fittings (Metric Tube), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
Available Variants & Specifications
| Ordering No. | Port 1 Size | L (Length) | C (Depth) | G (Nut Hex) | F (Body Hex) | E (Min Orifice) |
|---|---|---|---|---|---|---|
SS-LU-ML10 |
10 | 31.5(1.24) | 17.2(0.68) | 19.0(0.75) | 17.5(0.69) | 7.9(0.31) |
SS-LU-ML12 |
12 | 36.0(1.42) | 22.8(0.90) | 22.0(0.87) | 20.6(0.81) | 9.5(0.37) |
SS-LU-ML14 |
14 | 38.0(1.50) | 24.4(0.96) | 25.0(0.98) | 23.8(0.94) | 11.0(0.43) |
SS-LU-ML15 |
15 | 38.0(1.50) | 24.4(0.96) | 25.0(0.98) | 23.8(0.94) | 11.9(0.47) |
SS-LU-ML16 |
16 | 38.0(1.50) | 24.4(0.96) | 25.0(0.98) | 23.8(0.94) | 12.7(0.50) |
SS-LU-ML18 |
18 | 39.8(1.57) | 24.4(0.96) | 30.0(1.18) | 27.0(1.06) | 15.1(0.59) |
SS-LU-ML20 |
20 | 44.6(1.76) | 26.0(1.02) | 32.0(1.26) | 34.9(1.37) | 15.9(0.63) |
SS-LU-ML22 |
22 | 44.6(1.76) | 26.0(1.02) | 32.0(1.26) | 34.9(1.37) | 18.3(0.72) |
SS-LU-ML25 |
25 | 49.1(1.93) | 31.3(1.23) | 38.0(1.5) | 34.9(1.37) | 21.8(0.86) |
SS-LU-ML28 |
28 | 64.0(2.52) | 36.6(1.44) | 46.0(1.81) | 42.9(1.69) | 21.8(0.86) |
SS-LU-ML3 |
3 | 22.3(0.88) | 12.9(0.51) | 12.0(0.47) | 9.5(0.37) | 2.4(0.09) |
SS-LU-ML30 |
30 | 69.9(2.75) | 39.6(1.56) | 50.0(1.97) | 42.9(1.69) | 26.2(1.03) |
SS-LU-ML32 |
32 | 72.3(2.85) | 42.0(1.65) | 50.0(1.97) | 42.9(1.69) | 28.6(1.13) |
SS-LU-ML38 |
38 | 84.0(3.31) | 49.4(1.94) | 60.0(2.36) | 50.8(2.00) | 33.7(1.33) |
SS-LU-ML4 |
4 | 25.4(1.00) | 13.7(0.54) | 12.0(0.47) | 12.7(0.50) | 2.4(0.09) |
SS-LU-ML6 |
6 | 27.0(1.06) | 15.3(0.60) | 14.0(0.55) | 12.7(0.50) | 4.8(0.19) |
SS-LU-ML8 |
8 | 28.8(1.13) | 16.2(0.64) | 16.0(0.63) | 14.3(0.56) | 6.4(0.25) |
Additional Details
Instrumentation tube fitting for high-pressure, leak-tight, vibration-resistant connections in process, analytical, and instrumentation piping systems. Interchangeable in form, fit and function with other major compression tube fitting brands.
