FITOK Union Reducing Elbows (Fractional Tube)
SKU:
Brand: FITOK
Category: Fittings and Accessories › Instrumentation Tube Fittings › Elbows
Tags: Fitok, Pipe Elbow, Pipe Fitting
FITOK Union Reducing Elbows — 316/316L stainless steel compression double-ferrule tube fittings (Fractional Tube), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as publishe...
Contact us for pricing
This product requires a custom quote
Port 1 Size
Port 2 Size
Quantity
Description
FITOK Union Reducing Elbows — 316/316L stainless steel compression double-ferrule tube fittings (Fractional Tube), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
Available Variants & Specifications
| Ordering No. | Port 1 Size | Port 2 Size | L (Length) | C (Depth) | G (Nut Hex) | F (Body Hex) | E (Min Orifice) | Cx | Gx | Lx |
|---|---|---|---|---|---|---|---|---|---|---|
SS-LU-FL10-FL6 |
5/8 | 3/8 | 1.50(38.1) | 0.96(24.4) | 1.00(25.4) | 0.94(23.8) | 0.28(7.1) | 0.66(16.8) | 0.69(17.5) | 1.40(35.6) |
SS-LU-FL10-FL8 |
5/8 | 1/2 | 1.50(38.1) | 0.96(24.4) | 1.00(25.4) | 0.94(23.8) | 0.41(10.4) | 0.90(22.9) | 0.87(22.2) | 1.50(38.1) |
SS-LU-FL12-FL4 |
3/4 | 1/4 | 1.57(39.9) | 0.96(24.4) | 1.13(28.6) | 1.06(27.0) | 0.19(4.8) | 0.60(15.2) | 0.56(14.3) | 1.41(35.9) |
SS-LU-FL12-FL6 |
3/4 | 3/8 | 1.57(39.9) | 0.96(24.4) | 1.13(28.6) | 1.06(27.0) | 0.28(7.1) | 0.66(16.8) | 0.69(17.5) | 1.47(37.4) |
SS-LU-FL12-FL8 |
3/4 | 1/2 | 1.57(39.9) | 0.96(24.4) | 1.13(28.6) | 1.06(27.0) | 0.41(10.4) | 0.90(22.9) | 0.87(22.2) | 1.57(39.9) |
SS-LU-FL14-FL4 |
7/8 | 1/4 | 1.76(44.7) | 1.02(25.9) | 1.25(31.8) | 1.37(34.9) | 0.19(4.8) | 0.60(15.2) | 0.56(14.3) | 1.60(40.7) |
SS-LU-FL16-FL12 |
1 | 3/4 | 1.93(49.0) | 1.23(31.2) | 1.50(38.1) | 1.37(34.9) | 0.62(15.7) | 0.96(24.4) | 1.13(28.6) | 1.85(47.1) |
SS-LU-FL16-FL8 |
1 | 1/2 | 1.93(49.0) | 1.23(31.2) | 1.50(38.1) | 1.37(34.9) | 0.41(10.4) | 0.90(22.9) | 0.87(22.2) | 1.75(44.4) |
SS-LU-FL3-FL2 |
3/16 | 1/8 | 1.00(25.4) | 0.54(13.7) | 0.50(12.7) | 0.50(12.7) | 0.09(2.3) | 0.50(12.7) | 0.44(11.1) | 0.97(24.7) |
SS-LU-FL4-FL2 |
1/4 | 1/8 | 1.06(26.9) | 0.60(15.2) | 0.56(14.3) | 0.50(12.7) | 0.09(2.3) | 0.50(12.7) | 0.44(11.1) | 1.00(25.4) |
SS-LU-FL5-FL2 |
5/16 | 1/8 | 1.17(29.7) | 0.64(16.3) | 0.63(15.9) | 0.56(14.3) | 0.09(2.3) | 0.50(12.7) | 0.44(11.1) | 1.04(26.4) |
SS-LU-FL5-FL4 |
5/16 | 1/4 | 1.17(29.7) | 0.64(16.3) | 0.63(15.9) | 0.56(14.3) | 0.19(4.8) | 0.60(15.2) | 0.56(14.3) | 1.14(29.0) |
SS-LU-FL6-FL2 |
3/8 | 1/8 | 1.20(30.5) | 0.66(16.8) | 0.69(17.5) | 0.63(15.9) | 0.09(2.3) | 0.50(12.7) | 0.44(11.1) | 1.04(26.4) |
SS-LU-FL6-FL4 |
3/8 | 1/4 | 1.20(30.5) | 0.66(16.8) | 0.69(17.5) | 0.63(15.9) | 0.19(4.8) | 0.60(15.2) | 0.56(14.3) | 1.14(29.0) |
SS-LU-FL6-FL5 |
3/8 | 5/16 | 1.20(30.5) | 0.66(16.8) | 0.69(17.5) | 0.63(15.9) | 0.25(6.4) | 0.64(16.3) | 0.63(15.9) | 1.17(29.7) |
SS-LU-FL8-FL4 |
1/2 | 1/4 | 1.42(36.1) | 0.90(22.9) | 0.87(22.2) | 0.81(20.6) | 0.19(4.8) | 0.60(15.2) | 0.56(14.3) | 1.27(32.2) |
SS-LU-FL8-FL5 |
1/2 | 5/16 | 1.42(36.1) | 0.90(22.9) | 0.87(22.2) | 0.81(20.6) | 0.25(6.4) | 0.64(16.3) | 0.63(15.9) | 1.28(32.5) |
SS-LU-FL8-FL6 |
1/2 | 3/8 | 1.42(36.1) | 0.90(22.9) | 0.87(22.2) | 0.81(20.6) | 0.28(7.1) | 0.66(16.8) | 0.69(17.5) | 1.32(33.6) |
Additional Details
Instrumentation tube fitting for high-pressure, leak-tight, vibration-resistant connections in process, analytical, and instrumentation piping systems. Interchangeable in form, fit and function with other major compression tube fitting brands.
Additional Information
Length
6 cm
Width
4 cm
Height
4 cm
Weight
0.1 kg

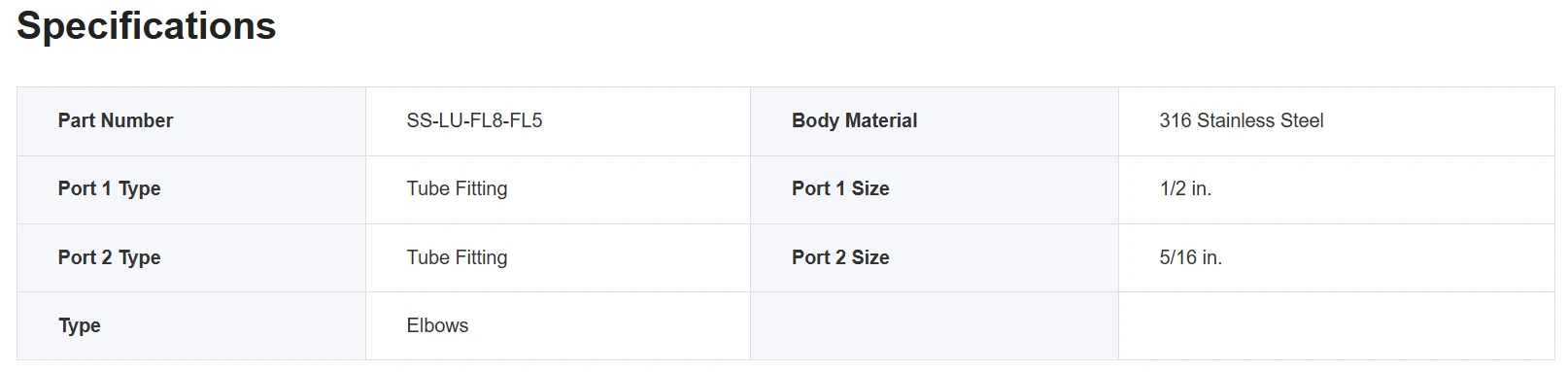

Specifications
Material
316/316L Stainless Steel (Ni content >= 28.5%)
Connection Style
Compression, double-ferrule tube fitting (FITOK 6D Series)
Standard / Certification
Tested to ASTM F1387; dimensionally interchangeable with other major compression tube fitting brands
Pressure Rating
Rated to the maximum working pressure of the mating FITOK tubing (fitting is not the pressure-limiting component)
Tube Type
Fractional Tube
Max working pressure
6000 psig psig
Operating temperature
-28 to +204 °C °C
