FITOK Calibration Fittings (Fractional Tube)
SKU:
Brand: FITOK
Category: Fittings and Accessories › Instrumentation Tube Fittings › Specialty Fittings
Tags: Specialty Fittings, Fitok
FITOK Calibration Fittings — 316/316L stainless steel compression double-ferrule tube fittings (Fractional Tube), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published...
Contact us for pricing
This product requires a custom quote
Port 2 Size
Quantity
Description
FITOK Calibration Fittings — 316/316L stainless steel compression double-ferrule tube fittings (Fractional Tube), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
Available Variants & Specifications
| Ordering No. | Port 2 Size | L (Length) | B (Thread) | C (Depth) | D | E (Min Orifice) | G (Nut Hex) | N |
|---|---|---|---|---|---|---|---|---|
SS-FC-FL4-1428 |
1/4-28 | 1.69(42.9) | 0.78(19.8) | 0.60(15.2) | 0.43(10.9) | 0.06(1.5) | 0.56(14.3) | - |
SS-FC-FL4-51624 |
5/16-24 | 2.32(58.9) | 1.41(35.8) | 0.60(15.2) | 0.40(10.2) | 0.06(1.5) | 0.56(14.3) | 0.41(10.4) |
Additional Details
Instrumentation tube fitting for high-pressure, leak-tight, vibration-resistant connections in process, analytical, and instrumentation piping systems. Interchangeable in form, fit and function with other major compression tube fitting brands.
Additional Information
Length
6 cm
Width
4 cm
Height
4 cm
Weight
0.1 kg

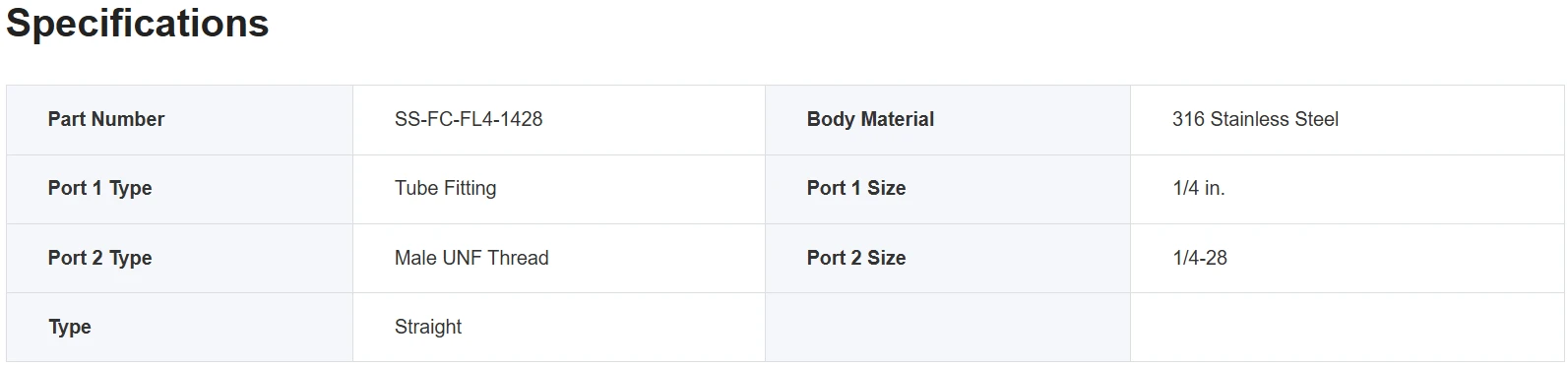

Specifications
Material
316/316L Stainless Steel (Ni content >= 28.5%)
Connection Style
Compression, double-ferrule tube fitting (FITOK 6D Series)
Standard / Certification
Tested to ASTM F1387; dimensionally interchangeable with other major compression tube fitting brands
Pressure Rating
Rated to the maximum working pressure of the mating FITOK tubing (fitting is not the pressure-limiting component)
Tube Type
Fractional Tube
Tube Size
1/4 in
Max working pressure
6000 psig psig
Operating temperature
-28 to +204 °C °C
FITOK Calibration Fittings — 316/316L stainless steel compression double-ferrule tube fittings (Fractional Tube), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
Available Variants & Specifications
| Ordering No. | Port 2 Size | L (Length) | B (Thread) | C (Depth) | D | E (Min Orifice) | G (Nut Hex) | N |
|---|---|---|---|---|---|---|---|---|
SS-FC-FL4-1428 |
1/4-28 | 1.69(42.9) | 0.78(19.8) | 0.60(15.2) | 0.43(10.9) | 0.06(1.5) | 0.56(14.3) | - |
SS-FC-FL4-51624 |
5/16-24 | 2.32(58.9) | 1.41(35.8) | 0.60(15.2) | 0.40(10.2) | 0.06(1.5) | 0.56(14.3) | 0.41(10.4) |
Additional Details
Instrumentation tube fitting for high-pressure, leak-tight, vibration-resistant connections in process, analytical, and instrumentation piping systems. Interchangeable in form, fit and function with other major compression tube fitting brands.
