FITOK Thermocouple Connectors (NPT, Metric Tube)
SKU:
Brand: FITOK
Category: Fittings and Accessories › Instrumentation Tube Fittings › Specialty Fittings
Tags: Specialty Fittings, Fitok
FITOK Thermocouple Connectors — 316/316L stainless steel compression double-ferrule tube fittings (Metric Tube, NPT Thread), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix a...
Contact us for pricing
This product requires a custom quote
Port 1 Size
Port 2 Size
Quantity
Description
FITOK Thermocouple Connectors — 316/316L stainless steel compression double-ferrule tube fittings (Metric Tube, NPT Thread), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
Available Variants & Specifications
| Ordering No. | Port 1 Size | Port 2 Size | L (Length) | B (Thread) | G (Nut Hex) | F (Body Hex) |
|---|---|---|---|---|---|---|
SS-TCM-ML10-NS12 |
10 | 3/4 | 48.0(1.89) | 19.1(0.75) | 19.0(0.75) | 27.0(1.06) |
SS-TCM-ML10-NS16 |
10 | 1 | 54.6(2.15) | 23.9(0.94) | 19.0(0.75) | 35.0(1.38) |
SS-TCM-ML10-NS6 |
10 | 3/8 | 40.9(1.61) | 14.2(0.56) | 19.0(0.75) | 18.0(0.71) |
SS-TCM-ML10-NS8 |
10 | 1/2 | 46.5(1.83) | 19.1(0.75) | 19.0(0.75) | 22.0(0.87) |
SS-TCM-ML12-NS12 |
12 | 3/4 | 50.5(1.99) | 19.1(0.75) | 22.0(0.87) | 27.0(1.06) |
SS-TCM-ML12-NS6 |
12 | 3/8 | 43.4(1.71) | 14.2(0.56) | 22.0(0.87) | 22.0(0.87) |
SS-TCM-ML12-NS8 |
12 | 1/2 | 49.0(1.93) | 19.1(0.75) | 22.0(0.87) | 22.0(0.87) |
SS-TCM-ML14-NS12 |
14 | 3/4 | 50.5(1.99) | 19.1(0.75) | 25.0(0.98) | 27.0(1.06) |
SS-TCM-ML14-NS8 |
14 | 1/2 | 49.0(1.93) | 19.1(0.75) | 25.0(0.98) | 24.0(0.94) |
SS-TCM-ML15-NS12 |
15 | 3/4 | 50.5(1.99) | 19.1(0.75) | 25.0(0.98) | 27.0(1.06) |
SS-TCM-ML15-NS16 |
15 | 1 | 57.1(2.25) | 23.9(0.94) | 25.0(0.98) | 35.0(1.38) |
SS-TCM-ML18-NS12 |
18 | 3/4 | 50.5(1.99) | 19.1(0.75) | 30.0(1.18) | 27.0(1.06) |
SS-TCM-ML2-NS2 |
2 | 1/8 | 30.5(1.20) | 9.7(0.38) | 12.0(0.47) | 12.0(0.47) |
SS-TCM-ML20-NS16 |
20 | 1 | 57.1(2.25) | 23.9(0.94) | 32.0(1.26) | 35.0(1.38) |
SS-TCM-ML22-NS16 |
22 | 1 | 57.1(2.25) | 23.9(0.94) | 32.0(1.26) | 35.0(1.38) |
SS-TCM-ML3-NS2 |
3 | 1/8 | 30.5(1.20) | 9.7(0.38) | 12.0(0.47) | 12.0(0.47) |
SS-TCM-ML3-NS4 |
3 | 1/4 | 35.6(1.40) | 14.2(0.56) | 12.0(0.47) | 14.0(0.55) |
SS-TCM-ML4-NS2 |
4 | 1/8 | 31.2(1.23) | 9.7(0.38) | 12.0(0.47) | 12.0(0.47) |
SS-TCM-ML4-NS4 |
4 | 1/4 | 36.3(1.43) | 14.2(0.56) | 12.0(0.47) | 14.0(0.55) |
SS-TCM-ML6-NS2 |
6 | 1/8 | 32.8(1.29) | 9.7(0.38) | 14.0(0.55) | 14.0(0.55) |
SS-TCM-ML6-NS4 |
6 | 1/4 | 37.9(1.49) | 14.2(0.56) | 14.0(0.55) | 14.0(0.55) |
SS-TCM-ML6-NS6 |
6 | 3/8 | 38.4(1.51) | 14.2(0.56) | 14.0(0.55) | 18.0(0.71) |
SS-TCM-ML6-NS8 |
6 | 1/2 | 44.7(1.76) | 19.1(0.75) | 14.0(0.55) | 22.0(0.87) |
SS-TCM-ML8-NS4 |
8 | 1/4 | 38.7(1.52) | 14.2(0.56) | 16.0(0.63) | 15.0(0.59) |
SS-TCM-ML8-NS6 |
8 | 3/8 | 39.3(1.55) | 14.2(0.56) | 16.0(0.63) | 18.0(0.71) |
SS-TCM-ML8-NS8 |
8 | 1/2 | 45.6(1.80) | 19.1(0.75) | 16.0(0.63) | 22.0(0.87) |
Additional Details
Instrumentation tube fitting for high-pressure, leak-tight, vibration-resistant connections in process, analytical, and instrumentation piping systems. Interchangeable in form, fit and function with other major compression tube fitting brands.
Additional Information
Length
6 cm
Width
4 cm
Height
4 cm
Weight
0.1 kg

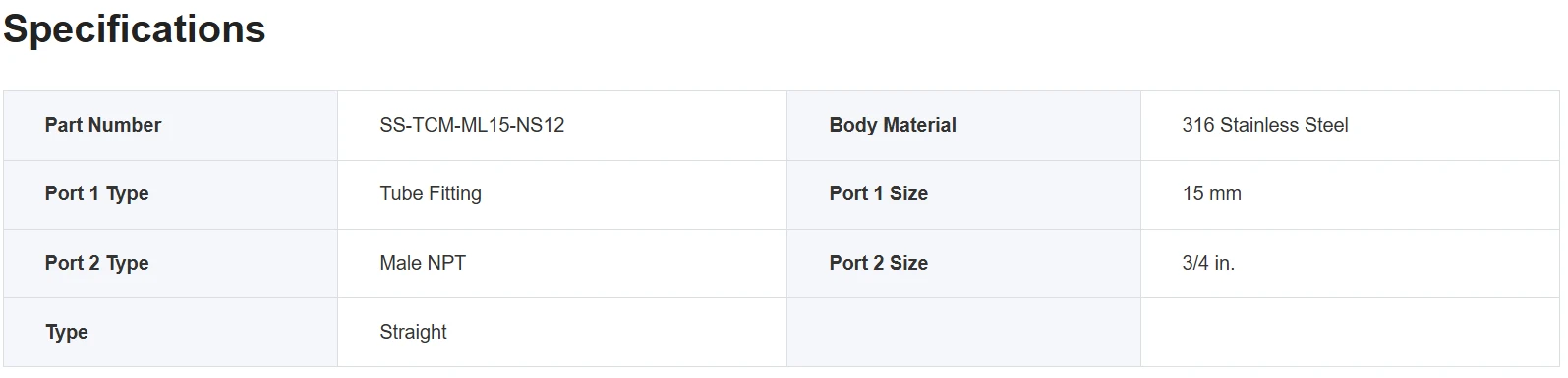

Specifications
Material
316/316L Stainless Steel (Ni content >= 28.5%)
Connection Style
Compression, double-ferrule tube fitting (FITOK 6D Series)
Standard / Certification
Tested to ASTM F1387; dimensionally interchangeable with other major compression tube fitting brands
Pressure Rating
Rated to the maximum working pressure of the mating FITOK tubing (fitting is not the pressure-limiting component)
Thread Type
NPT Thread
Tube Type
Metric Tube
Max working pressure
6000 psig psig
Operating temperature
-28 to +204 °C °C
