FITOK Thermocouple Connectors (NPT, Fractional Tube)
SKU:
Brand: FITOK
Category: Fittings and Accessories › Instrumentation Tube Fittings › Specialty Fittings
Tags: Specialty Fittings, Fitok
FITOK Thermocouple Connectors — 316/316L stainless steel compression double-ferrule tube fittings (Fractional Tube, NPT Thread), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suff...
Contact us for pricing
This product requires a custom quote
Port 1 Size
Port 2 Size
Quantity
Description
FITOK Thermocouple Connectors — 316/316L stainless steel compression double-ferrule tube fittings (Fractional Tube, NPT Thread), FITOK 6D Series. Ordering numbers shown are FITOK's part-number suffix as published in FITOK's 6D dimensional catalog; the material/series prefix (e.g. 'SS-' for 316 stainless) is applied by FITOK at order entry and is not included in the source catalog data.
Available Variants & Specifications
| Ordering No. | Port 1 Size | Port 2 Size | L (Length) | B (Thread) | G (Nut Hex) | F (Body Hex) |
|---|---|---|---|---|---|---|
SS-TCM-FL1-NS1 |
1/16 | 1/16 | 0.94(23.9) | 0.38(9.7) | 0.31(7.9) | 0.31(7.9) |
SS-TCM-FL1-NS2 |
1/16 | 1/8 | 1.03(26.2) | 0.38(9.7) | 0.31(7.9) | 0.44(11.1) |
SS-TCM-FL1-NS4 |
1/16 | 1/4 | 1.22(31.0) | 0.56(14.2) | 0.31(7.9) | 0.56(14.3) |
SS-TCM-FL10-NS12 |
5/8 | 3/4 | 1.99(50.5) | 0.75(19.1) | 1.00(25.4) | 1.06(27.0) |
SS-TCM-FL12-NS12 |
3/4 | 3/4 | 1.99(50.5) | 0.75(19.1) | 1.13(28.6) | 1.06(27.0) |
SS-TCM-FL16-NS16 |
1 | 1 | 2.45(62.2) | 0.94(23.9) | 1.50(38.1) | 1.37(34.9) |
SS-TCM-FL2-NS1 |
1/8 | 1/16 | 1.17(29.7) | 0.38(9.7) | 0.44(11.1) | 0.44(11.1) |
SS-TCM-FL2-NS2 |
1/8 | 1/8 | 1.20(30.5) | 0.38(9.7) | 0.44(11.1) | 0.44(11.1) |
SS-TCM-FL2-NS4 |
1/8 | 1/4 | 1.40(35.6) | 0.56(14.2) | 0.44(11.1) | 0.56(14.3) |
SS-TCM-FL3-NS2 |
3/16 | 1/8 | 1.23(31.2) | 0.38(9.7) | 0.50(12.7) | 0.44(11.1) |
SS-TCM-FL3-NS4 |
3/16 | 1/4 | 1.43(36.3) | 0.56(14.2) | 0.50(12.7) | 0.56(14.3) |
SS-TCM-FL4-NS2 |
1/4 | 1/8 | 1.29(32.8) | 0.38(9.7) | 0.56(14.3) | 0.50(12.7) |
SS-TCM-FL4-NS4 |
1/4 | 1/4 | 1.49(37.8) | 0.56(14.2) | 0.56(14.3) | 0.56(14.3) |
SS-TCM-FL4-NS6 |
1/4 | 3/8 | 1.51(38.4) | 0.56(14.2) | 0.56(14.3) | 0.69(17.5) |
SS-TCM-FL4-NS8 |
1/4 | 1/2 | 1.76(44.7) | 0.75(19.1) | 0.56(14.3) | 0.87(22.2) |
SS-TCM-FL5-NS4 |
5/16 | 1/4 | 1.52(38.6) | 0.56(14.2) | 0.63(15.9) | 0.56(14.3) |
SS-TCM-FL6-NS12 |
3/8 | 3/4 | 1.88(47.8) | 0.75(19.1) | 0.69(17.5) | 1.06(27.0) |
SS-TCM-FL6-NS4 |
3/8 | 1/4 | 1.57(39.9) | 0.56(14.2) | 0.69(17.5) | 0.63(15.9) |
SS-TCM-FL6-NS6 |
3/8 | 3/8 | 1.57(39.9) | 0.56(14.2) | 0.69(17.5) | 0.69(17.5) |
SS-TCM-FL6-NS8 |
3/8 | 1/2 | 1.82(46.2) | 0.75(19.1) | 0.69(17.5) | 0.87(22.2) |
SS-TCM-FL8-NS12 |
1/2 | 3/4 | 1.99(50.5) | 0.75(19.1) | 0.87(22.2) | 1.06(27.0) |
SS-TCM-FL8-NS8 |
1/2 | 1/2 | 1.93(49.0) | 0.75(19.1) | 0.87(22.2) | 0.87(22.2) |
Additional Details
Instrumentation tube fitting for high-pressure, leak-tight, vibration-resistant connections in process, analytical, and instrumentation piping systems. Interchangeable in form, fit and function with other major compression tube fitting brands.
Additional Information
Length
6 cm
Width
4 cm
Height
4 cm
Weight
0.1 kg

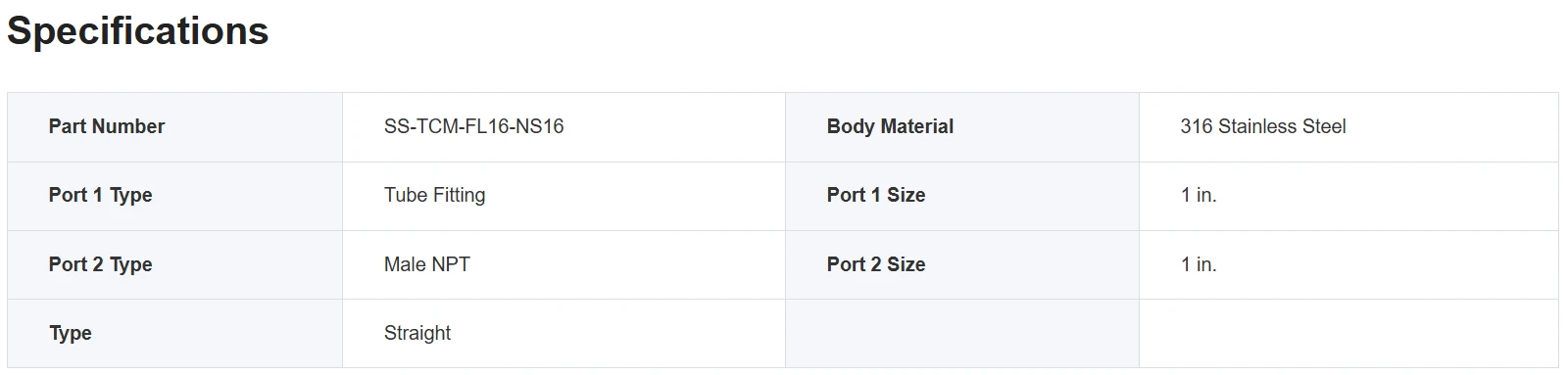

Specifications
Material
316/316L Stainless Steel (Ni content >= 28.5%)
Connection Style
Compression, double-ferrule tube fitting (FITOK 6D Series)
Standard / Certification
Tested to ASTM F1387; dimensionally interchangeable with other major compression tube fitting brands
Pressure Rating
Rated to the maximum working pressure of the mating FITOK tubing (fitting is not the pressure-limiting component)
Thread Type
NPT Thread
Tube Type
Fractional Tube
Max working pressure
6000 psig psig
Operating temperature
-28 to +204 °C °C
